MOSFET TP3205D N-Channel Enhancement Mosfet Topdiode
- 55V, 110A
- RDS (ON) <8.0mΩ @VGs=10V TYP: 7mΩ
- Advanced Planar stripe DMOS Technology
- Lead free product is acquired
- Excellent RDS (ON) AND Low Gate Charge
MOSFET TP3205D N-Channel Enhancement Mosfet Topdiode

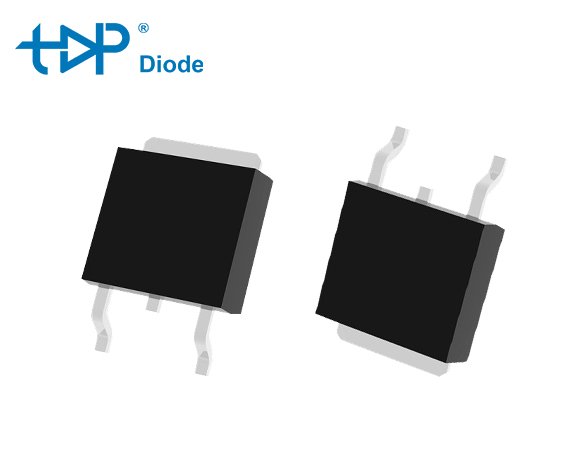

TP3205D N-Channel Enhancement Mosfet utilize advanced processing techniques to achieve extremely low onresistance per silicon area
The TO-263 is a surface mount power package capable of accommodating die sizes up to HEX-4. It provides the highest power capability and the lowest possible on-resistance in any existing surface
mount package.
TO-263 is suitable for high current applications because of its low internal connection resistance and can dissipate up to 2.0W in a typical surface mount application
Topdiode TP3205D is a nice alternative offer for Infineon IRF3205STRLPBF
MOSFET TP3205D N-Channel Enhancement Mosfet Topdiode DATA
- Tab
| ABSOLUTE MAXIMUM RATINGS (T =25℃ unless otherwise noted) | |||
| Parameter | Symbol | Value | Unit |
| Drain-Source Voltage | VDS | 55 | V |
| Gate-Source Voltage | VGS | ±20 | V |
| Continuous Drain Current (Ta =25℃) | ID | 110 | A |
| Avalanche Current (1) | IAS | 62 | A |
| Pulsed Drain Current(1) | IDM | 390 | A |
| Single Pulsed Avalanche Energy(2) | EAS | 484 | mJ |
| Repetitive Avalanche Energy(2) | EAR | 20 | mJ |
| Power Dissipation | PD | 200 | W |
| Thermal Resistance from Junction to Case | RθJC | 0.8 | ℃/W |
| Thermal Resistance from Junction to Ambient | RθJA | 62 | ℃/W |
| Junction Temperature | TJ | 175 | ℃ |
| Storage Temperature | TSTG | -55~ +175 | ℃ |
