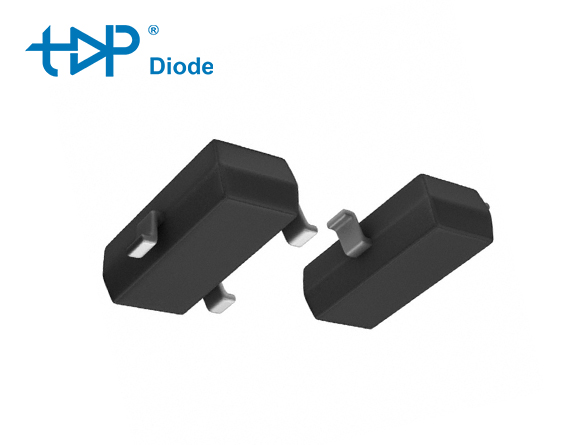

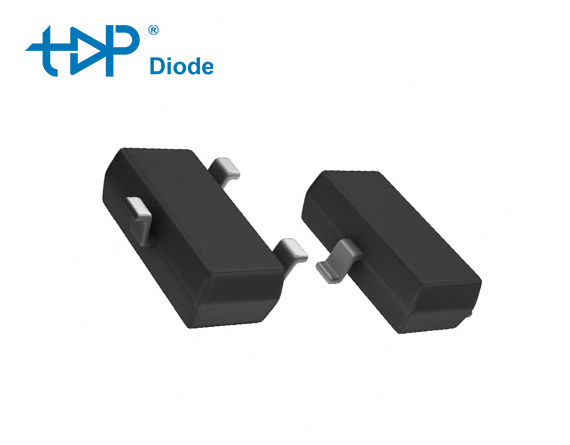

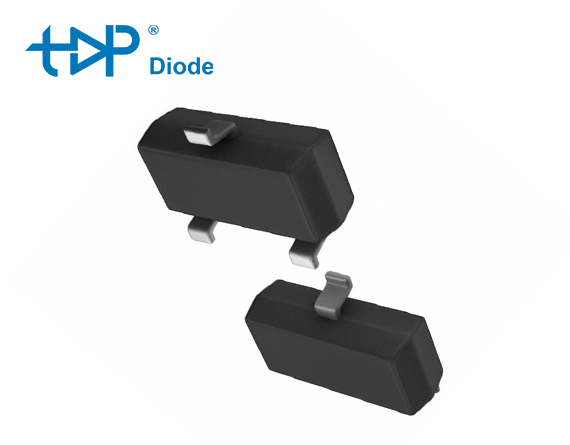

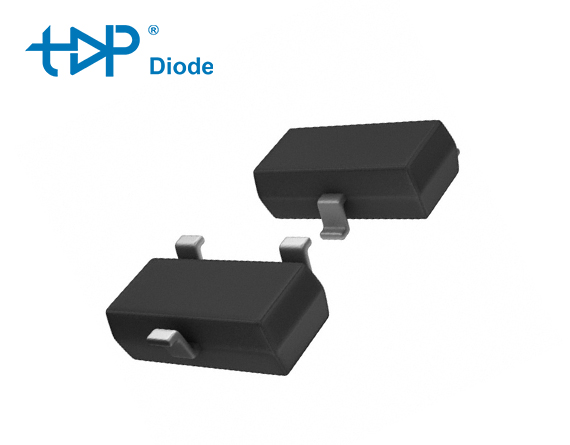

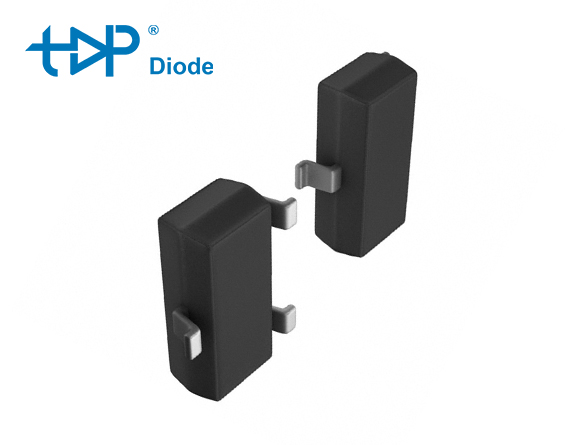

MOSFET SOT-23-3 N-Channel Enhancement TP3400A-Topdiode

  • 30V, 5.8A
  • RDS(ON)<26mΩ @VGS=10V TYP=18mΩ RDS(ON)<32mΩ @VGS=4.5V TYP=23mΩ
  • Advanced Trench Technology
  • Lead free product is acquired

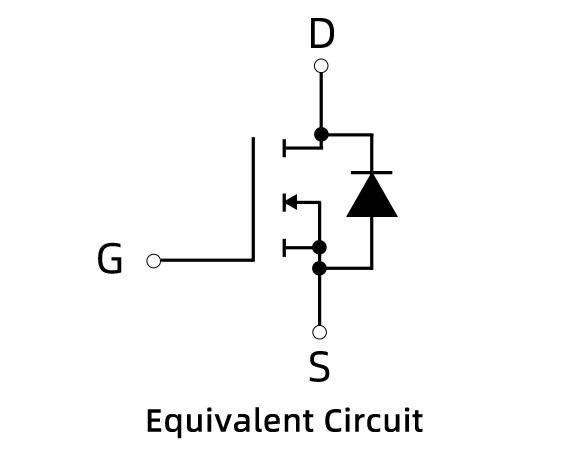

MOSFET SOT-23-3 N-Channel Enhancement TP3400A-Topdiode

Topdiode TP3400A can be used for amplification in your circuit. Its maximum power dissipation is 730 mW. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. This MOSFET transistor has a minimum operating temperature of -55 °C and a maximum of 150 °C. This N channel MOSFET transistor operates in enhancement mode.
Topdiode TP3400A is a nice alternative offer for On semi #NVTR4503N.

MOSFET SOT-23-3 N-Channel Enhancement TP3400A-Topdiode DATA

Paramete Symbol Value Unit
Drain-Source Voltage VDS 30 V
Gate-Source Voltage VGS ±12 V
Continuous Drain Current (Ta=25℃) lD 5.8 A
Continuous Drain Current (Ta=70℃) lD 3.8 A
Pulsed Drain Current IDM 23 A
Power Dissipation PD 1.36 W
Thermal Resistance from Junction to Ambient(4) RθJA 92 ℃/W
Junction Temperature TJ 150
Storage Temperature TSTG -55~+150

Topdiode Hot Selling Products (6)

Electric meter - Circuit

Topdiode MOSFET TP3404, TP3415, TP2310 Used on Smart Meters

Nowadays, electronic products are rapidly evolving, but they all rely on electricity. Household electricity meters are also important necessities for residential living. From traditional meters to the emergence of smart meters that meet new demands, the trend is towards precise measurement, low power consumption, and remote meter reading capabilities. Especially against the backdrop of carbon neutrality trends, saving energy and using clean energy are priorities for development. It is also an inevitable requirement for the long-term sustainable development of the country.

Topdiode Recommended Products: TP3404\TP3415\TP2310

Electricity meter - Scenario application

Topdiode Si MOSFET Applications

Inverter Appliance
370x460 Driver IC & IGBT ͼ2
Industrial Converters
370x460 Driver IC & IGBT ͼ 3
New Energy Vehicles
What is Si?

“Si” typically refers to silicon, which is a chemical element commonly used in semiconductor technology. Silicon is widely used in electronics, including integrated circuits (ICs), transistors, diodes, and solar cells, due to its unique semiconductor properties. It is the second most abundant element in the Earth’s crust and serves as the foundation for many modern technological advancements.

What is Si MOSFET?

A Si MOSFET, or Silicon MOSFET, is a type of transistor made from silicon. It operates by controlling the flow of current between the source and drain terminals using an electric field generated by the gate terminal. Si MOSFETs are widely used in electronics for their reliability, low cost, and compatibility with existing manufacturing processes. They are commonly found in integrated circuits (ICs) and power electronic systems, where they play a critical role in switching and amplifying signals efficiently.

What are Features of Si MOSFET?

Si MOSFETs offer features like high reliability, low cost, and compatibility with existing manufacturing processes. They provide efficient switching and amplification of signals in electronic devices due to their low on-resistance and fast switching speeds. Si MOSFETs are widely used in integrated circuits (ICs) and power electronic systems for their ability to handle high voltages and currents while minimizing power losses. Additionally, they exhibit excellent thermal stability and temperature performance, making them suitable for a wide range of applications in various industries.

What are Applications of Si MOSFET?

Si MOSFET is ideally suited for space-constrained automotive, industrial, and consumer applications such as robotic vacuum cleaners, TV sets, energy meter,outdoor power supply, Bluetooth headset mobile phone air conditioner, DC-DC converters LED lighting etc.

What are Benefits of Topdiode Si MOSFET?

Topdiode Si MOSFET could replace Infineon, On Semi, ROHM etc. with reliable quality, much less cost and lead-time. Our customers will benefits a lot by choosing Topdiode as their supplier.
