1200V 77A Silicon-carbide (SiC) Power MOSFET TPMW30N120C1P Topdiode (SCT3030KL)

  • Low on-resistance
  • Fast switching speed
  • Fast reverse recovery
  • Easy to parallel
  • Simple to drive
  • Pb-free lead plating ; RoHS compliant

Topdiode 1200V 77A Silicon-carbide (SiC) Power MOSFET TPMW30N120C1P (SCT3030KL)

TOPDIODE TPMW30N120C1P is a power MOSFET transistor manufactured by TOPDIODE. It is designed to handle high power applications. The MOSFET has a low on-resistance, making it ideal for use in power supply circuits, motor drives, and other high current applications. The TPMW30N120C1P is available in a TO-247 package and is RoHS compliant.

Topdiode TPMW30N120C1P is an alternative offer for ROHM SIC MOSFET SCT3030KL.

Topdiode 1200V 77A Silicon-carbide (SiC) Power MOSFET TPMW30N120C1P DATA

Topdiode PN TPMW30N120C1P
Description SIC Mos Single-N
Vds(50uA) 1200V
ID(A)Tc=25℃ 77A
VGS(V) -5/+20
max. RDon 50mΩ
Ciss(pF) 3579pF
Coss(pF) 233pF
QG(nC) 190nC
Package TO-247
Cross to Brand ROHM
Pin to Pin Cross P/N SCT3030KL

Topdiode Hot Selling Products (6)


Topdiode N Mosfet Used on Communications Switches & Routers

At present, through the soft switching technology of power supply, capacitive energy transmission is realized, which significantly improves the efficiency and power density of 48V to intermediate voltage, and greatly improves the cost of the overall power supply.
TOPDIODE Super Trench MOSFET series products can achieve high-frequency switching (low Rg), low switching loss (the best RDSon performance), low switching loss (excellent switching characteristics), and have improved body diode reverse recovery characteristics, making them more suitable for applications Based on soft switching technology, system EMC is greatly improved.

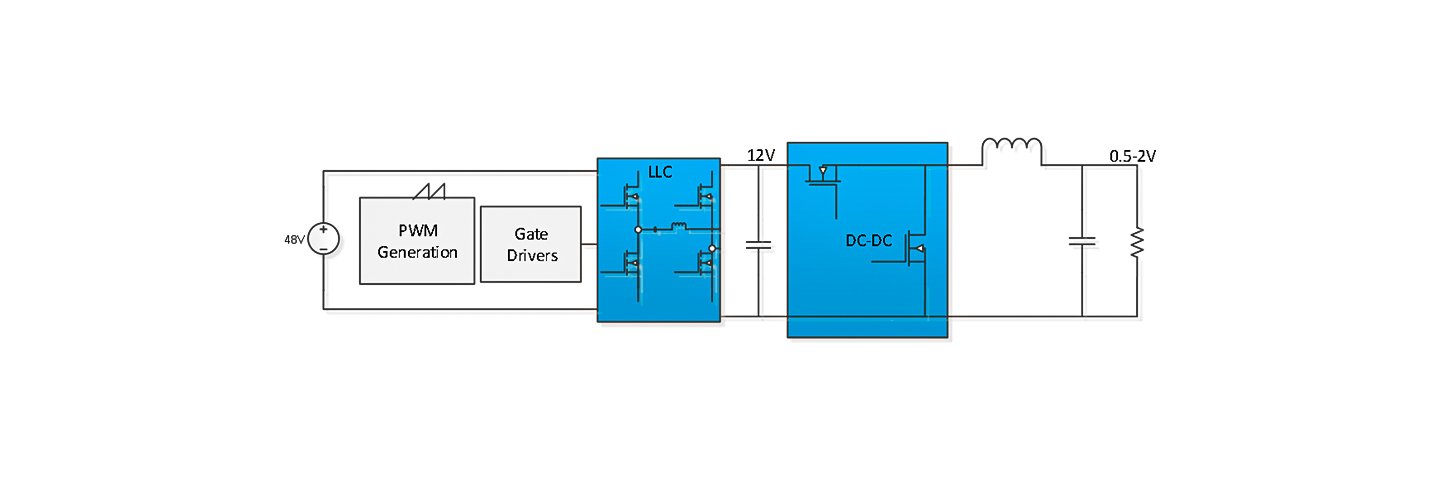

48V convert to 12V:
N-channel SGT-II MOSFET & N-channel SGT-I MOSFET:VDS=40V Ron@10V(max)=1mΩ-6.6mΩ package:DFN

12V convert to 0.5-2V MOS:TPP25T18GU 12-300V N MOSFET
N-channel SGT-II MOSFET & N-channel SGT-I MOSFET & N-channel Trench MOSFET:VDS=30V Ron@10V(max)=0.85mΩ-7.1mΩ

LLC: 500-1050V N MOSFET
SJ-III TF MOSFET:VDS=650V Ron@10V(max)=41mΩ-140mΩ

Communication 3- Switch

Topdiode Silicon-carbide (SiC) Power MOSFET Applications

Industrial Power Supplies
EV Charging
What is SiC?

Silicon carbide (SiC), a semiconductor compound consisting of silicon (Si) and carbon (C), belongs to the wide bandgap (WBG) family of materials. Its physical bond is very strong, giving the semiconductor a high mechanical, chemical and thermal stability. The wide band gap and high thermal stability allow SiC devices to be used at junction temperatures higher than those of silicon, even over 200°C. The main advantage offered by silicon carbide in power applications is its low drift region resistance, which is a key factor for high-voltage power devices.

What is Silicon Carbide (SiC) MOSFETs?

MOSFETs are metal–oxide–semiconductor field-effect transistors with insulated gates. These silicon carbide MOSFETs have a higher blocking voltage and higher thermal conductivity than silicon MOSFETs, despite having similar design elements. SiC power devices also have a lower state resistance and 10 times the breakdown strength of regular silicon. In general, Systems with SiC MOSFETs have better performance and increased efficiency when compared to MOSFETs made with silicon material.

What are Features of SiC MOSFET?

Main features of Topdiode SiC MOSFETs include:
Very high temperature handling capability (max. TJ = 200 °C)
Very high switching frequency operation and very low switching losses.
Low on-state resistance.

What are Applications of SiC MOSFET?

Highly reliable products with high performance and robustness
Different solutions able to cover a wide range of applications
Home appliances
Photovoltaic Industrial drives
Power supply / ups Energy storage
Charging station
Rail traction
Smart Power
Grid Wind mills

What are Benefits of Topdiode SiC MOSFET?

There are many advantages to choosing SiC MOSFETs over silicon MOSFETs, such as higher switching frequencies. High-temperature development is also not a concern when using SiC MOSFET modules because these devices can operate efficiently even in high heat.

Additionally, with SiC MOSFETs, you benefit from a more compact product size because all components (inductors, filters, etc.) are smaller.

Also Topdiode SiC MOSFET could replace Infineon, On Semi, ROHM etc. with reliable quality, much less cost and lead-time. Our customers will benefits a lot by choosing us as their supplier.
