What is the difference between MOSFETs and IGBTs?



MOSFETs and IGBTs are both types of power electronic devices used for switching applications. However, there are some key differences between them.


  1. Structure: MOSFET stands for Metal-Oxide-Semiconductor Field-Effect Transistor, while IGBT stands for Insulated Gate Bipolar Transistor. MOSFETs are unipolar devices that use only majority charge carriers (electrons or holes) to conduct current, whereas IGBTs are bipolar devices that utilize both majority and minority charge carriers (electrons and holes).


  1. Voltage handling capability: Generally, IGBTs have a higher voltage handling capacity compared to MOSFETs. They can handle high voltages in the range of hundreds to thousands of volts, making them suitable for high-power applications such as motor drives and inverters. On the other hand, MOSFETs typically have lower voltage ratings in the range of tens to hundreds of volts.


  1. Switching speed: MOSFETs generally have faster switching speeds than IGBTs due to their smaller size and simpler structure. This makes them more suitable for high-frequency applications where fast switching is required.


  1. Conduction losses: In terms of conduction losses during operation, MOSFETs tend to have lower losses compared to IGBTs because they exhibit lower on-state resistance (Rds(on)). As a result, they offer better efficiency at low-to-medium power levels.


  1. Cost: In general, MOSFET technology is considered more mature and widely available than IGBT technology which can make it more cost-effective in certain cases. It’s important to note that the choice between using a MOSFET or an IGBT depends on various factors including application requirements such as voltage rating, current rating, switching frequency, cost considerations as well as design constraints like space limitations and thermal management capabilities.

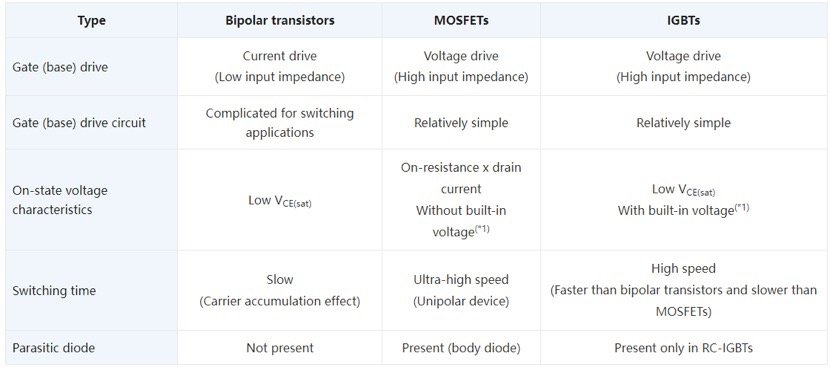

Comparison of the performance of different types of transistors
