10N80 800V Power MOSFET – Reliable High-Voltage Switching Solution
In modern power electronics, selecting a reliable and efficient high-voltage switching device is essential for ensuring system stability and energy efficiency. The 10N80 Series N-Channel Power MOSFET is designed to meet the demands of high-voltage switching applications such as power supplies, motor control, LED drivers, and industrial equipment.
Advanced DMOS Technology
The 10N80 series adopts advanced proprietary planar stripe DMOS technology, which provides excellent electrical performance and reliability. This technology enables the device to achieve a low on-resistance while maintaining strong switching capability, making it suitable for high-efficiency power conversion systems.
With optimized internal structure and rugged design, the device delivers stable operation even under demanding conditions, helping engineers improve system efficiency and reduce power losses.
Key Features of 10N80 Power MOSFET
The 10N80 MOSFET offers several important features that make it suitable for high-performance power applications:
High Drain-Source Voltage: 800V capability for high-voltage circuits
Low On-Resistance: ≤1.1Ω @ VGS = 10V
Fast Switching Performance: optimized for PWM and high-frequency switching
High Avalanche Energy Capability: enhanced reliability in inductive loads
Low Gate Charge: helps reduce switching losses
Improved dv/dt Capability: stable operation in dynamic environments
These features help designers build efficient and reliable power conversion systems.
Excellent Switching Characteristics
Efficient switching performance is essential for modern power electronics. The 10N80 series provides:
Low gate charge
Fast switching capability
Improved dv/dt ruggedness
High reliability under dynamic switching conditions
These characteristics help reduce switching losses and improve the overall efficiency of switching power supplies and PWM circuits.
Flexible Packaging Options

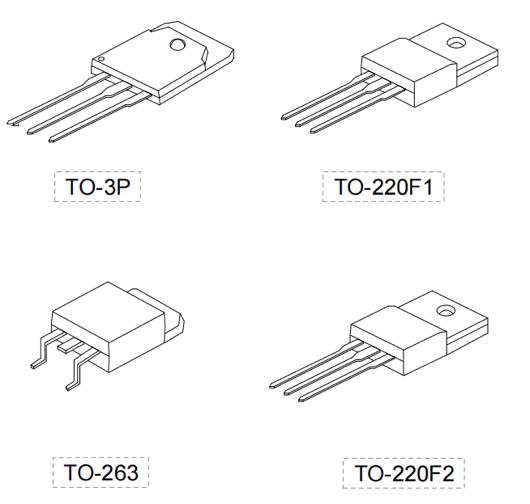

The device is available in TO-220F1, TO-220F2, TO-3P, and TO-263 packages, allowing designers to choose the best thermal solution for their power systems.
Ideal for Multiple Power Applications
The 10N80 MOSFET is commonly used in:
Switching Power Supplies (SMPS)
LED Lighting Drivers
Industrial Power Systems
Motor Control Circuits
Power Conversion Equipment
Its robust design ensures stable operation even in demanding environments.
Why Choose the 10N80 MOSFET?
The 10N80 MOSFET combines high-voltage capability with excellent switching performance:
✔ 800V voltage rating for high-voltage power circuits
✔ Low RDS(on) to reduce conduction losses
✔ Fast switching characteristics for improved system efficiency
✔ High avalanche energy tolerance for inductive loads
✔ Multiple package options for flexible system design
These advantages make it ideal for engineers looking for reliable power switching
Looking for a Reliable 10N80 MOSFET Supplier?
If you are sourcing 800V Power MOSFETs for power supply, industrial, or lighting applications, we can support:
Stable supply
Competitive pricing
Technical support
Feel free to contact us for datasheets, samples, or quotation.
