Replacing UTC 50N06G with Topdiode’s TP50N06K MOSFET
In the dynamic world of electronics design and manufacturing, component sourcing is a constant challenge. Supply chain disruptions, cost pressures, and the need for reliable performance demand a robust second-source strategy. A common query among design and procurement engineers is: “Can we find a reliable, high-performance, and cost-effective alternative to the UTC 50N06G MOSFET?”
The answer is a definitive yes. Topdiode’s TP50N06K is not just a pin-to-pin compatible substitute; it is a superior-performance N-Channel MOSFET engineered to replace the UTC 50N06G seamlessly, often enhancing the overall efficiency and reliability of your end application.
Understanding the Core Component: The 50N06 MOSFET
First, let’s establish a baseline. The “50N06” designation is key:
- 50A: Represents a continuous drain current (I<sub>D</sub>) of 50 Amps.
- 60V: Indicates a Drain-Source voltage (V<sub>DSS</sub>) of 60 Volts.
- N-Channel: Signifies the type of MOSFET.
This specification makes it a workhorse power transistor ideal for a wide range of applications, including:
- Switch Mode Power Supplies (SMPS)
- DC-DC Converters
- Motor Control Circuits (e.g., for automotive fans, power tools)
- Power Management Systems
- Low-voltage drive and solenoid control
Direct Comparison: TP50N06K vs. UTC 50N06G

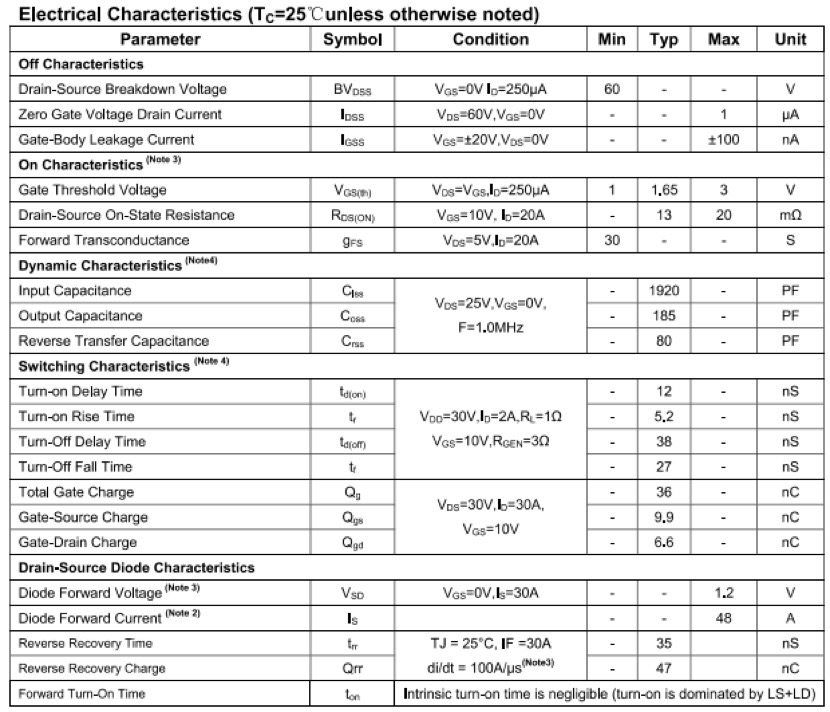

Topdiode TP50N06K Electrical Characteristics
Why Topdiode’s TP50N06K is the Smarter Choice
Superior Manufacturing and Consistency:
Topdiode employs advanced manufacturing processes and rigorous quality control protocols. Every TP50N06K is built to deliver consistent, batch-to-batch performance. This reliability is crucial for high-volume production where a single component failure can lead to significant downtime and reputational damage.
Enhanced Efficiency and Thermal Performance:
While the maximum R<sub>DS(ON)</sub> is identical, Topdiode’s focus on process optimization often results in a lower typical on-resistance. A lower R<sub>DS(ON)</sub> translates directly to reduced conduction losses. This means the MOSFET generates less heat during operation, leading to:
- Higher overall system efficiency.
- Reduced thermal stress on the component and the PCB.
- Potential for smaller heat sinks, lowering both system cost and size.
Robustness and Reliability:
The TP50N06K is designed to withstand the rigors of real-world applications. It features excellent avalanche ruggedness and a wide Safe Operating Area (SOA), ensuring stable performance even under stressful switching conditions or transient voltage spikes.
Supply Chain Stability and Cost-Effectiveness:
As a dedicated manufacturer, Topdiode provides a stable and scalable supply chain. By qualifying the TP50N06K as a second source or primary component, you mitigate the risk of shortages and price volatility associated with single-source suppliers like UTC. This strategic move ensures production continuity and often results in significant cost savings without compromising on quality.
Seamless Drop-In Replacement:
The TP50N06K shares the same TO-220 footprint and pinout (Gate, Drain, Source) as the UTC 50N06G. No board re-layout or circuit redesign is necessary. You can directly replace the UTC part with the Topdiode part on your PCB and expect immediate, trouble-free operation.
Application Scenarios Where TP50N06K Excels
- Power switching application.
- LED back-lighting
- Uninterruptible power supply.
In the search for a reliable alternative to the UTC 50N06G, Topdiode’s TP50N06K stands out as more than just a replacement—it is a strategic upgrade. It offers identical core specifications with the potential for better efficiency, enhanced reliability, and guaranteed supply, all at a competitive price.
