TVS Diode: Complete Protection Guide for Electronic Circuits

1 Introduction: What is a TVS Diode

In today’s era of increasingly miniaturized and complex electronic devices, Transient Voltage Suppression (TVS) diodes have become indispensable components in the protection of electronic systems. Transient voltage threats—such as Electrostatic Discharge (ESD), Electrical Fast Transients (EFT), and induced lightning strikes—can cause catastrophic damage to sensitive electronic components within microseconds, leading to equipment failure or even safety hazards.

TVS diodes are semiconductor devices specifically designed to protect electronic circuits from these transient voltage threats. As the name suggests, they effectively suppress transient voltages by diverting excess energy and limiting the voltage across the protected device. According to the latest market data, the global TVS diode market is projected to grow from $2.44 billion in 2025 to $3.45 billion by 2033, with a compound annual growth rate of 4.37%.

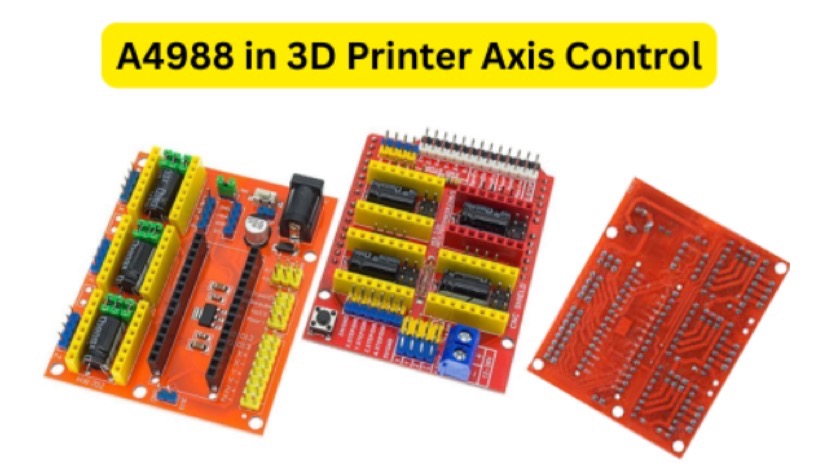

The A4988 extruder driver controls filament feed through constant torque maintenance during retraction and advance, avoiding under-extrusion with filament speed changes. For the X Y Z axis the driver synchronizes the belt-driven carriages to remain at a constant torque. The driver uses 1/16 microstepping to reduce banding artifacts on curved surfaces. 3D printer stepper control allows the drivers to use fixed off-time chopping to control current spikes during acceleration, extending motor life when the current is continuously 0.5 to 1 A loads.

2 Working Principle of TVS Diodes

2.1 Basic Concepts

TVS diodes are essentially specially designed avalanche breakdown diodes, specifically used for handling transient overvoltage events. Their working principle is based on the avalanche breakdown characteristics of semiconductor PN junctions. Under normal operating conditions, TVS diodes present a high impedance state, barely affecting the normal operation of the protected circuit. When the applied voltage exceeds its preset breakdown voltage (V_BR), the diode rapidly enters a conduction state, diverting excess current while maintaining its terminal voltage at a safe level (known as the clamping voltage V_C).

TVS diodes need to satisfy three key characteristics to work effectively:

• Fast response time: TVS diodes typically respond at the sub-nanosecond level (<1ns), which is crucial for capturing extremely brief voltage spikes.
• High surge current capability: Ability to withstand large currents (typically from a few amperes to hundreds of amperes) for short periods without degradation or damage.
• Precise clamping characteristics: Maintaining a relatively fixed voltage in the conducting state to ensure the protected circuit is not damaged.

2.2 Internal Structure

Structurally, TVS diodes differ fundamentally from standard PN junction diodes. They typically employ larger chip areas and thicker epitaxial layers to withstand higher transient power. The typical structure of TVS diodes includes:

• Unidirectional TVS: Basically a large-area PN structure, optimized for single-direction overvoltage protection
• Bidirectional TVS: Usually consisting of two back-to-back unidirectional TVS structures, providing bidirectional protection

The electrical characteristics of TVS diodes are controlled by their semiconductor doping concentration and junction area, thereby achieving the desired breakdown voltage and clamping voltage.

2.3 Protection Mechanism

The protection mechanism of TVS diodes can be broken down into the following stages:

1. Normal Operating State: When the circuit operates within its nominal voltage range, the TVS diode is in a high impedance state with minimal leakage current (typically in the microampere range or even lower).
2. Transient Event Occurrence: When a transient voltage appears and reaches the reverse breakdown voltage (V_BR) of the TVS diode, the diode quickly enters the avalanche breakdown state.
3. Current Diversion: In the conduction state, the TVS diode diverts excess transient current while maintaining its terminal voltage at the clamping voltage (V_C) level.
4. Energy Absorption: The TVS diode absorbs the energy from the transient event and dissipates it as heat.
5. Return to Normal: After the transient event ends, the TVS diode automatically returns to its high impedance state without requiring reset or replacement.

3. Professional Tip

The response speed of TVS diodes (typically <1ns) is much faster than traditional protection devices like fuses or varistors (typically at the microsecond level). This makes them particularly suitable for protecting modern semiconductor devices that are extremely sensitive to transient events, such as MOSFETs, microcontrollers, and communication interfaces.
