Advanced ESD Protection for High-Speed Interfaces: Technical Analysis of the Topdiode ESDBL5V0HP
As semiconductor manufacturing processes continue to advance, integrated circuits are becoming more compact and sophisticated, while their tolerance to high-voltage transients is steadily decreasing. In modern electronic systems, even a few kilovolts of electrostatic discharge (ESD)—lasting only a few nanoseconds—can instantly destroy sensitive IC input structures, causing irreversible physical damage. As a result, ESD remains one of the most significant threats to the long-term reliability of smartphones, computers, automotive electronics, and communication equipment.
To address this challenge, Topdiode’s ESDBL5V0HP ultra-miniature ESD protection diode offers a high-performance solution designed for today’s high-speed, high-density electronic systems. It is a direct replacement for Nexperia’s PESD5V0U1BL,315 and provides key advantages in capacitance, clamping performance, reliability, and packaging efficiency.
Ultra-Low Capacitance: The Foundation of Signal Integrity
A major advantage of the ESDBL5V0HP is its extremely low diode capacitance. With a typical value of only 0.95 pF, it ensures minimal loading on high-speed signal lines. For interfaces such as USB, Ethernet, HDMI, and other multi-gigabit differential links, excess capacitance introduces delays, waveform distortion, and eye-diagram degradation, ultimately increasing bit-error rates or causing link instability.
Because of its 0.95 pF capacitance, the ESDBL5V0HP is ideally suited for protecting Mbps- to Gbps-level communication interfaces while maintaining clean signal transitions and stable data throughput.
Low Clamping Voltage: Fast and Effective ESD Suppression
When an ESD event occurs, a protection device must respond instantly and clamp the transient voltage to a safe level. The clamping voltage (V<sub>CL</sub>) represents the maximum voltage passed to the protected IC after the device activates.
Topdiode’s ESDBL5V0HP features a typical clamping voltage of just 8 V with a nanosecond-level response time. This ensures that even high-energy ESD pulses are rapidly diverted to ground before reaching downstream components. It provides critical safety margins for 3.3 V and 5 V control ICs, transceivers, and logic devices operating in sensitive environments.
High Reliability and Ultra-Low Leakage Current
The ESDBL5V0HP meets the highest industry standard, IEC 61000-4-2 Level 4, with ±8 kV contact discharge capability. This ensures excellent robustness in environments where ESD exposure is frequent or unavoidable.
Furthermore, its leakage current under normal operating conditions is exceptionally low—typically around 1 nA. This makes it ideal for battery-powered devices where minimizing standby power consumption is crucial, such as smartphones, wearables, IoT modules, and portable instrumentation.
Packaging and Assembly Advantages for Modern Electronics
The ESDBL5V0HP series uses ultra-small SMD plastic packages such as DFN1006-2H or SOD882D, with compact external dimensions of only 1.0 × 0.5 mm. Such miniature footprints are essential for today’s thin, lightweight devices, especially true-wireless earbuds, smartwatches, compact sensors, and space-restricted PCBs.
Additionally, the no-lead (leadless) package features visible side-wettable flanks that allow automatic optical inspection (AOI) systems to easily verify solder joints. This significantly improves mass-production yield rates and reduces manufacturing costs.
Some versions in the series also include unidirectional protection options, enabling optimized clamping behavior for power rails or single-polarity signal lines.
Broad Application Coverage Across Industries
Thanks to its high performance and low capacitance, the ESDBL5V0HP—or its Nexperia equivalent—is widely used in the following sectors:
Computers and peripherals
Audio and video equipment
Smartphones and accessories
10/100/1000 Mbps Ethernet
Communication systems
Portable and battery-powered devices
SIM card protection
USB, HDMI, and FireWire ports
High-speed differential data lines
It has become a standard ESD protection choice for engineers designing modern high-speed interfaces.

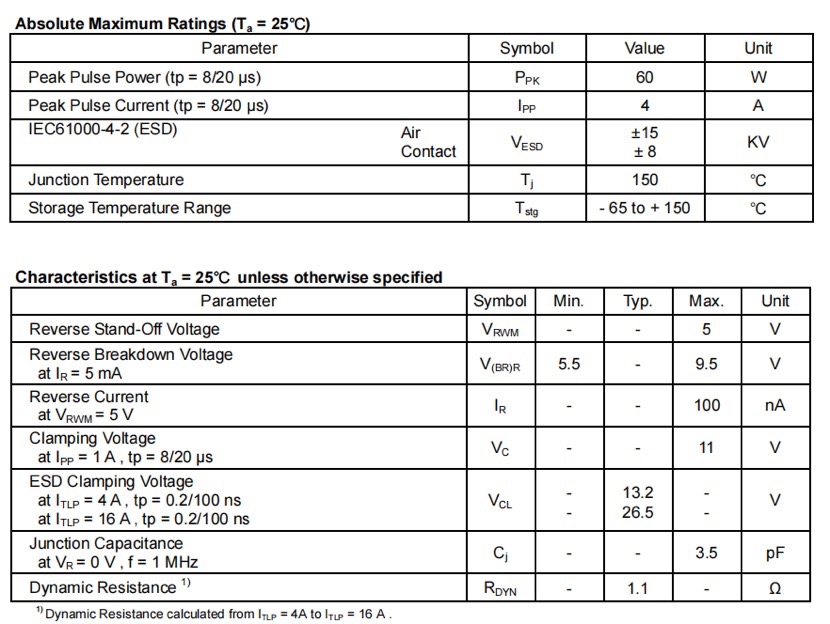

Package Outline
Frequently Asked Questions (FAQ)
- What is the main function of this device?
To protect a single data line from ESD and other transient voltage events. - Is it unidirectional or bidirectional?
The ESDBL5V0HP is a bidirectional device capable of handling both positive and negative ESD events. - What are its key technical advantages?
Ultra-low capacitance (0.95 pF), fast response, low clamping voltage, and miniature packaging. - What is the physical size?
DFN1006-2H, 1.0 × 0.6 mm. - What is the standard working voltage?
A reverse standoff voltage of 5.0 V, making it suitable for 3.3 V and 5 V systems. - What is its ESD rating?
IEC 61000-4-2 Level 4, capable of ±8 kV contact discharge. - What interfaces does it protect?
USB, HDMI, Gigabit Ethernet, high-speed differential pairs, SIM interfaces, and more.
Topdiode’s ESDBL5V0HP combines ultra-low capacitance, rapid response time, low clamping voltage, and advanced miniature packaging to deliver superior protection for high-speed data interfaces. As a fully compatible replacement for Nexperia’s PESD5V0U1BL,315, it supports the growing demand for reliable, low-power, and space-efficient ESD protection in modern electronic devices. Its robust performance and production-friendly design make it an excellent choice for engineers seeking high-quality ESD protection solutions.
