Bridge rectifier KBPC3510
Product Overview
A bridge rectifier is an arrangement of four or more diodes in a bridge circuit configuration which provides the same output polarity for either input polarity. It is used for converting an alternating current (AC) input into a direct current (DC) output. A bridge rectifier provides full-wave rectification from a two-wire AC input, therefore resulting in lower weight and cost when compared to a rectifier with a 3-wire input from a transformer with a center-tapped secondary winding.
The most common sizes for maximum average rectified current are 1A, 1.5 A, 4 A, 25 A and 35 A. Topdiode has a full selection of bridge rectifier, both through-hole type and SMD bridge rectifier.
Function of Bridge rectifier KBPC3510
The function of a rectifier bridge is to convert alternating current into direct current.
- First, convert AC to DC
- By stabilizing the output through a capacitor, the capacitor can be charged, and the final output voltage is a signal with minimal fluctuations
Packaging of rectifier bridge diodes
There are four types of rectifier bridge packaging: square bridge, flat bridge, round bridge, and SMD MINI bridge
* The main packaging of square includes: BR3, BR6, BR8, GBPC, KBPC, KBPC-W, GBPC-W, MT-35 (three-phase bridge);
* The main packaging of the flat bridge includes: KBP, KBL, KBU, KBJ, GBU, GBJ, D3K;
* The main packaging of the round bridge includes: WOB, WOM, RB-1;
* The main packaging of the SMD MINI bridge includes BDS, MBS, MBF, and ABS.
Features of KBPC/BR15/25/35/50 SERIES
The following introduces the features of KBPC/BR15/25/35/50 SERIES
*Surge overload 200-400 Amperes peak
*Low forward voltage drop
*Mounting Position:Any
*Electrically isolated base-1800 Volts*Solderable 0.25″ FASTON terminals

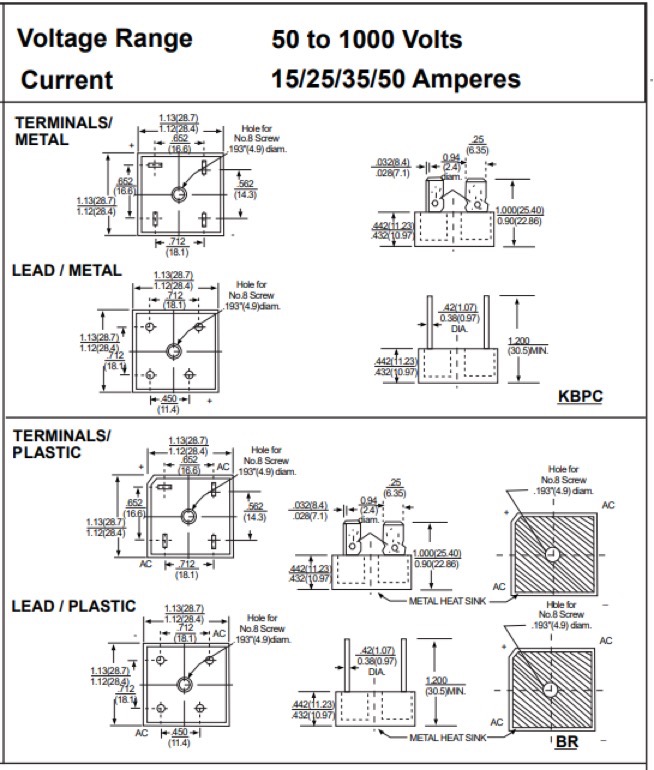

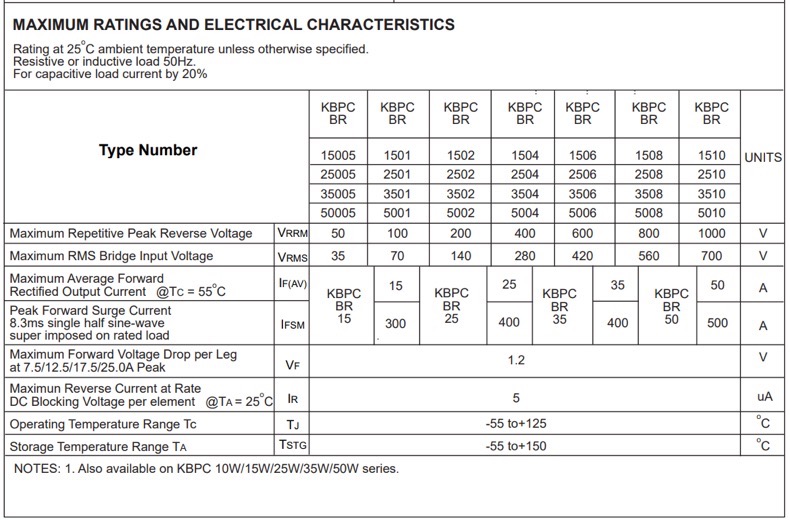

MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS

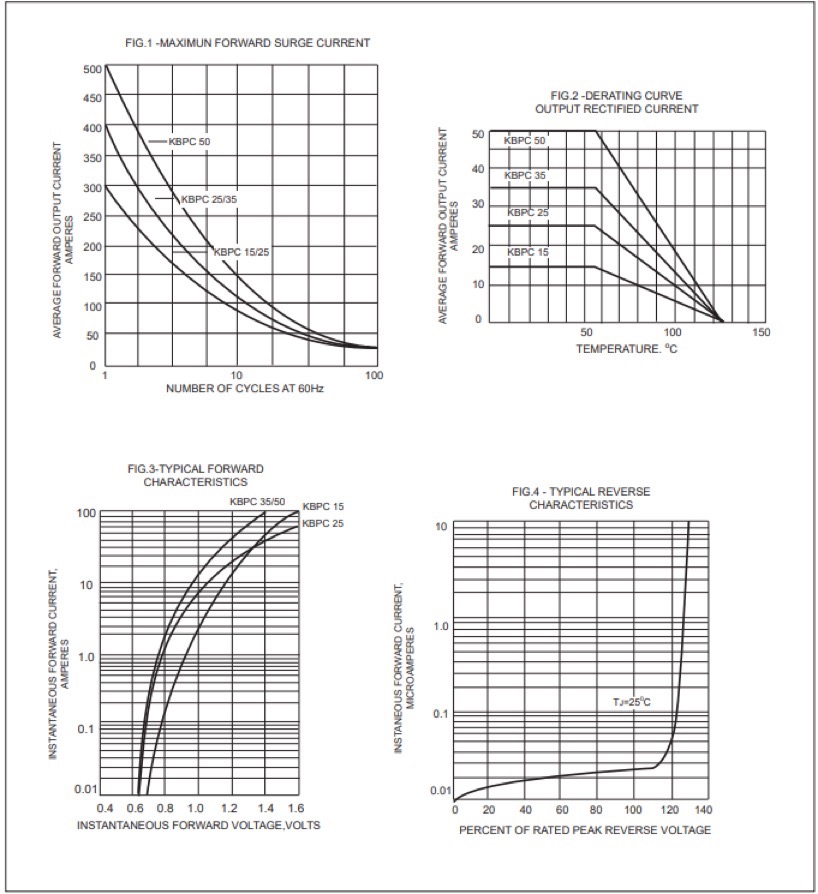

RATING AND CHARACTERISTIC CURVESKBPC/BR 15/25/35/50 SERIES
The following introduces the features of KBPC3510:
KBPC3501 is a widely used single-phase rectifier bridge used to convert alternating current into direct current. It plays an important role in various application scenarios such as power adapters, household appliances, industrial equipment, etc., such as microwave ovens, rice cookers, washing machines, motor control systems, uninterruptible power supplies, etc
2、 Parameter characteristics:
* Current capability: The maximum average rectified current of KBPC3501 is 35A, which means it can handle applications with high current requirements and is suitable for devices and systems that require high current.
* Reverse voltage: The maximum reverse repetitive peak voltage of KBPC3501 is 100V, which allows it to operate in higher voltage environments, ensuring stable operation of the equipment even at high voltages.
* Forward voltage drop: The forward voltage drop of KBPC3501 is usually between 1.1V and 1.2V. This feature reduces energy loss and improves rectification efficiency in the efficient rectification process.
*Working temperature range: KBPC3501 has a wide working temperature range, typically between -55 ℃ and+150 ℃. This enables it to operate normally in various harsh environments, ensuring the reliability of the equipment.
*Packaging form: KBPC3501 adopts a standard square packaging for easy installation and heat dissipation. Its four pin design makes the installation process simple and can effectively dissipate heat, extending the service life
Application
Household appliances: KBPC3501 is commonly used in power rectifier circuits for household appliances such as microwave ovens, rice cookers, and washing machines. These appliances typically require converting alternating current to direct current to drive internal circuits and components, and KBPC3501 is used for this rectification process.
Industrial equipment: In the industrial field, KBPC3501 is widely used in various industrial control equipment and power modules. For example, in motor control systems, frequency converters, and uninterruptible power supplies (UPS), KBPC3501 can efficiently convert AC power to DC power, ensuring stable operation of the equipment.
Electric tools: Many electric tools such as drills and chainsaws also use KBPC3501. These tools require the conversion of externally provided AC power to DC power in order to drive DC motors, and KBPC3501 plays a critical role in this process.
Communication equipment: KBPC3501 is widely used in communication equipment, especially in power modules for communication base stations that require high reliability and stability. It can provide stable DC power supply to ensure the normal operation of communication equipment.
Power adapters and chargers: KBPC3501 is also commonly used in various power adapters and chargers. These devices typically require the conversion of alternating current to direct current in order to provide stable power input for various electronic devices, and KBPC3501 plays an important role in these conversion processes.
Topdiode has competitive prices and shorter lead times compared to other brands. Topdiode services are designed to meet the needs of customers seeking cost savings with faster project timelines.

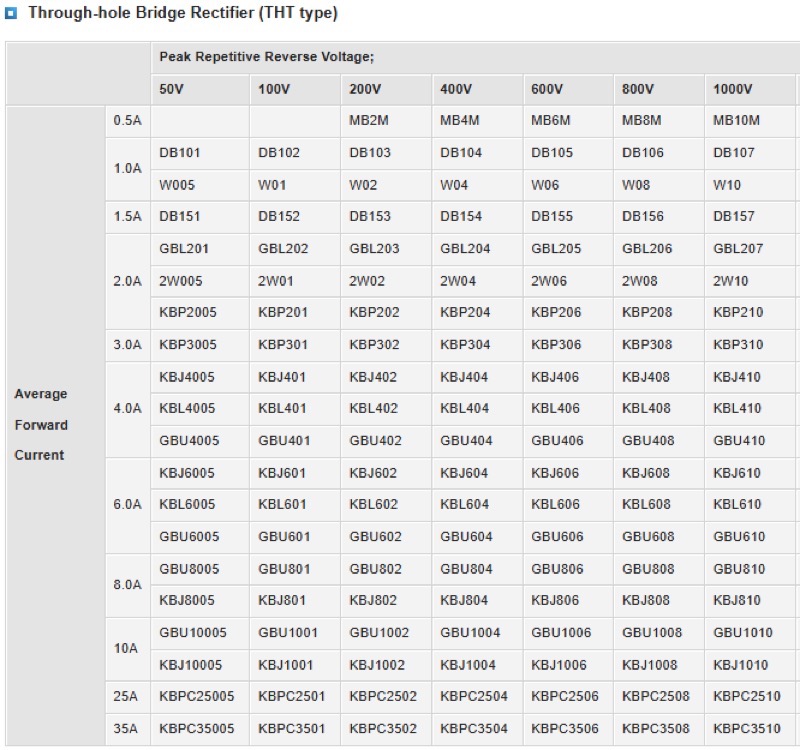

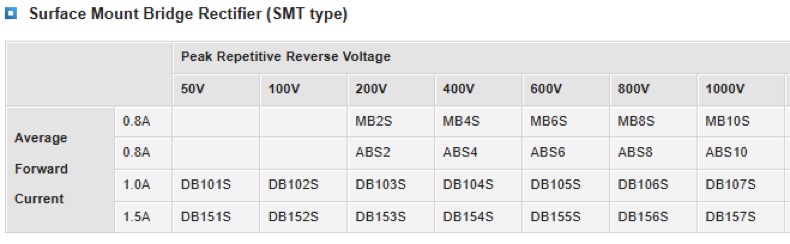

We can offer the following rectifier bridge
