BSS123 MOSFET: A Comprehensive Guide to Specifications, Applications, and Sourcing a High-Quality Replacement
In the intricate world of electronic design, few components are as ubiquitous and critical as the MOSFET (Metal-Oxide-Semiconductor Field-Effect Transistor). Among the vast array of options, the BSS123 stands out as a fundamental building block for low-power switching applications. As a global manufacturer of electronic component alternatives, we understand that sourcing reliable, pin-to-pin compatible replacements is paramount for maintaining production continuity and optimizing supply chains. This article delves deep into the BSS123, exploring its key characteristics, common applications, and how our high-quality BSS123 serves as a perfect functional equivalent to the Diodes Inc. BSS123.
Understanding the BSS123 N-Channel MOSFET
The BSS123 is a popular N-channel enhancement mode MOSFET housed in a small SOT-23 package. Its popularity stems from an excellent balance of performance, size, and cost-effectiveness, making it a go-to choice for a multitude of circuit functions where efficient switching of low-voltage, low-current signals is required.
These specifications make the BSS123 ideal for interfacing between low-voltage logic circuits (like 3.3V or 5V microcontrollers) and other higher-voltage circuit sections.
Common Applications of the BSS123 MOSFET
The BSS123’s versatility allows it to be used in a wide range of electronic devices. Some of its most common applications include:
- Load Switching: The primary use is as a solid-state switch to turn other components or circuits on and off using a logic-level signal from a microcontroller (MCU) or GPIO pin.
- Driver Stages: It is often used to drive larger MOSFETs, transistors, or other components like small relays, LEDs, or lamps that require more current than an MCU pin can provide.
- Signal Level Shifting: Its fast switching speeds make it suitable for level shifting circuits, converting signals from one voltage domain (e.g., 3.3V) to another (e.g., 5V).
- Power Management Circuits: Found in battery-operated devices for power gating, helping to conserve energy by cutting power to unused sections of a PCB.
- Consumer Electronics: You will find the BSS123 in everything from smartphones and tablets to televisions, computer peripherals, and IoT devices.
The Need for a Reliable Replacement: Diodes Inc. BSS123 Equivalent
Diodes Incorporated is a well-respected and major manufacturer of the BSS123. However, modern electronics manufacturing faces constant challenges:
- Supply Chain Disruptions: Allocations and long lead times can halt production.
- Cost Pressures: Needs to reduce Bill of Materials (BOM) costs without sacrificing quality.
- Second Sourcing: Risk mitigation requires qualifying multiple suppliers for critical components.
Therefore, identifying a drop-in replacement that is electrically and mechanically identical is not just a convenience—it’s a business necessity.
Our BSS123: A Direct, High-Fidelity Replacement for Diodes Inc. BSS123
We are proud to offer a BSS123 MOSFET that is engineered to be a 100% pin-to-pin and function-for-function equivalent to the Diodes Inc. BSS123. Our commitment to quality and precision manufacturing ensures that you can integrate our component into your designs with absolute confidence, requiring no schematic or PCB layout modifications.
Why Our BSS123 is the Ideal Choice:

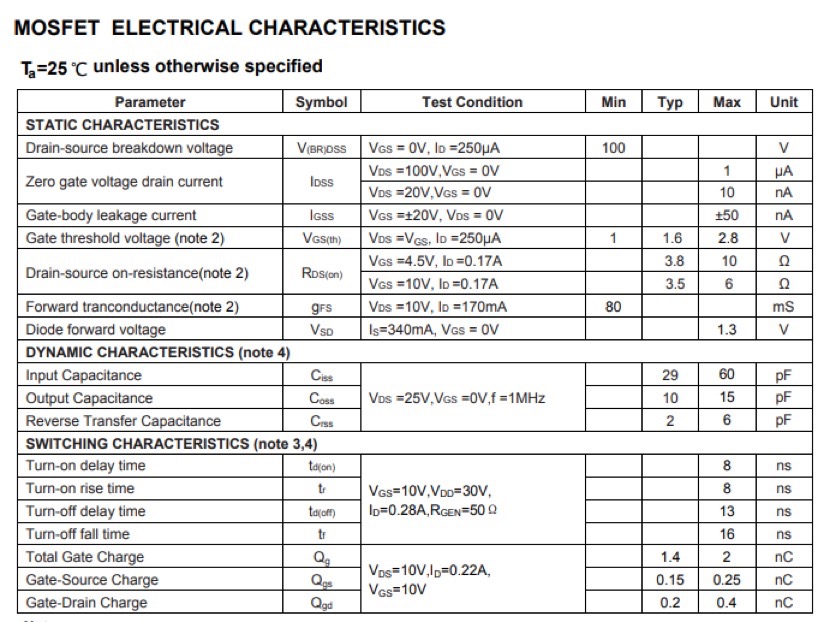

- Full Electrical Compatibility: Our BSS123 matches all key specifications, including:
- Vds: 100V
- Id: 170mA
- Rds(on): < 6Ω (ensuring low conduction losses and high efficiency)
- Vgs(th): Tightly controlled to match the standard threshold range.
This ensures identical performance in your circuits for switching, driving, and level-shifting applications.
- Mechanical Compatibility: Our component is housed in the standard SOT-23 package, ensuring perfect footprint compatibility on your PCB. This eliminates any need for redesign or rework.
- Rigorous Quality Assurance: We understand that reliability is non-negotiable. Our BSS123 MOSFETs are manufactured in IATF 16949 certified facilities and undergo stringent testing protocols. We adhere to international standards to ensure long-term performance, stability, and robustness against ESD and other environmental stressors.
- Supply Chain Stability & Cost-Effectiveness: As a dedicated manufacturer of alternative components, we provide a reliable and agile supply chain, helping you avoid shortages and long wait times. We offer competitive pricing, enabling you to reduce costs without compromising on the quality or performance of your end products.
Implementation Considerations When Using BSS123
For optimal performance when using any BSS123, including our replacement, consider these design tips:
- Gate Driving: While the BSS123 is logic-level compatible, ensuring a strong drive signal (Vgs >= 4.5V) will minimize Rds(on) and improve efficiency.
- Flyback Protection: When driving inductive loads (like small relays or motors), always use a protection diode (flyback diode) across the load to suppress voltage spikes that could damage the MOSFET.
- PCB Layout: Keep gate drive paths short to minimize parasitic inductance, which can lead to ringing and potential overshoot.
Conclusion: Your Trusted Source for MOSFET Replacements
The BSS123 is a cornerstone component in modern electronics design. When your supply chain for the Diodes Inc. version faces constraints, you need a alternative you can trust. Our BSS123 MOSFET is meticulously engineered to be a direct, drop-in replacement, offering identical electrical performance, mechanical fit, and unwavering reliability.
We are more than just a supplier; we are a strategic partner dedicated to supporting your manufacturing resilience. By qualifying our BSS123 as a second source, you future-proof your production against market volatility.
