BSS138 MOSFET – A High-Performance Alternative to On Semi
In the rapidly evolving world of electronics design, finding reliable, high-quality, and cost-effective components is crucial for maintaining a competitive edge. MOSFETs, particularly small-signal transistors like the BSS138, are fundamental building blocks in countless applications, from power management to signal switching. However, supply chain disruptions and sourcing challenges often necessitate finding alternative suppliers for popular parts.
At Topdiode, we specialize in manufacturing pin-to-pin and parameter-to-parameter compatible electronic components. This article delves into the details of the BSS138 MOSFET and presents our own high-quality alternative, designed to seamlessly replace the On Semiconductor BSS138 without compromising on performance or reliability.
Understanding the BSS138 MOSFET

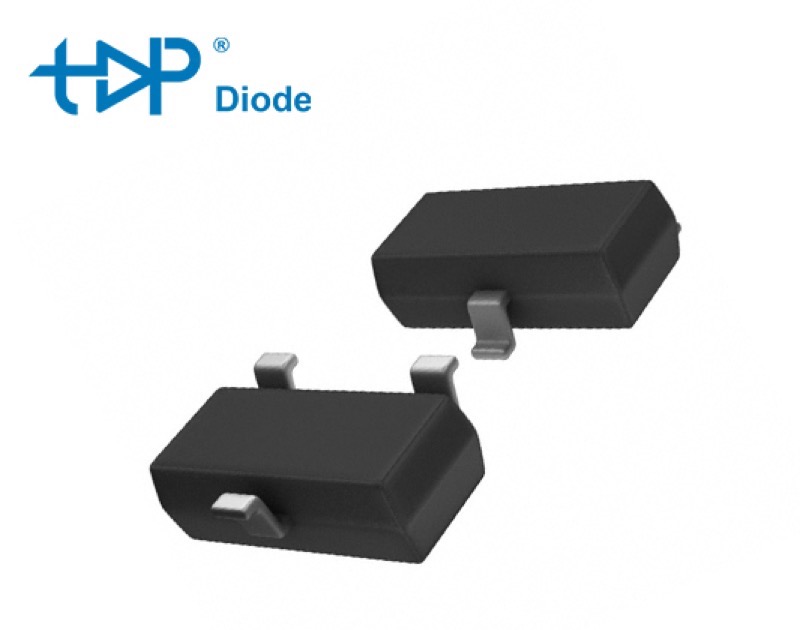

The BSS138 is a popular N-channel enhancement mode MOSFET housed in a small SOT-23 package. Its popularity stems from an excellent combination of characteristics that make it ideal for a wide array of low-power applications.
N-Channel Enhancement Mode: This means the device is off when the gate-source voltage (V_GS) is zero. It requires a positive V_GS to create a conduction channel between the drain and source.
SOT-23 Package: This small surface-mount package is ideal for space-constrained printed circuit boards (PCBs), making it a favorite in portable and miniaturized electronics.
Key Functionality: It is primarily used for low-voltage switching applications, serving as a highly efficient electronic switch controlled by a voltage signal.
Engineers value the BSS138 for its ability to be driven directly from logic-level signals (like those from microcontrollers and FPGAs) due to its relatively low threshold voltage, its fast switching speeds, and its robust performance.
Why Consider a Replacement?
While established brands like On Semi (ON Semiconductor) set a high standard, several factors drive the need for compatible alternatives:
1.Supply Chain Stability: Mitigating risk by having a second qualified source prevents production halts.
2.Cost Optimization: Competitive alternative sources can provide significant cost savings, especially for high-volume orders.
3.Lead Time: Alternative manufacturers can often offer more flexible and shorter lead times.
4.Design Longevity: Ensuring a component remains available for the entire lifecycle of a product.
Our mission is to provide a solution that addresses all these points without forcing a redesign.
A true drop-in replacement must match not only the physical footprint but also the critical electrical parameters. Our BSS138 is engineered to meet or exceed the specifications of the original On Semi component, ensuring identical performance in your circuits.

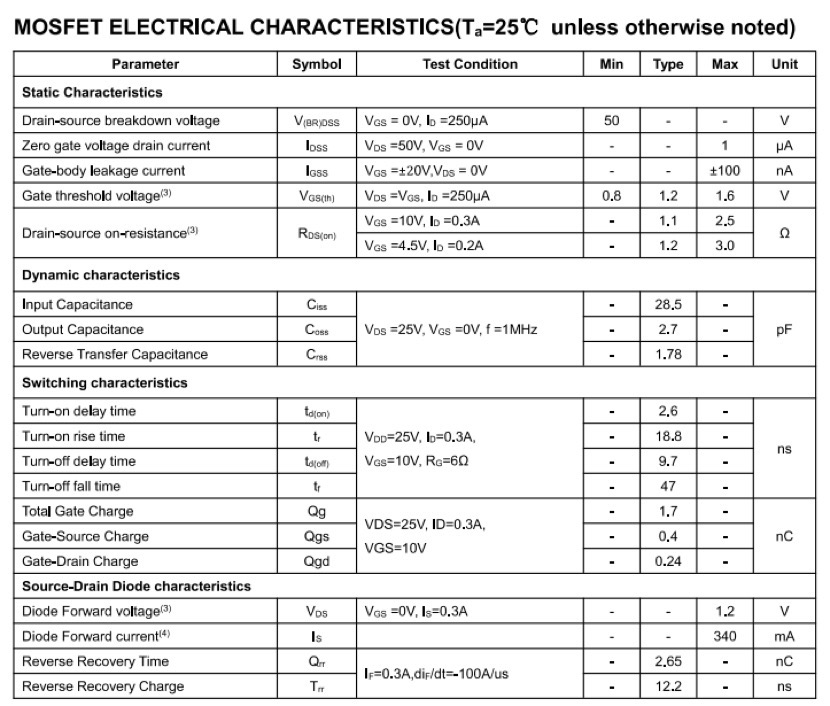

Analysis of Key Parameters
Conclusion: As the data shows, our BSS138 is an electrical and form-factor equivalent to the On Semi BSS138. It is a true drop-in replacement that requires no design modifications, re-layout, or re-testing of the core functionality.
Typical Applications for the BSS138
Our BSS138 is suitable for all the same applications as the brand-name component, including:
Load Switching: Controlling power to peripherals in consumer electronics.
Level Shifting: Translating signals between different voltage domains (e.g., 1.8V to 3.3V or 5V), a very common use case.
Signal Routing & Multiplexing: In audio and data acquisition systems.
Power Management in Portable Devices: In battery-powered devices like smartphones, tablets, and IoT sensors due to its low power consumption.
Interface Circuits: Protecting microcontroller pins from higher voltages.
Our Commitment to Quality and Reliability
We understand that switching suppliers is a significant decision. To guarantee peace of mind, we subject our BSS138 MOSFETs to a rigorous quality assurance process:
100% Automated Testing: Every unit is tested to ensure it meets all published electrical specifications.
Compliance with International Standards: Our manufacturing processes adhere to strict quality management systems.
Extended Reliability Testing: We perform tests such as High-Temperature Operating Life (HTOL) and Environmental Stress Testing to ensure long-term reliability in the field.
Traceability: We provide full lot traceability for quality assurance and accountability.
Learn more by visiting our website!
