What is a transistor


A transistor has three poles: the three poles of a bipolar transistor are composed of N-type and P-type respectively: emitter, base and collector; The three poles of a field-effect transistor are source, gate and drain.

Because of the tripolarity of transistors, they are also used in three ways: grounded emitter (also known as common emitter amplifier/CE configuration), and grounded base (also known as common base amplifier /CB configuration) and ground collector (also known as common set amplifier/CC configuration/emitter coupler).Because of their high response and high precision, transistors can be used in a variety of digital and analog functions, including amplifiers, switches, regulators, signal modulation, and oscillators. Transistors can be packaged individually or in a very small area that holds part of a 100 million or more transistor integrated circuit.

Strictly speaking, transistor refers to all single components based on semiconductor materials, including diodes, transistors, field effect transistors, thyristors, etc., made of various semiconductor materials. Transistor mostly refers to the transistor.

Transistors fall into two broad categories: bipolar transistors (BJT) and field-effect transistors (FETs).

Discover related topics: The Differences Between NPN Transistors and PNP Transistors

transistor to NPN/PNP

bipolar junction transistors

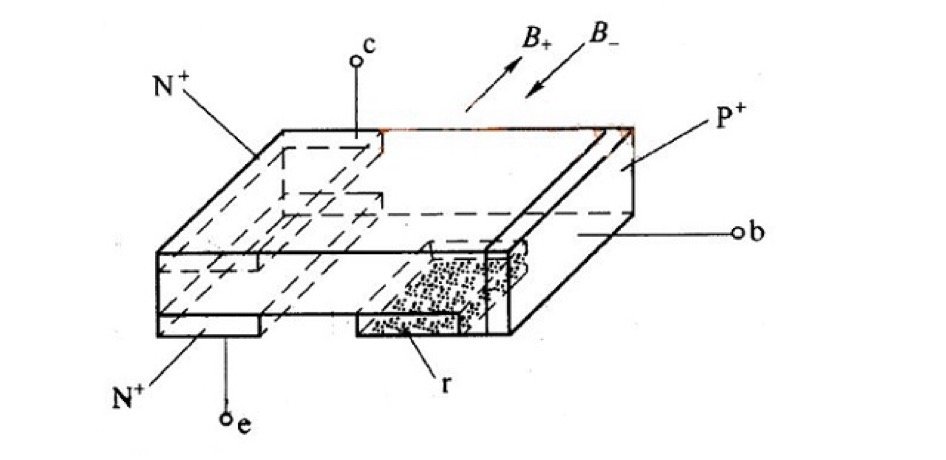

“Bipolar” means that both electrons and holes are moving at the same time as they are working. Bipolar junction transistor, also known as semiconductor triode, is a device that combines two PN junctions by a certain process. PNP and NPN have two combined structures. External extraction of three poles: collector, emitter and base. BJT has an amplification function, which depends on whether its emitter current can be transmitted through the base region to the collector region.

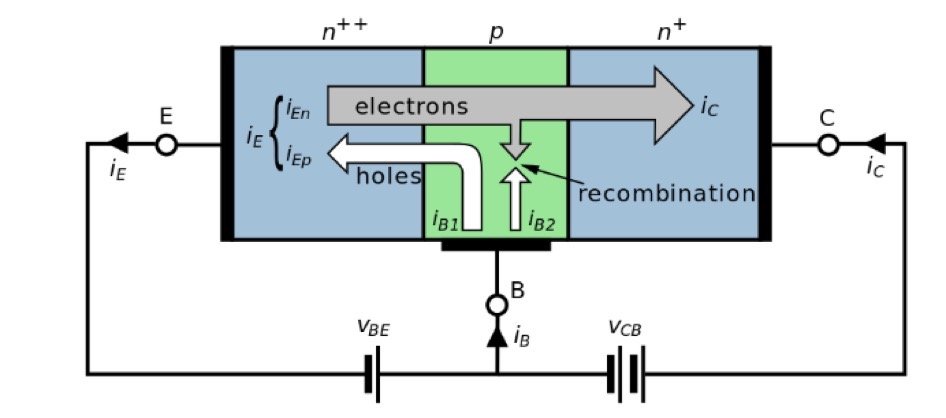

In order to ensure this transportation process, on the one hand, internal conditions must be met. This means that the impurity concentration in the emission region should be much higher than the impurity concentration in the base region, and the thickness of the base region should be very small. On the other hand, external conditions should be satisfied. This means that the emitter junction should be positively biased (plus positive voltage) and the collector junction should be reverse-biased. There are many types of BJT, according to the frequency, there are high-frequency tubes and low-frequency tubes; According to the power points, there are small, medium and high power tubes; According to the semiconductor material, there are silicon and germanium tubes. The amplifier circuit consists of a common emitter, a common base and a common collector.

About bipolar junction transistors

When it comes to bipolar junction transistors, we have to mention BC8456DE-BC8458DB Complementary NPN/PNP Silicon Epitaxial Planar Transistor


In the field of electronic components, where capacitors, resistors and inductors dominate, two unsung heroes work tirelessly to maintain a balance between the flow and control of current. They are complementary NPN/PNP silicon epitaxial planar transistors from TOPDIODE BC8456DE and BC8458DB.



BC8456DE-BC8458DB Complementary NPN/PNP Silicon Epitaxial Planar Transistor Topdiode

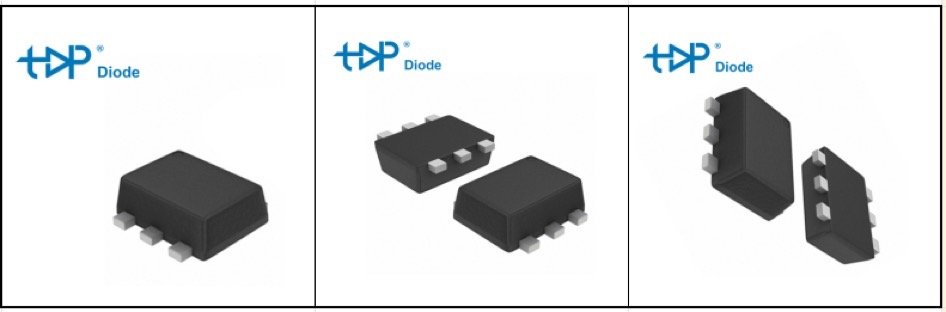

Topdiode PN BC8456DE~BC8458DB
Description Complementary NPN/PNP Silicon Epitaxial Planar Transistor
Package SOT-563
Polarity NPN/PNP
Ptot (mW) 200
VCEO [max] (V) 65
IC [max] (mA) 100
hFE [min] 110
hFE [max] 800
Tj [max] (℃) 150
Cross to Brand Nexperia
Pin to Pin Cross P/N BC847BVN
