SMAJ TVS DIODE SMAJ5.0–SMAJ220CATypical Charactristics
Electronic devices, especially microelectronic devices, can be affected by electrostatic discharge (ESD), lightning surges, power grid fluctuations, and even voltage spikes caused by internal inductive switching events. These transient events may be one-time events or they may occur repeatedly.
TVS diodes, also known as transient voltage suppressors, are components that protect sensitive electronic devices from harmful and potentially dangerous voltage spikes. These semiconductor devices are carefully designed to protect precision electronic equipment in the event of sudden overvoltage.
Due to its ability to ensure safe operation under different environmental conditions, TVS diodes are crucial for a wide range of applications, including:
- Automotive: From the in car infotainment cente, TVS diodes are essential components for surge and ESD protection, ensuring the reliability
- Calculation: Personal and professional computing devices and line signals require reliable protection to withstand transient spikes that may cause system failures and data loss. TVS has a wide range of applications, from solid-state drives and DC fans used for cooling laptops and computers, to uninterruptible power supplies (UPS) and DC-DC converters.
- Industrial: From smart meters to solar systems and sturdy mechanical electrical panel switches, industrial equipment is susceptible to transient spikes in harsh environments.
- Consumer products: TVS diodes are crucial for providing convenience and productivity to numerous consumer devices – from cordless power tools and Class D amplifiers to environmentally friendly cordless lawn mowers.
Now let’s introduce SMAJ TVS
SMAJ TVS diode is a transient voltage suppressor (TVS) mainly used to protect circuits from transient high-energy impacts, such as electrostatic discharge (ESD) and surge voltage. It is connected in parallel in the circuit, and when a transient voltage exceeds its breakdown voltage, it quickly conducts to discharge the overvoltage to ground, thereby protecting the subsequent circuit.
Topdiode has competitive prices and shorter lead times compared to other brands like Onsemi, NXP, DIODES… Topdiode services are designed to meet the needs of customers seeking cost savings with faster project timelines.
Topdiode has competitive prices and shorter lead times compared to other brands.
Features for SMAJ TVS SMAJ5.0–SMAJ220CA:
■ RoHS compliant

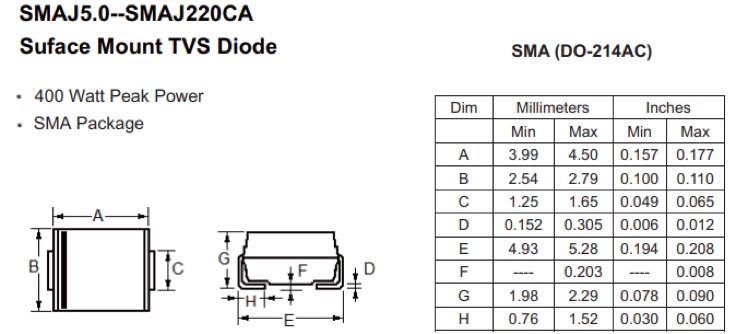

■ Surface Mount SMA package
■ Standoff Voltage: 5.0 to 495 volts
■ Power Dissipation: 400 watts

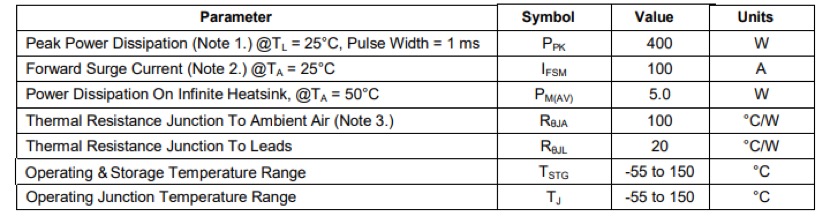

Maximum Ratings And Thermal Characteristics Rating at 25℃ ambient temperature unless otherwise specified

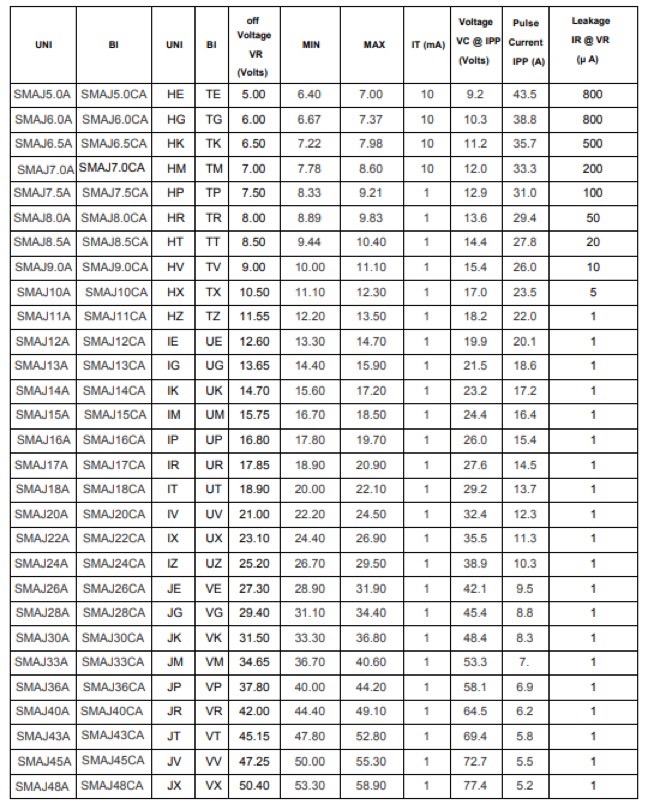

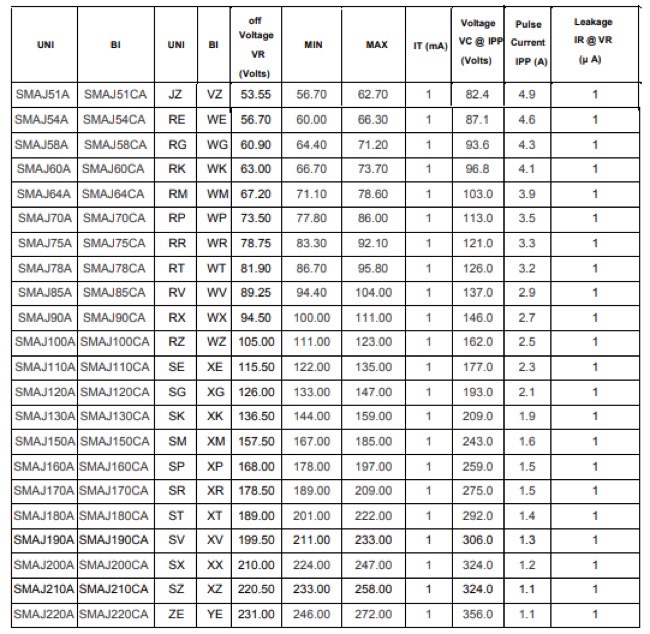

SMAJ5.0–SMAJ220CA

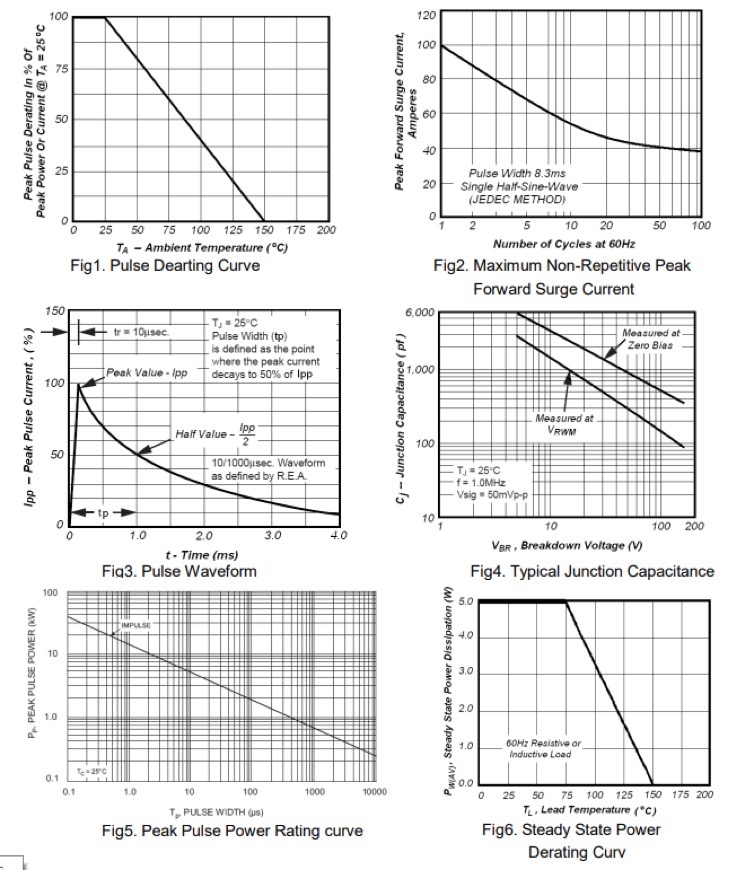

Suface Mount TVS DiodeTypical Charactristics
SMAJ5.0–SMAJ220CA Suface Mount TVS Diode
