SP10 series electrical characteristics
SMD Schottky Barrier Rectifiers are surface mount rectifying devices with low power consumption, high efficiency, and fast recovery characteristics, suitable for high-frequency inverters, free rotation circuits, and polarity protection scenarios
Core Features for SMD Schottky Barrier Rectifier
* Low power consumption: The forward conduction voltage is reduced to about 0.4V, significantly reducing energy loss
* High frequency characteristics: extremely short reverse recovery time (a few nanoseconds), suitable for high-frequency applications
* High current capability: Rectified current can reach thousands of amperes, suitable for low voltage and high current scenarios
Typical Applications for SMD Schottky Barrier Rectifier
* Switching power supply: As a high-frequency rectifier component, it improves power conversion efficiency
* Inverter: Achieving energy conversion in power electronic systems
* Signal processing: used for signal transmission protection of low voltage and high frequency
Vishay High Current Density Surface-Mount High Voltage Schottky Rectifiers SS10P series PRODUCT information
FEATURES
Very low profile – typical height of 1.1 mm
Ideal for automated placement
Guardring for over voltage protection
APPLICATIONS
For use in high frequency rectifier of switching mode power supplies, freewheeling diodes, DC/DC converters, or polarity protection application.
TOPDIODE SP10 series SURFACE MOUNT SCHOTTKY BA R RIER RECTIFIER can replace Vishay High Current Density Surface-Mount High Voltage Schottky Rectifiers SS10P series
TOPDIODE SP10 series Features
Schottky Barrier Chip
High Thermal Reliability
Patented Super Barrier Rectifier Technology
High Forward Surge Capability
Ultra Fow Power Loss, High Efficiency
Excellent High Temperature Stability
Plastic material-UL flammability 94V-0
TOPDIODE SP10 series Mechanical Data

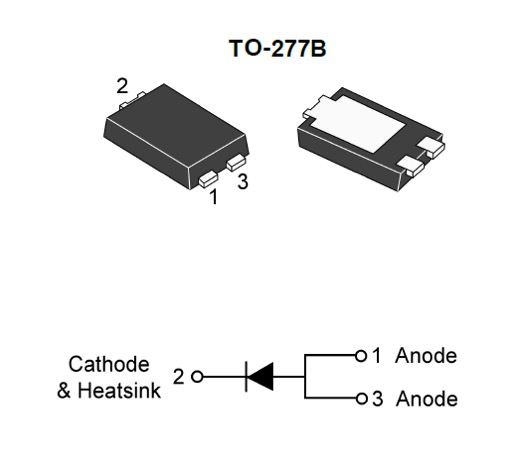

Case:TO-277B, molded plastic
Terminals:Plated Leads Solderable per
MIL-STD-202, Method 208
Polarity:Cathode Band
Lead Free:For RoHS / Lead Free Version

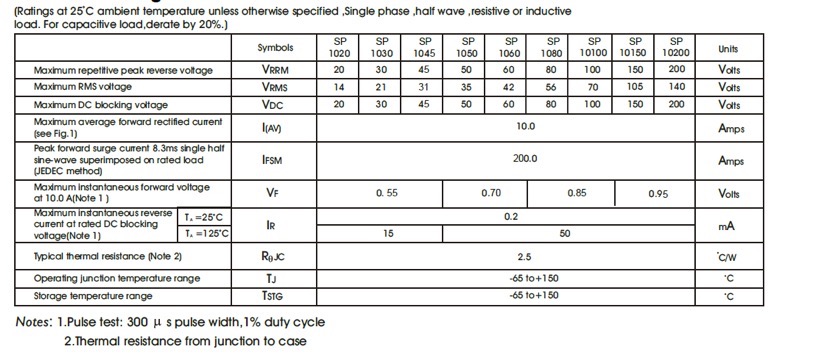

TOPDIODE SP10 series Maximum ratings and electrical characteristics

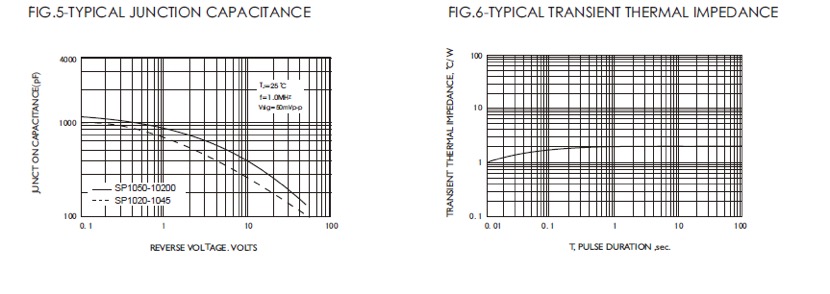

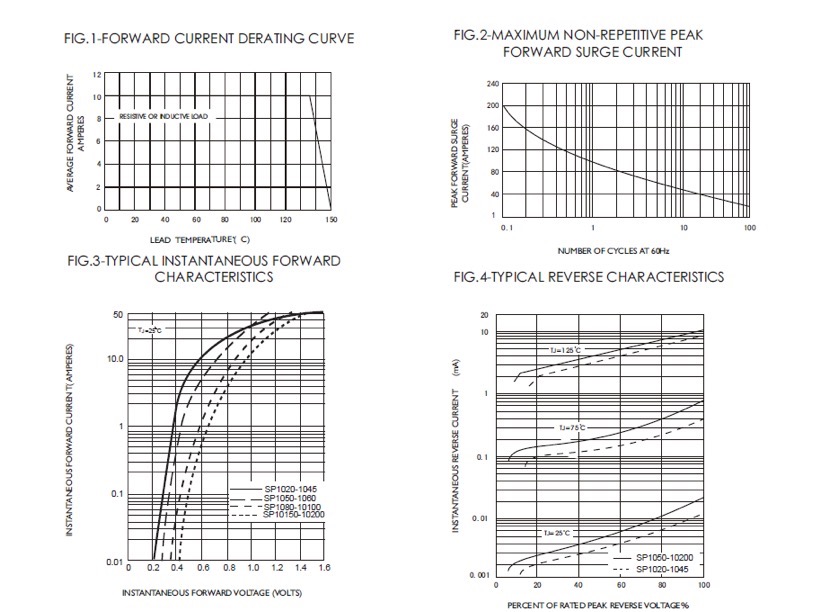

TOPDIODE SP10 series CHARACTERISTIC CURVES

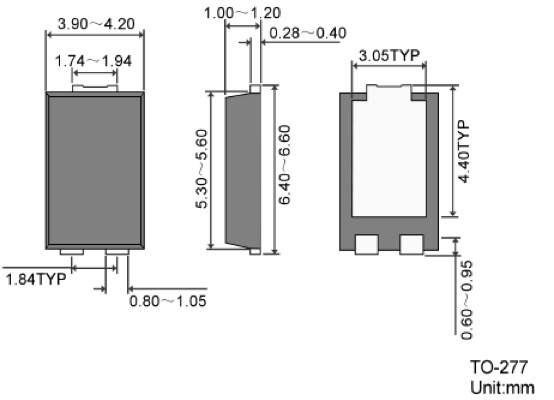

TOPDIODE SP10 series Package Outline Dimensions

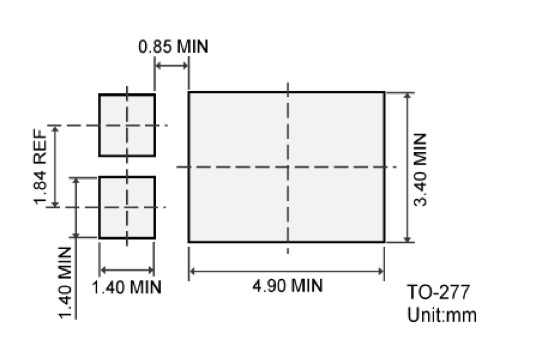

TOPDIODE SP10 series Suggested Solder Pad Layout
