T1210-6A provides perfect replacement for ST BTA12-600SWRG
Thyristor is the abbreviation of thyristor rectifier element (also known as thyristor), which is a semiconductor device with a four-layer structure of three PN junctions. Bidirectional thyristor is a semiconductor device with a five-layer structure of NP-NPN
A thyristor is a semi-controlled current control device.
Classification selection
Firstly, determine whether the circuit board is suitable for using bidirectional thyristors or unidirectional thyristors.
According to the installation conditions of the circuit, is it suitable to use plug-in thyristors or surface mount thyristors.
Function: Controllable rectification, inverter, frequency conversion, voltage regulation, temperature regulation, contactless switch, etc
Application: Controllable silicon devices are widely used in household appliances such as dimming lights, speed regulating fans, air conditioners, refrigerators, washing machines, cameras, combination speakers, sound and light control circuits, timing controllers, gas igniters, toy devices, power tools, motorcycle igniters, voltage regulators, and industrial controls.
Package Type：TO-92、TO-251、TO-126、TO-202、TO-220、TO-220F、TO-3P、TO-247、SOT-23、SOT-23-3L、SOT-89、SOT-223、TO-252、TO-263 etc
A bidirectional thyristor, also known as a bidirectional thyristor rectifier, is a special semiconductor device that can control the flow of current in two directions.
ST BTA12-600SWRG is a model of this device that has high voltage and current tolerance. This type of thyristor is commonly used in AC circuits, which can adjust the current based on control signals. It is widely used in fields such as motor speed regulation, lighting regulation, power management, etc
The BTA12-600SWRG model bidirectional thyristor has a voltage level of 600V and a current capacity of 12A, which means it can operate at voltages up to 600 volts while passing currents of up to 12 amperes. This specification makes it suitable for applications that require high power control. When designing circuits, engineers will consider the electrical characteristics of this thyristor, such as trigger voltage, holding current, etc., to ensure the stability and efficiency of the circuit.
In addition, circuit designs using bidirectional thyristors need to consider their heat dissipation issues, as these devices generate a significant amount of heat during high-power operations. Appropriate heat dissipation design can extend the service life of devices and ensure their reliability.
In practical applications, it is also necessary to consider other components used in conjunction with bidirectional thyristors, such as trigger circuits, protection circuits, etc., to ensure the safe and efficient operation of the entire system
Topdiode T1210-6A provides perfect replacement for ST BTA12-600SWRG
FEATURES for Topdiode T1210-6A
* Glass Passivated Junctions
* High voltage and surge capability
* Low Thermal Resistance and Durability
* Triggering in three quadrants
Application for Topdiode T1210-6A：
* Static relays
* Heating regulation
* In-duction motor starting circuits
* Phase control operation in light dimmers
* Motor speed controllers

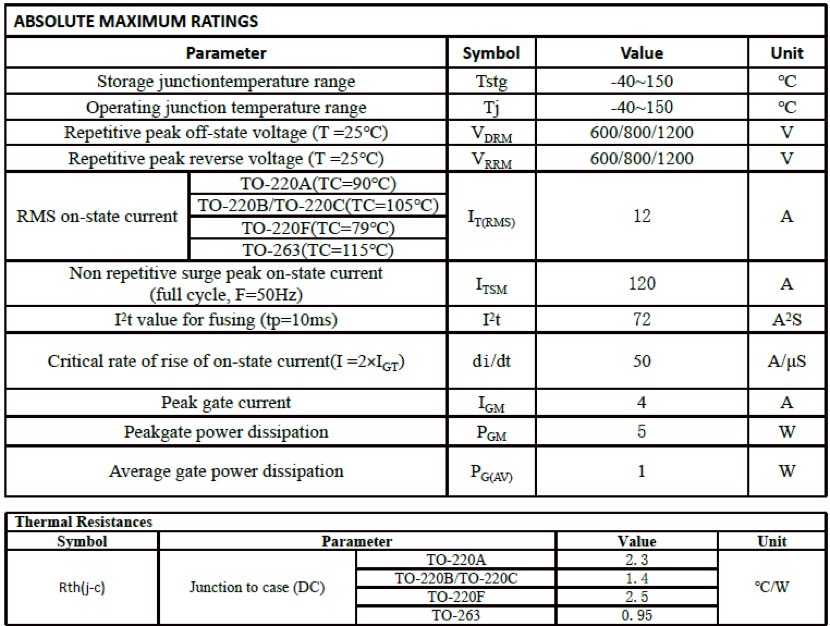

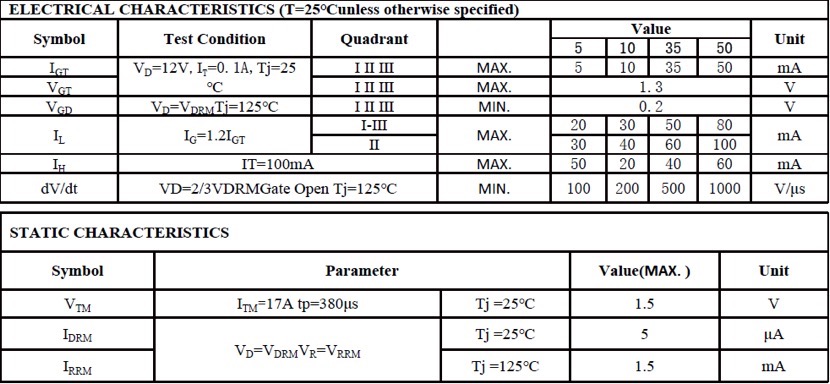

Electrical characteristics for Topdiode -6A
VD/VR: 600V
IT(RMS): 12A
IGT: 5 to 50mA

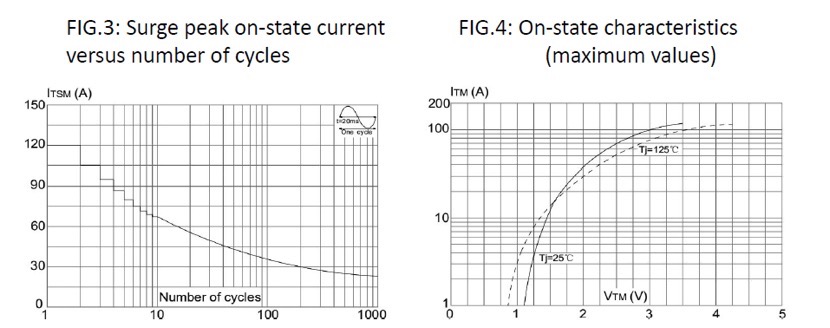

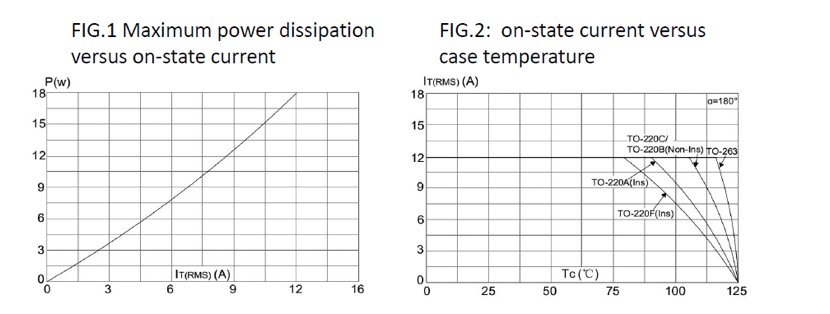

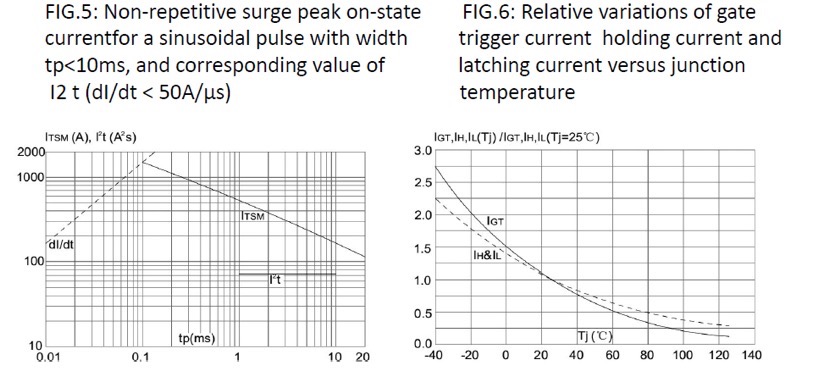

Characteristics (curves) for Topdiode T1210-6A
Topdiode provide cost effective SCRs and Triacs to replace Infineon, Onsemi, AOS, and ST IGBT, the following is our cross guide:
Topdiode is a reputable high-technology enterprise specializing in designing, producing, and marketing semiconductor power devices and integrated circuits (ICs).
Our wide range of products, include SiC, MOSFETs, IGBTs, transistors, driver ICs, and audio ICs, which are used in various industries such as automotive, solar energy, 5G telecommunications, industrial electronics, white goods, lighting, security, and consumer electronics.
Topdiode has competitive prices and shorter lead times compared to other US and Japanese IC brands. Topdiode services are designed to meet the needs of customers seeking cost savings with faster project timelines
For any questions or inquiries, please visit our website: https://www.topdiodes.com
