The Mighty Zener Diode: Voltage Regulation’s Unsung Hero
In the vast landscape of electronic components, the humble Zener diode stands out as a remarkably simple yet indispensable device. Unlike its standard diode cousin, which primarily conducts current in one direction, the Zener diode performs its most critical magic when operated in reverse bias. Its superpower? Precise voltage regulation.
Beyond the Ordinary Diode: The Reverse Breakdown Revelation
A standard PN junction diode readily conducts current when forward-biased (positive voltage on the P-side, negative on the N-side) but blocks almost all current when reverse-biased, up to a critical point called the breakdown voltage. Exceeding this voltage typically destroys a conventional diode.
The Zener diode, however, is specially engineered to exploit this breakdown phenomenon safely and controllably. It leverages one of two mechanisms:
- Zener Breakdown: Dominant at lower voltages (typically below ~5V). This involves a quantum mechanical effect where the intense electric field directly ruptures covalent bonds, freeing charge carriers.
- Avalanche Breakdown: Dominant at higher voltages (above ~5V). This occurs when thermally generated minority carriers gain enough energy from the strong electric field to knock other electrons loose upon collision, creating an avalanche effect.
Crucially, in a properly designed Zener diode, this reverse breakdown is non-destructive. Once the breakdown voltage (termed the Zener Voltage, Vz) is reached, the diode allows current to flow in the reverse direction while maintaining a remarkably constant voltage drop across its terminals, regardless of significant changes in the current flowing through it.
Key Characteristics and Parameters
* Zener Voltage (Vz): The heart of the device. This is the specific reverse breakdown voltage it’s designed to regulate at. Vz values range from a few volts to several hundred volts.
* Power Rating (Pz max): The maximum power (Vz Iz) the diode can safely dissipate as heat without damage. Exceeding this causes failure.
* Zener Impedance (Zz): The dynamic resistance of the diode in the breakdown region. A lower Zz means the diode maintains voltage more stably as current changes.

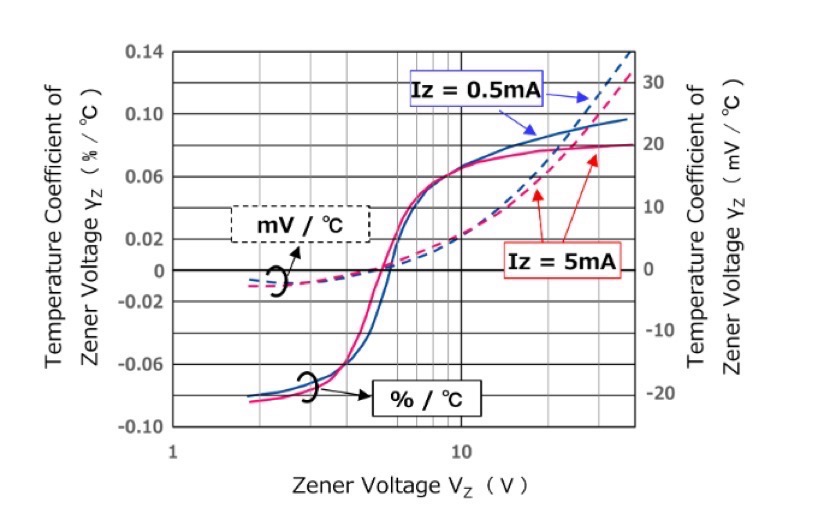

* Temperature Coefficient: How Vz changes with temperature. It can be positive (Vz increases with temp) or negative (Vz decreases with temp), depending on the Vz value and dominant breakdown mechanism.
Where Zener Diodes Shine: Applications
The Zener’s ability to clamp voltage makes it incredibly versatile:
- Voltage Regulation: This is its flagship role. A Zener diode, often paired with a series resistor, forms the core of a simple shunt regulator. It “shunts” excess current away from the load to maintain a constant output voltage despite variations in input voltage or load current. While less efficient than complex IC regulators for high power, it’s perfect for low-current, low-cost, or reference applications.
- Voltage Reference: The stable Vz provides a precise reference voltage for power supplies, analog-to-digital converters (ADCs), and measurement circuits, crucial for accuracy.
- Overvoltage Protection: Placed in parallel with a sensitive component or circuit input, the Zener acts as a “clamp.” If the voltage exceeds Vz, the Zener conducts heavily, diverting potentially damaging current away and limiting the voltage seen by the protected circuit.
- Waveform Clipping/Limiting: Used in signal processing circuits to clip or limit the peaks of AC waveforms to a desired level defined by Vz.
- Surge Suppression: Often found in circuits to absorb transient voltage spikes (like ESD) that could harm components.
The Simple Powerhouse
Despite its simplicity – essentially a two-terminal device – the Zener diode is a foundational component in electronics. Its unique ability to provide a stable voltage reference and perform regulation or protection in reverse bias makes it an essential tool in every designer’s kit. From stabilizing the output of a basic power supply to protecting a microcontroller’s input pin, the unassuming Zener diode quietly ensures countless electronic systems operate reliably and safely. It truly is voltage regulation’s unsung hero.
