The Silent Workhorse: Unveiling the BC846 NPN Transistor

In the intricate tapestry of modern electronics, where complex integrated circuits often steal the spotlight, it’s easy to overlook the fundamental components that make everything possible. Among these unsung heroes sits the BC846, a remarkably common and versatile NPN bipolar junction transistor (BJT) that serves as a true workhorse in countless circuits worldwide. Its simplicity, reliability, and cost-effectiveness have cemented its place as a cornerstone of electronic design.

What is the BC846?

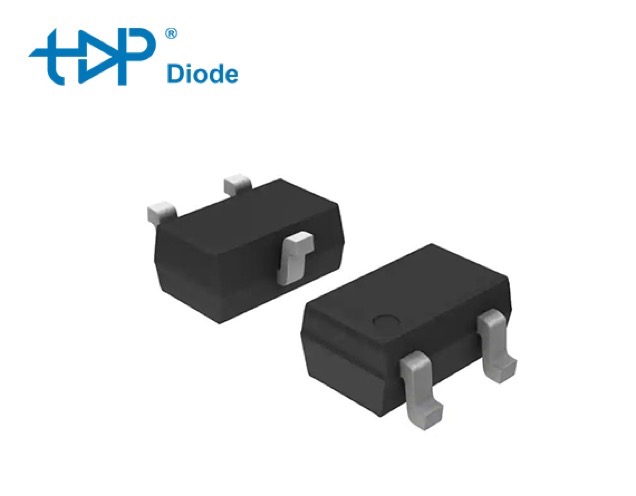

At its core, the BC846 is a surface-mount (SMD), general-purpose, low-power NPN transistor housed in the ubiquitous SOT-23 package. This tiny three-leaded component (Emitter, Base, Collector) is designed for amplification and switching tasks operating within modest voltage and current ranges. It’s part of a popular family that includes the BC847 (slightly higher current) and BC848 (slightly lower current), collectively known as the BC84x series.

Key Specifications

*   Package: SOT-23 (Compact surface-mount, ideal for high-density PCBs)

*   Transistor Type: NPN Bipolar Junction Transistor (BJT)

*   Collector-Emitter Voltage (Vceo): Typically 65V (A/B/C variants)

*   Collector Current (Ic): 100mA continuous (Absolute maximum rating)

*   DC Current Gain (hFE): Grouped into ranges (e.g., BC846A: hFE 110-220, BC846B: 200-450). This grouping allows designers to select the optimal gain for their application.

*   Power Dissipation (Pd): Typically around 250mW (depends on ambient temperature and PCB layout).

*   Transition Frequency (fT): Typically around 100 MHz, making it suitable for low to moderate frequency amplification.

Where Does the BC846 Shine

The BC846’s true value lies in its versatility and widespread applicability:

1. Signal Amplification: Its primary role is amplifying small AC or DC signals in audio preamps, sensor interfaces, and various analog stages.
2. Low-Speed Switching: Perfect for driving small loads like LEDs, relays (often with a driver transistor), or other logic circuits where switching speeds are not extreme (< 100 MHz).
3. Digital Logic Interfaces: Frequently used as a buffer or level shifter between microcontrollers, logic ICs, and other components.
4. Oscillators & Timers:Found in simple oscillator circuits and timing applications.
5. Current Sources/Sinks: Used to create simple constant current circuits.
6. Complementary Pairs: Often paired with its PNP counterpart, the BC856, to create push-pull output stages or complementary amplifiers.

Why is the BC846 So Ubiquitous

Several factors contribute to its enduring popularity:

1. Cost-Effectiveness: It’s incredibly inexpensive to manufacture and purchase, even in small quantities.
2. Availability: Produced by numerous semiconductor manufacturers (NXP, ON Semiconductor, Diodes Inc., etc.), ensuring easy global sourcing.
3. Proven Reliability: Decades of use have proven its robustness and reliability in standard operating conditions.
4. Adequate Performance: For a vast array of low-power, low-to-medium frequency tasks, its specifications are perfectly adequate.
5. Standardization: The SOT-23 package and common pinout (Emitter-Base-Collector) make it a drop-in replacement across designs and manufacturers.
6. Ease of Use: Its characteristics are well-understood and easy to design with using standard BJT models and equations.

Important Considerations

*   ESD Sensitivity: Like most semiconductor devices, the BC846 is sensitive to electrostatic discharge (ESD). Proper handling and PCB design practices are essential.

*   Heat Dissipation: While its power rating is low, exceeding it (especially in high ambient temperatures or without adequate copper area on the PCB) will lead to failure.

*   Saturation Voltage: When used as a switch, the voltage drop between Collector and Emitter (Vce(sat)) is not zero (typically around 0.2-0.6V at moderate currents), which needs to be accounted for in power-sensitive switching applications.

*   Gain Variability: The hFE grouping (A/B/C) is crucial. Designs requiring precise gain need careful selection or circuit techniques to accommodate the range.

In Conclusion

The BC846 might not be the flashiest or most powerful component on the block, but its sheer utility, affordability, and reliability make it indispensable. It quietly performs its duties of amplification and switching in millions of devices – from consumer electronics and industrial controls to automotive modules and hobbyist projects. Its presence in the ubiquitous SOT-23 package symbolizes its role as a fundamental building block, a testament to the enduring power of simple, well-executed semiconductor technology. For any electronics engineer or hobbyist, understanding and utilizing the BC846 is a fundamental skill, recognizing it as the silent, dependable workhorse that it truly is.
