Topdiode DSE20H06Series Fred Rectifiers replace Vishay VS-15ETL06-M3

FRED Rectifiers, short for Fast Recovery Epitaxial Diodes, are high-performance semiconductor diodes designed for rapid switching and efficient power conversion, featuring ultra-fast recovery times and low switching losses, making them ideal for power supplies, inverters, and high-frequency applications where standard diodes fall short.

Key Characteristics:

• Fast Recovery:They switch off quickly, minimizing energy loss and heat.
• Low Losses:Reduced switching and conduction losses boost overall system efficiency.
• High Reliability:Designed for high temperatures and demanding conditions, suitable for automotive use.
• Optimized Performance:Achieve a balance of low forward voltage drop and fast recovery.

Common Applications:

• Power Factor Correction (PFC):In switch-mode power supplies (SMPS).
• Output Rectification:For EV/HEV charging stations, solar inverters, and UPS.
• High-Frequency Converters:In server, desktop, and notebook power supplies.
• Snubber/Freewheeling:As protection in switching circuits.

In essence, FRED rectifiers replace slower, older diodes to enable more compact, efficient, and powerful electronic devices

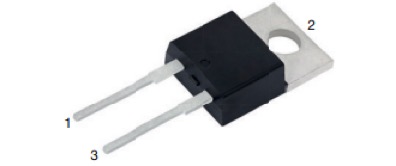

Vishay VS-15ETL06-M3 Ultralow VF Hyperfast Rectifier, 15 A FRED, State of the art, ultralow VF, soft-switching hyperfast rectifiers optimized for Discontinuous (Critical) Mode (DCM) Power Factor Correction (PFC). The minimized conduction loss, optimized stored charge and low recovery current minimize the switching losses and reduce over dissipation in the switching element and snubbers

DSE20H06Series Fred Rectifiers can be perfectly replaced Vishay VS-15ETL06-M3:

Features:

*EPI wafer

*Low VF and soft recovery characteristic

*ITO-220AC

*TO-26

*Low power loss

*Low leakage current

*For PFC(DCM/CCM) operation

*Lead free in compliance with EU RoHS

*2011/65/EU directive

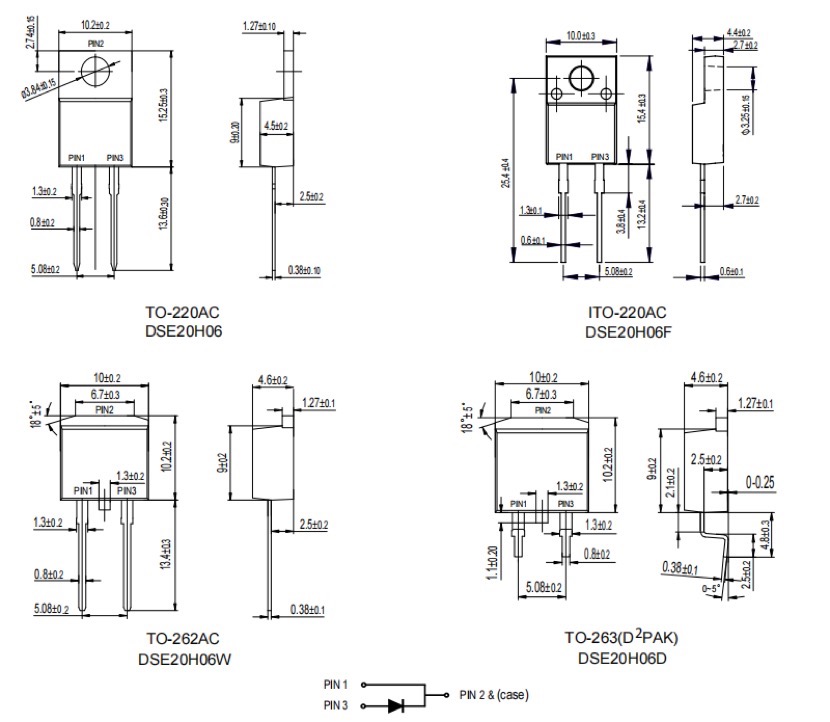

Mechanical Data

*Circuit figure: Single positive

*Leads: Solderable per mil-std-202, Method 208

*Polarity: as marked

*Mounting torque: 5 in-lbs maximum

*Terminals: Puretin plated

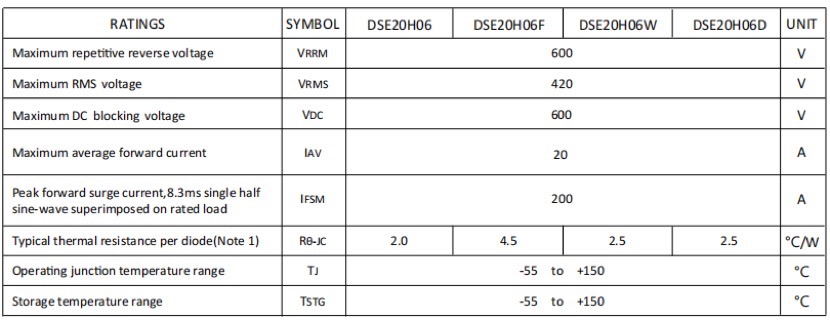

MAXIMUM RATINGS(TA=25℃)

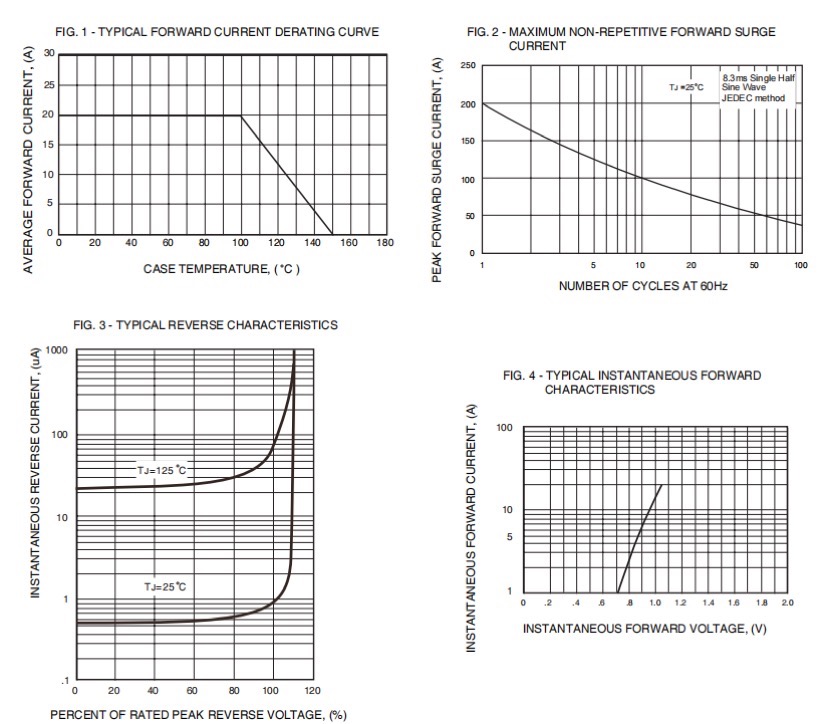

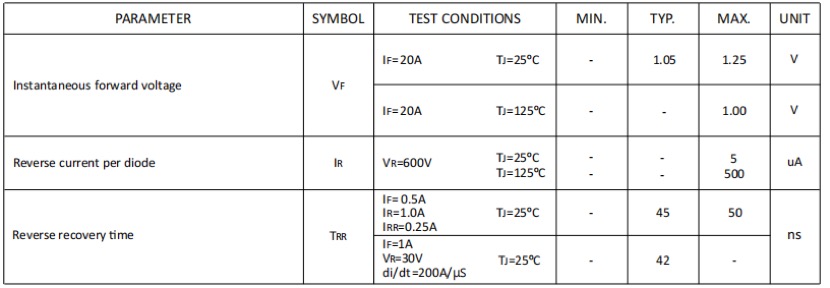

ELECTRICAL CHARACTERISTICS

Benefits of Using Fred Diodes: Improved Efficiency and Power Density

The use of Fred diodes in electronic circuits leads to improved efficiency and power density. By reducing the recovery time and reverse recovery charge, these diodes minimize energy losses during switching operations. This results in higher overall system efficiency and allows for more compact circuit designs with increased power output per unit area. Enhanced efficiency is crucial in battery-operated devices, where maximizing battery life is a primary concern.

Reduced Power Loss and Heat Generation

Fred diodes contribute to reduced power loss and heat generation in electronic systems. The low reverse recovery charge and fast recovery time ensure that minimal energy is wasted during each switching cycle. Additionally, the soft recovery characteristic helps prevent voltage spikes that can lead to excessive heat dissipation. Lower power loss and heat generation translate to cooler operating temperatures, which can extend the lifespan of electronic components and improve system reliability.

Enhanced System Reliability and Longevity

The incorporation of Fred diodes in electronic circuits enhances system reliability and longevity. By minimizing power loss, heat generation, and EMI, these diodes reduce the stress on other components, thereby lowering the risk of failure. The soft recovery characteristic also helps protect sensitive electronic parts from voltage transients, further improving system robustness. Enhanced reliability and longevity are essential in critical applications such as medical devices, aerospace systems, and industrial automation.

Comparison with Other Types of Diodes Standard Rectifier Diodes

Standard rectifier diodes are the most common type of diodes used for converting alternating current (AC) to direct current (DC). While they are effective in basic rectification tasks, they have relatively slow recovery times compared to Fred diodes. This slower recovery can lead to increased power loss, heat generation, and EMI in high-frequency applications. Fred diodes, with their fast recovery time and low reverse recovery charge, offer superior performance in scenarios where quick switching is required.

Schottky Diodes

Schottky diodes are another type of diode known for their low forward voltage drop and fast switching speed. They are commonly used in power supply circuits and signal rectification applications. However, Schottky diodes have a higher reverse leakage current compared to Fred diodes, which can result in increased power loss in certain applications. Additionally, Schottky diodes typically have lower breakdown voltage ratings, limiting their use in high-voltage environments. Fred diodes strike a balance between fast recovery and low reverse leakage current, making them suitable for a broader range of applications.

Ultra-Fast Recovery Diodes (UFRDs)

Ultra-fast recovery diodes (UFRDs) are similar to Fred diodes but offer even faster recovery times and lower reverse recovery charges. UFRDs are specifically designed for high-frequency applications where ultra-rapid switching is essential. While both Fred diodes and UFRDs share many characteristics, UFRDs are optimized for extreme performance at the cost of higher complexity and cost. Fred diodes provide a cost-effective solution for most high-speed switching applications without compromising on performance.



Conclusion

Fred diodes play a vital role in modern electronic circuits, offering enhanced performance, efficiency, and reliability compared to traditional diodes. Their unique characteristics, including fast recovery time, low reverse recovery charge, high forward current capability, and soft recovery characteristic, make them ideal for a wide range of applications, from power supply circuits to high-frequency signal processing. By understanding the principles behind Fred diodes and their design considerations, engineers can effectively integrate these components into electronic systems to achieve optimal performance and longevity. As technology continues to advance, Fred diodes will remain a cornerstone in the development of innovative and reliable electronic devices.
