The STMicroelectronics T405-600T
In today’s highly competitive electronic components market, choosing cost-effective and supply chain-stable products has become increasingly crucial. Our TOPDIODE F0405-600B serves as an excellent replacement for the STMicroelectronics T405-600T, not only offering a more competitive price but also demonstrating superior supply chain stability and shorter delivery times. The TOPDIODE F0405-600B 4A 600V Triac, while ensuring high-quality performance, meets customer needs with more affordable pricing and faster delivery, significantly enhancing production efficiency and cost-effectiveness.
Descriptions of STMicroelectronics T405-600T
STMicroelectronics offers a broad range of standard products that serve as industry-standard and drop-in replacements for popular general-purpose analog ICs, discretes, and serial EEPROMs. These products are manufactured to the highest quality standards, with many meeting AEC-Q qualifications for automotive applications. To simplify the design process, STMicroelectronics provides a comprehensive set of design aids, including SPICE and IBIS models, as well as simulation tools.
T405 Series 600 Vdrm 4 A Logic Level Triac AC Switch Flange Mount – TO-220AB
Triac, 600 V, 5 Ma, 4 A, 30 A, 10 Ma, 1.3 V Rohs Compliant: Yes |Stmicroelectronics T405-600T
4 Quadrant Logic Level TRIAC, 600V V(DRM), 4A I(T)RMS, TO-220AB
TRIAC Diode 600V 4A(RMS) 31A 3-Pin(3+Tab) TO-220AB Tube
TRIAC Logic – Sensitive Gate 600 V 4 A Through Hole TO-220
TRIAC, 4A, 600V, TO-220AB; Peak Repetitive Off-State Voltage, Vdrm: 600V; On State RMS Current
IT(rms): 4A; Triac Case Style: TO-220AB; Gate Trigger Current Max (QI), Igt: 5mA; Gate Trigger Voltage Max Vgt: 1.3V; Peak Gate Po
STMicroelectronics T405-600T More Information
| Product Attribute | Attribute Value |
|---|---|
| STMicroelectronics | |
| Product Category: | Triacs |
| RoHS: | RoHS |
| T405 | |
| 31 A | |
| 600 V | |
| 5 uA | |
| 1.56 V | |
| 10 mA | |
| 1.3 V | |
| 5 mA | |
| – 40 C | |
| + 125 C | |
| Through Hole | |
| TO-220-3 | |
| Tube | |
| Brand: | STMicroelectronics |
| Current Rating: | 4 A |
| Product Type: | Triacs |
| Factory Pack Quantity: | 1000 |
| Subcategory: | Thyristors |
| Unit Weight: | 0.211644 oz |
TOPDIODE F0406-6D 4A 600V Triac Features
Glass Passivated Junctions
High voltage and surge capability
Low Thermal Resistance and Durability
Triggering in all four quadrants
TOPDIODE F0406-6D 4A 600V Triac APPLICATIONS
Static relays
Heating regulation
In-duction motor starting circuits
Phase control operation in light dimmers

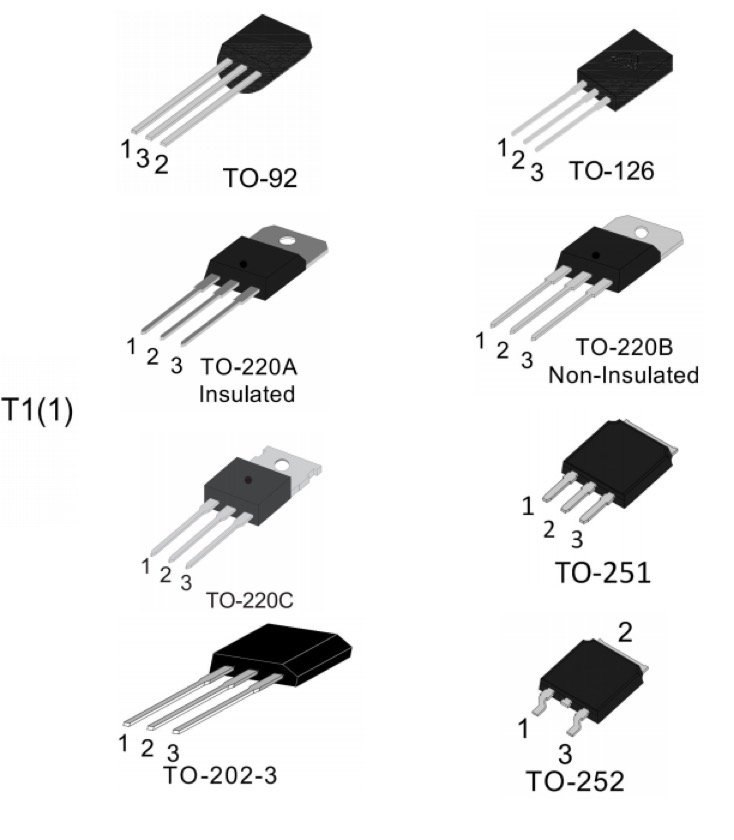

TOPDIODE F0406-6D 4A 600V Triac Package, Size include
TO-92 TO-126 TO-220A TO-220B TO-220C TO-251 TO-252 TO-202-3
TOPDIODE F0406-6D 4A 600V Triac Parameters Summary
VD/VR:600/800V
IT(RMS):4A
IGT:3mAto10mA

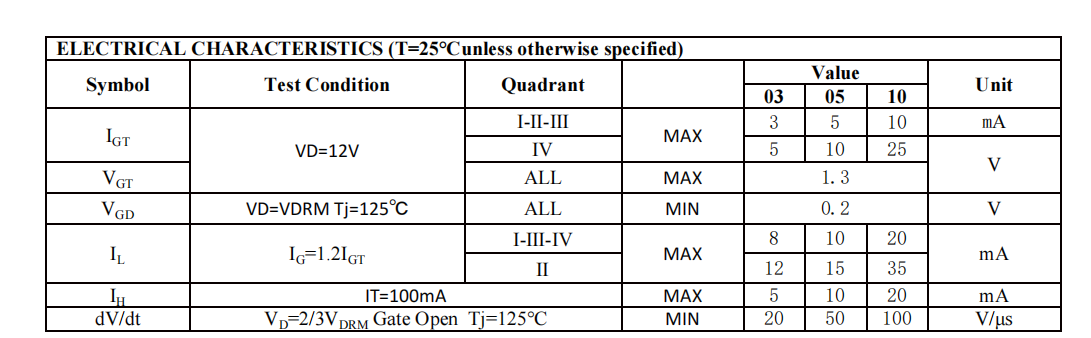

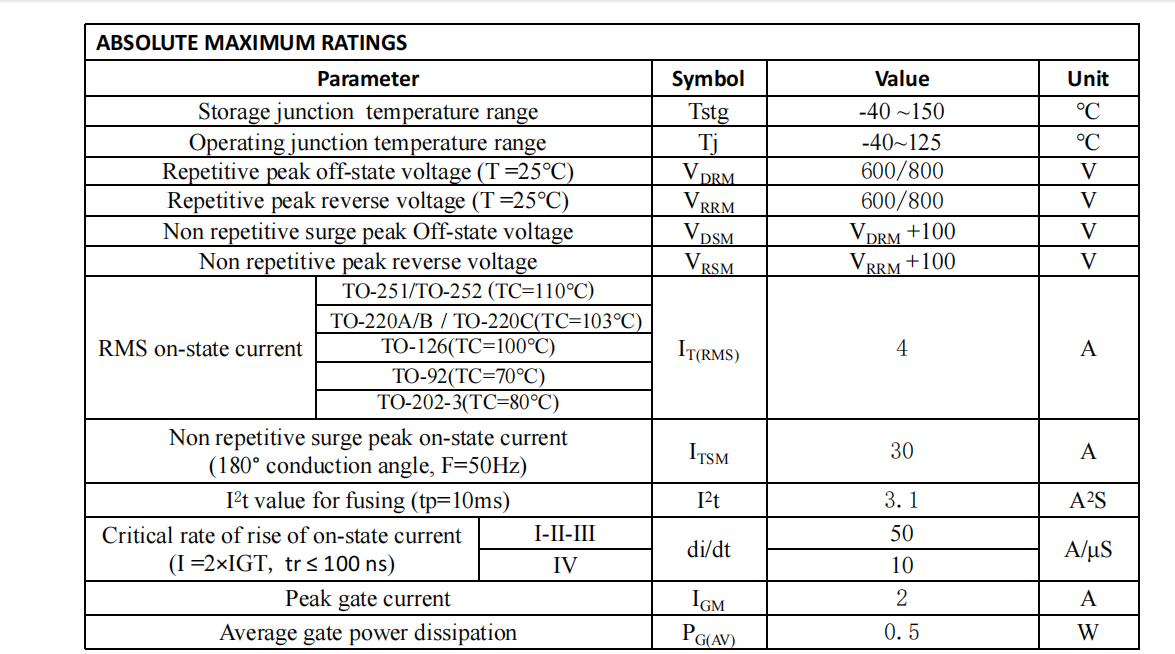

Below attached STMicroelectronics T405-600T’s spec and description for you to compare.
Conclusion
TOPDIODE offer a series of Triac with very competitive prices. Quality can replace STMicroelectronics T405-600T. Here you will find the cross guide for STMicroelectronics triac. We can help customer cost down a lot, and lead time is 3-4 weeks. If you are interested, pls contact sales@topdiode.com for datasheet and inquiry.
