Topdiode MBR series can perfectly replace Littelfuse MBRD type
A Schottky barrier rectifier, also known as a Schottky diode, is a semiconductor device that uses a metal-semiconductor junction instead of a p-n junction to achieve rectification, the process of allowing current to flow in one direction. They are characterized by a low forward voltage drop and fast switching speeds, making them suitable for various applications like low-voltage rectification, DC-to-DC conversion, and switching power supplies.
Littelfuse MBRD**CT series Schottky Barrier Rectifier is designed to meet the general requirements of commercial applications by providing high temperature, low leakage and low forward voltage drop products.
It is suitable for high frequency switching mode power Supply, free-wheeling diodes and polarity protection diodes.
Key Characteristics and Functionality
Metal-Semiconductor Junction
Low Forward Voltage Drop
Fast Switching Speed
MBRD**CT series Schottky Barrier Rectifier Applications
Switching mode power supply
Free-wheeling diodes
Dc–dc converters
Polarity protection diodes
Topdiode MBR**CT series can perfectly replace Littelfuse MBRD**CT type
MBR**CT series Schottky Barrier Rectifiers Feaures
High efficiencty operation
Low power loss
Low stored charge majority carrier conduction
High forward surge capability
Lead free in compliance with EU RoHS
2011/65/EU directive
Green molding compound as per IEC61249
Std..(Halogen Free)
MBR**CT series Schottky Barrier Rectifiers Mechanical Data
Circuit figure: Common cathode
Leads: Solderable per mil-std-202, Method 208
Polarity:as marked
Mounting torque: 5 in-lbs maximum
Terminals: Puretin plated
Weight:
TO-220AB 1.85 grams
ITO-220AB 1.70 grams
TO-252 0.35 grams
TO-263(D PAK) 1.35 grams

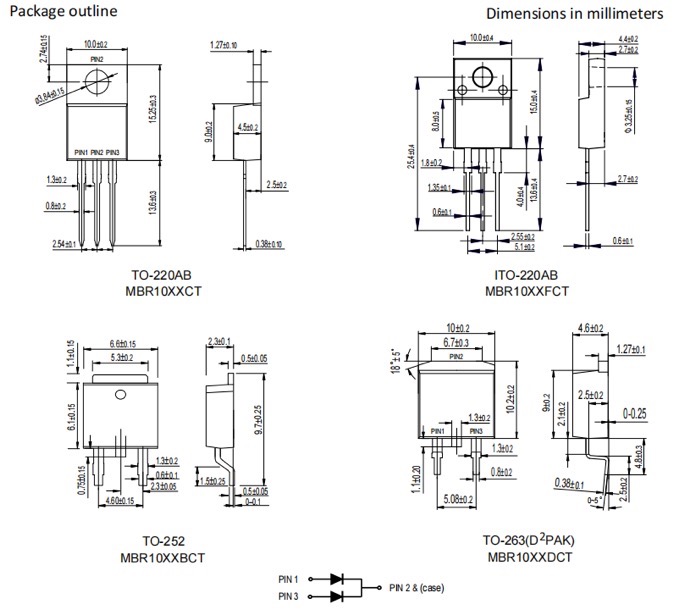

MBR**CT series Schottky Barrier Rectifiers package type:
MBR**CT series Schottky Barrier Rectifiers

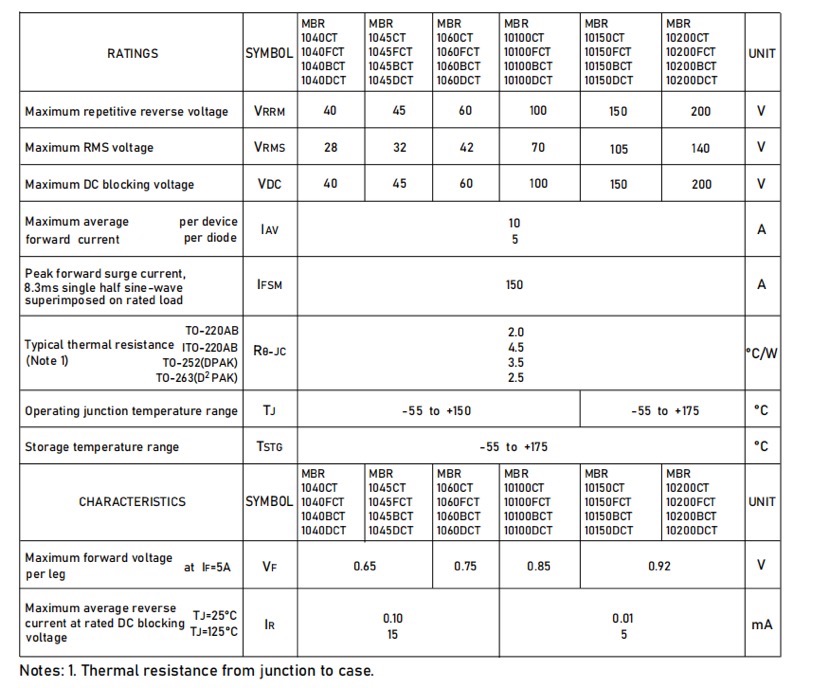

MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS (TA=25℃)
MBR**CT series Schottky Barrier Rectifiers

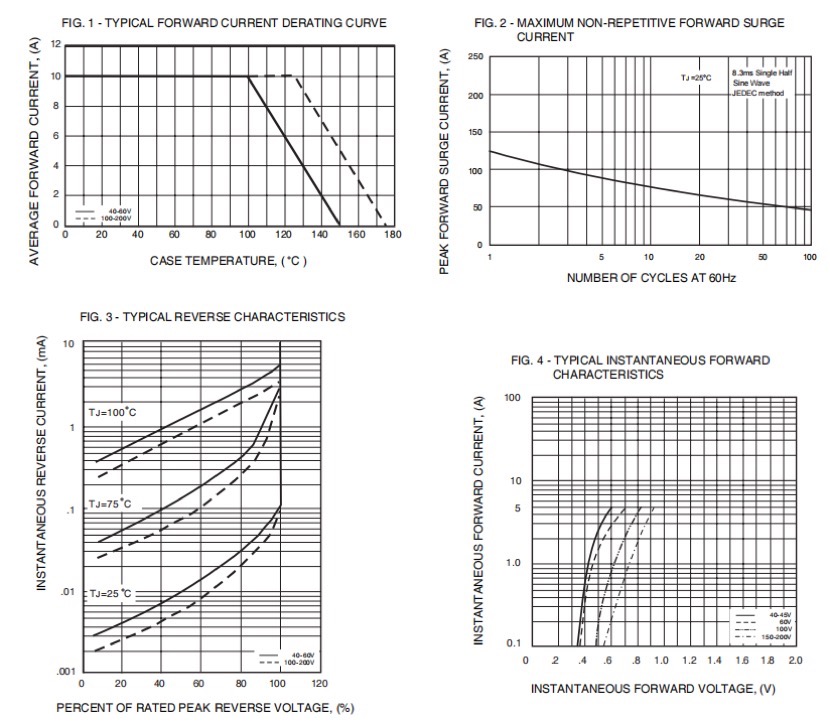

Characteristics (curves)
Topdiode offers different kinds of Schottky diode
The following several cross-corresponding items are provided for your reference
| Littelfuse MBRD | Topdiode Desription | P/N | SPQ |
| MBRD20100CT | MBR20100BCT TO-252 T&R RoHS | MBR20100BCT | 2.5K |
| MBRD20200CT | MBR20200BCT TO-252 T&R RoHS | MBR20200BCT | 2.5K |
| MBRD10200CT | MBR10200BCT TO-252 T&R RoHS | MBR10200BCT | 2.5K |
