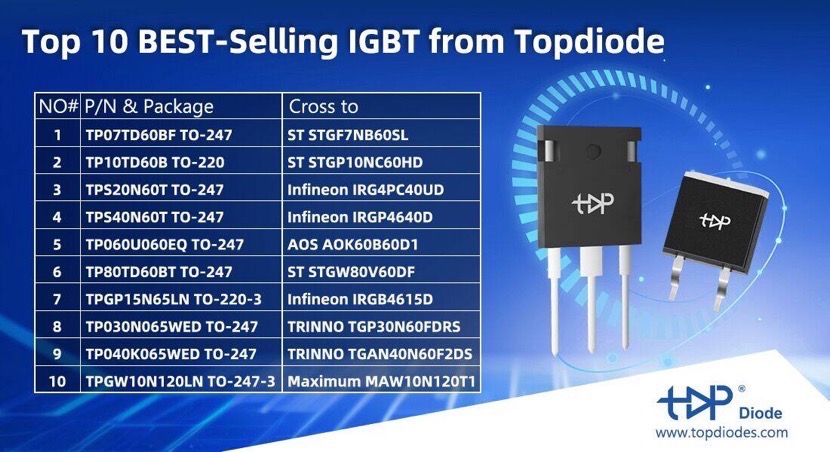

TP07TD60BF – Your High-Performance Drop-in Replacement for STGF7NB60SL IGBT
Is your design locked in with the STMicroelectronics STGF7NB60SL IGBT? Finding a reliable, high-quality replacement shouldn’t mean compromising on performance or compatibility. We’re excited to introduce our TP07TD60BF – a robust, pin-to-pin compatible IGBT designed specifically as a superior alternative to the STGF7NB60SL, offering excellent electrical characteristics and seamless integration.
Engineered for Seamless Replacement:
The TP07TD60BF is meticulously designed to match the critical specifications and footprint of the popular STGF7NB60SL. This means:
* True Pin-to-Pin Compatibility: Drop the TP07TD60BF directly into your existing STGF7NB60SL footprint on the PCB. No redesign, no layout headaches – just a smooth replacement process.
* Matching Core Electrical Parameters: Experience equivalent core performance with confidence:
* Collector-Emitter Voltage (V<sub>CES</sub>): 600V
* Collector Current (I<sub>C</sub>): 7A (Continuous @ 25°C)
Why Choose the TP07TD60BF?
Beyond being a direct replacement, the TP07TD60BF delivers the performance and reliability your applications demand:
* Robust Voltage Rating: The 600V V<sub>CES</sub> ensures dependable operation in common offline switching power supplies, PFC stages, motor drives, UPS systems, and inverters.
* Adequate Current Handling: The 7A continuous collector current rating makes it suitable for medium-power switching applications.
* Industry-Standard TO-247 Package: Provides excellent thermal management capabilities for efficient heat dissipation, contributing to stable operation and long-term reliability.
* High Quality & Reliability: Manufactured under stringent quality control processes adhering to international standards, ensuring consistent performance batch after batch.
* Competitive Advantage: Benefit from potentially shorter lead times and cost-effective sourcing without sacrificing quality or performance.
Ideal Applications
The TP07TD60BF is an excellent choice for replacing the STGF7NB60SL in various power conversion and control circuits, including:
* Switch Mode Power Supplies (SMPS) – particularly offline types
* Power Factor Correction (PFC) circuits
* Motor Control and Drives
* Uninterruptible Power Supplies (UPS)
* Inverters (e.g., for solar, welding)
* General Purpose Switching
Upgrade Your Sourcing Strategy with Confidence
Don’t let component shortages or supply chain disruptions stall your production. The TP07TD60BF offers a viable, high-quality solution designed to seamlessly replace the STMicroelectronics STGF7NB60SL in your existing designs. Experience the reliability and performance you need, backed by our commitment to quality.
Ready to make the switch?
please visit our website:https://www.topdiodes.com
Or send inquiry to : Luna@topdiode.com
