TP30H80Q: The High-Performance Alternative to Vishay SIS402DN MOSFET

Introduction to TP30H80Q

In the rapidly evolving world of electronics manufacturing, the quest for reliable component alternatives has become increasingly crucial for maintaining supply chain resilience and competitive advantage. The TP30H80Q from Topdiode stands out as an exceptional substitute for the Vishay SIS402DN MOSFET, offering engineers and procurement specialists a viable solution without compromising on performance or quality. This comprehensive article explores the technical specifications, advantages, and practical considerations of implementing TP30H80Q in various electronic designs.

As semiconductor component lifecycles frequently fall short of product lifecycles, finding appropriate alternatives has become a standard practice in the industry. According to a paper from the University of Maryland, “Many of the electronic parts that compose a product have a life cycle that is significantly shorter than the life cycle of the product” . This reality underscores the importance of having reliable alternatives like TP30H80Q when original components become obsolete, face supply constraints, or no longer meet cost objectives.

Product Overview

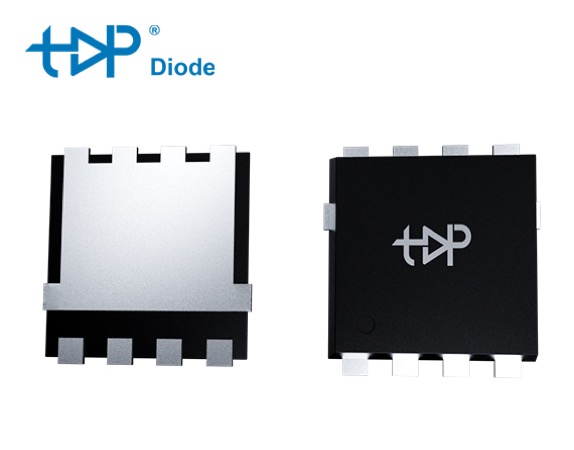

The TP30H80Q represents Topdiode’s commitment to manufacturing high-quality discrete semiconductors that meet the rigorous demands of contemporary electronics. As an N-Channel MOSFET, this component is engineered to deliver exceptional switching performance and power efficiency in a compact package. With its advanced semiconductor technology, TP30H80Q ensures minimal power loss while handling significant current loads, making it an ideal choice for power management applications across various industries.

Topdiode, as a leading manufacturer and supplier of discrete components in China, has established itself as a reliable source for diodes, transistors, and other semiconductor devices since 1996 . The company’s manufacturing facilities have achieved ISO-9001:2008 and ISO14001:2004 certifications, reflecting their commitment to quality and environmental responsibility . With headquarters and manufacturing facilities in Hunan Province & JiNan, ShanDong Province, and sales offices in Dongguan, Topdiode has built a reputation for serving diverse sectors including consumer electronics, computing, communications, and industrial markets .

Technical Specifications

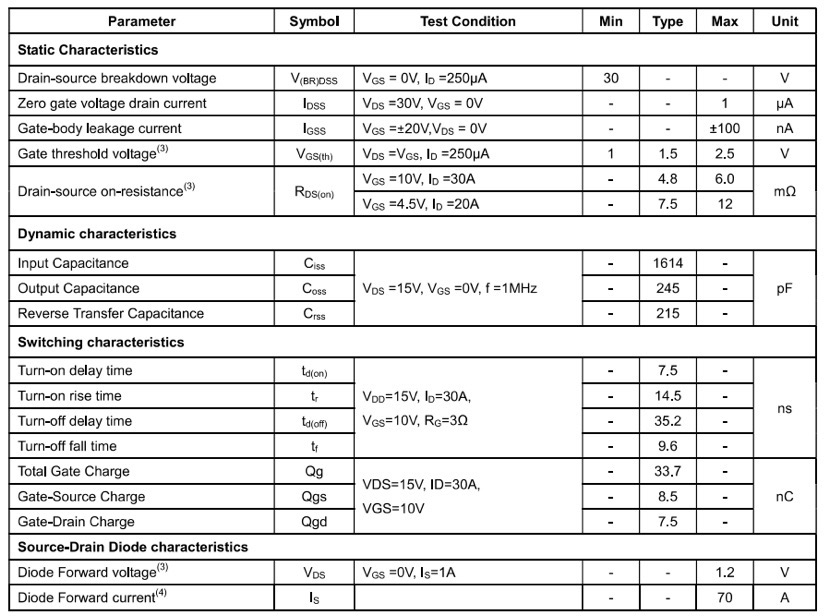

Key Parameters of TP30H80Q



Advantages of TP30H80Q as Replacement for SIS402DN



Enhanced Performance Characteristics

The TP30H80Q offers several performance advantages that make it an excellent replacement for the Vishay SIS402DN. With its lower on-state resistance maintained across various gate drive voltages, TP30H80Q ensures reduced conduction losses, leading to higher system efficiency and reduced heat generation. This characteristic is particularly valuable in power-intensive applications where thermal management is a critical concern.

The component’s advanced trench technology enables faster switching speeds, making it suitable for high-frequency applications such as switch-mode power supplies and motor drive circuits. The optimized gate charge characteristics ensure that the MOSFET can be driven efficiently without excessive demands on the gate drive circuitry, simplifying design considerations for engineers.

Thermal Management Excellence

Thermal performance is a crucial factor in power MOSFET selection, and TP30H80Q excels in this aspect. The innovative package design of the 1212-8 format provides superior thermal conductivity compared to conventional packages. This enhanced thermal performance allows for better heat dissipation, enabling the device to handle higher current loads without derating.

The low thermal resistance junction-to-case (RθJC) of TP30H80Q ensures that heat generated during operation is efficiently transferred away from the silicon die, maintaining lower operating temperatures and enhancing long-term reliability. This characteristic is particularly important in applications where continuous operation at high loads is required.

Application Scenarios



Power Management Systems

TP30H80Q is exceptionally well-suited for various power management applications, including:

• DC-DC Converters: Its low Rds(on) and fast switching characteristics make it ideal for buck, boost, and buck-boost converter topologies in computing and telecommunications equipment.
• Voltage Regulation Modules: The MOSFET’s efficiency and thermal performance suit it for VRM applications in servers, workstations, and gaming systems.
• Power Supply Units: TP30H80Q can be implemented in both primary and secondary sides of switch-mode power supplies for computers, industrial equipment, and consumer electronics.



Motor Control and Driving Circuits

The high current handling capability and robust construction of TP30H80Q make it an excellent choice for motor control applications:

• Brushless DC Motor Drives: The component’s switching performance is ideal for the electronic commutation circuits in BLDC motors used in automotive applications, industrial automation, and consumer appliances.
• Stepper Motor Drivers: TP30H80Q can be implemented in chopper drives for precise stepper motor control in 3D printers, CNC machines, and robotics.
• H-Bridge Configurations: The MOSFET’s symmetric characteristics make it suitable for H-bridge configurations in bidirectional motor control applications.



Automotive and Industrial Systems

With its rugged design and reliable performance across temperature ranges, TP30H80Q finds applications in demanding environments:

• Automotive Systems: Engine control units, lighting systems, power distribution modules, and electric power steering systems.
• Industrial Automation: PLCs, motor drives, robotic controllers, and power distribution systems.
• Renewable Energy: Solar charge controllers, power optimizers, and battery management systems.



Implementation Guidelines



Circuit Design Considerations

When implementing TP30H80Q as a replacement for SIS402DN in existing designs or new developments, several design considerations should be addressed:

• Gate Driving Requirements: Ensure the gate driver circuit can supply adequate current to charge the 28nC gate capacitance at the desired switching speed. A gate driver with at least 2A peak current capability is recommended for optimal performance.
• PCB Layout Recommendations: Implement best practices for power MOSFET layout, including minimal loop areas for high-frequency current paths, adequate copper area for heat dissipation, and proper placement of decoupling capacitors.
• Protection Circuits: Incorporate appropriate protection features such as overcurrent detection, overtemperature monitoring, and under-voltage lockout to ensure reliable operation under abnormal conditions.



Thermal Management Solutions

• Proper thermal managementis crucial for maximizing the performance and longevity of TP30H80Q in high-power applications:
• PCB Thermal Design: Utilize sufficient copper area on the PCB for heat spreading. A minimum of 2-4 square centimeters of copper connected to the drain pins is recommended for effective heat dissipation.
• Heatsink Considerations: For applications with continuous high-current operation, consider implementing a dedicated heatsink to maintain junction temperatures within safe operating limits.
• Thermal Interface Materials: When using heatsinks, select appropriate thermal interface materials to minimize thermal resistance between the package and heatsink surface.

Replacement Implementation Strategy

When replacing Vishay SIS402DN with TP30H80Q in existing designs, follow these implementation steps for a smooth transition:

1. Verification Check: Confirm that the operating conditions in your application align with TP30H80Q’s specifications, paying particular attention to voltage stresses, current requirements, and thermal constraints.
2. Footprint Compatibility: Verify that the 1212-8 package dimensions are compatible with your existing PCB layout. While TP30H80Q uses the same package designation, minor adjustments might be necessary depending on your specific design.
3. Gate Drive Assessment: Evaluate your existing gate drive circuit to ensure compatibility with TP30H80Q’s gate charge characteristics.
4. Prototype Testing: Always conduct thorough testing of prototypes under normal and extreme operating conditions to validate performance and reliability.
5. Long-term Reliability Validation: For critical applications, perform accelerated life testing to ensure long-term reliability matches your product requirements.



Conclusion

The TP30H80Q emerges as a highly competitive alternative to Vishay SIS402DN, offering comparable electrical characteristics with potential advantages in current handling, thermal performance, and cost-effectiveness. As electronic components face varying availability and lifecycle challenges, having reliable alternatives like TP30H80Q ensures design continuity and supply chain resilience.
