What is a Glass Passivated Bridge Rectifier and How is it Used?
A glass passivated bridge rectifier is an electronic component that converts alternating current (AC) to direct current (DC) through the use of four diodes arranged in a bridge configuration. The glass passivation process encapsulates the diodes in a protective layer of glass, which enhances their reliability and stability by protecting them from environmental contaminants and mechanical stress. This type of bridge rectifier is commonly used in various applications, including power supplies, motor control, and battery charging systems, due to its high efficiency, low power loss, and ability to handle high voltages and currents.
Importance and Applications
The significance of glass passivated bridge rectifiers lies in their versatility and efficiency. They are indispensable in numerous applications, including:
- Power Supplies: These rectifiers form the backbone of many power supply units, converting the AC from the mains into a usable DC form for electronic circuits.
- Motor Control: In variable speed drives and motor control systems, they ensure efficient power conversion, reducing energy loss and heat generation.
- Battery Charging Systems: They play a vital role in charging batteries by converting AC from the grid or a generator into DC suitable for battery charging.
- Industrial Equipment: Many industrial processes require stable DC power sources, where these rectifiers prove their mettle.
Overall, the adoption of glass passivated bridge rectifiers has revolutionized the way we harness and utilize electrical energy, making our electronic devices more efficient and reliable.
What are the key differences between a glass passivated bridge rectifier and a standard bridge rectifier?
Glass passivated bridge rectifiers differ from standard bridge rectifiers primarily in their construction and protective features. While both utilize a bridge configuration of four diodes for AC to DC conversion, glass passivated models have an additional layer of glass encapsulation around the diodes. This glass coating serves multiple purposes: it protects the diodes from environmental contaminants like moisture and dust, which can degrade performance over time; it also enhances mechanical stability, reducing the likelihood of damage due to physical stress or vibration. Furthermore, the glass passivation process can improve thermal management by dissipating heat more efficiently, thereby increasing the overall reliability and lifespan of the component. In summary, glass passivated bridge rectifiers offer superior protection, durability, and potentially longer service life compared to their non-passivated counterparts.

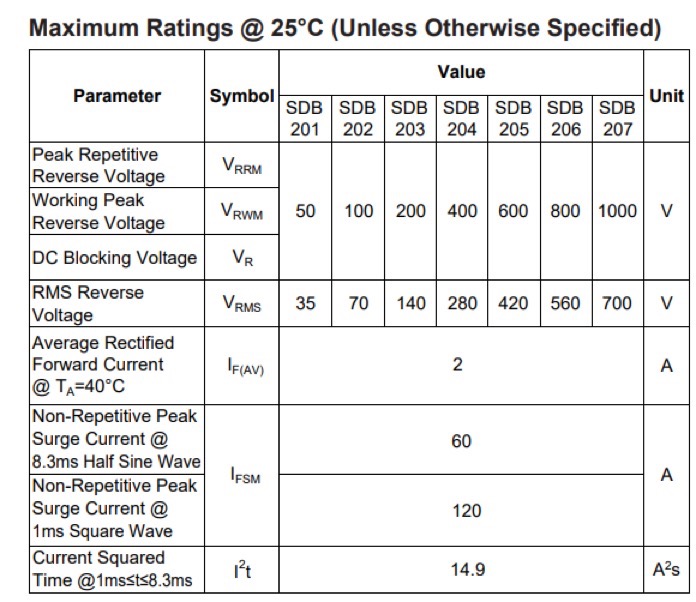

MCC 2 Amp Single Phase Bridge Rectifier 50V to 1000V, SDB201 THRU SDB207
Features:
* Halogen Free. “Green” Device
* Glass Passivated Chip Junction
* Moisture Sensitivity Level 1
* Surface Mount Package
* Epoxy Meets UL 94 V-0 Flammability Rating
* Lead Free Finish/RoHS Compliant
GLASS PASSIVATED BRIDGE RECTIFIERS DB201S THRU DB207S can perfectly replace MCC SDB201 THRU SDB207
FEATURES
* Ideal for printed circuit board
* Reliable low cost construction utilizing
* molded plastic technique
* High temperature soldering guaranteed: 250*/10 seconds / 0.375”(9.5mm)
* led length at 5 lbs., (2.3kg)tension
* Small size, simple installation
* Leads solderable per MIL-STD-202, Method 208
* High surge current capability
MECHANICAL DATA
* Case: Molded plastic body
* Terminals: Plated leads solderable per MIL-STD-750, Method 2026
* Polarity: Polarity symbols marked on case
* Mounting Position: Any
* Weight:0.04 ounce, 1.0 grams

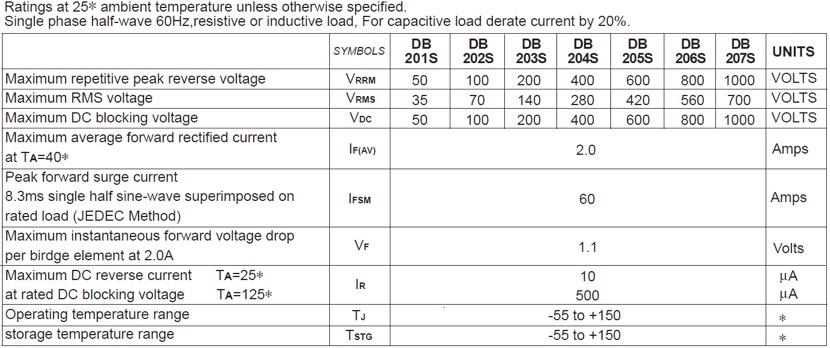

MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS

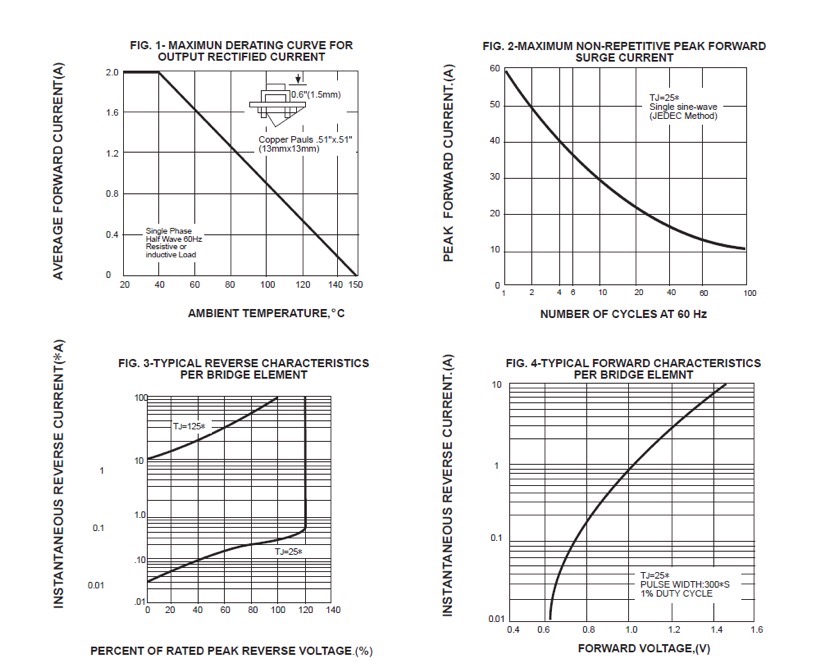

ELECTRICAL CHARACTERISTICS (curves)
