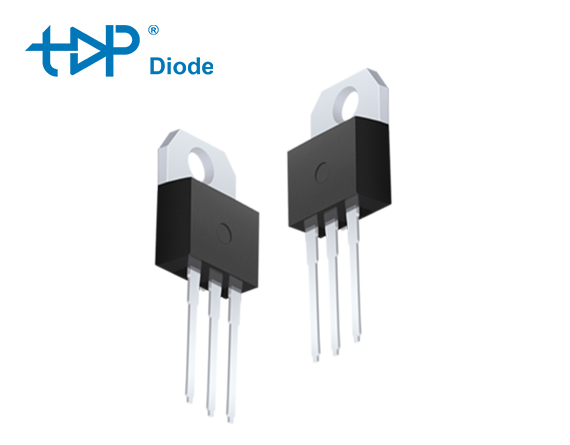

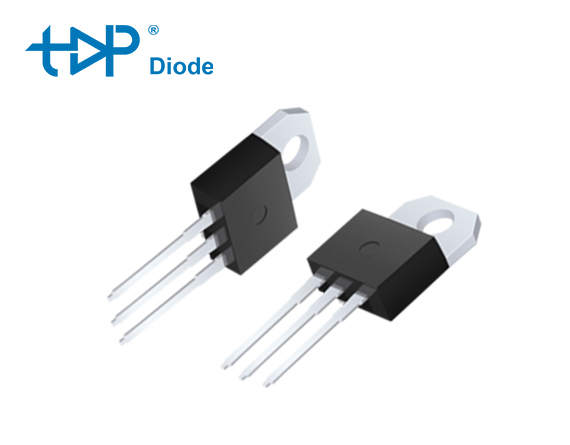

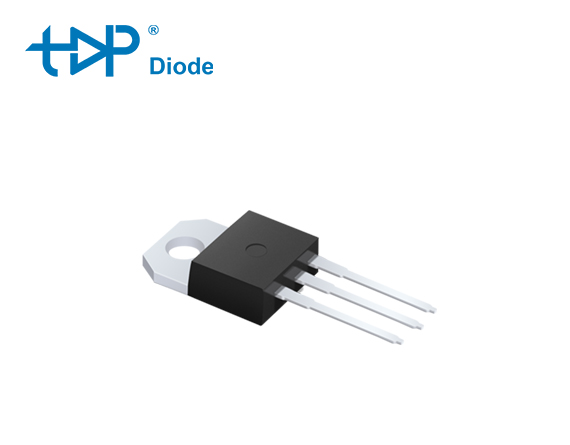

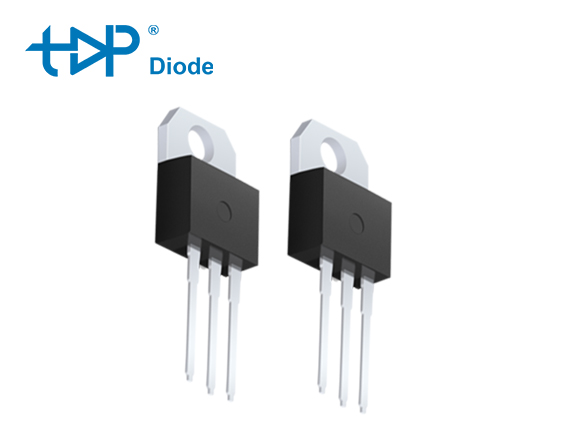

Schottky Barrier Diode MBR15100CT - Topdiode
- Low power loss, high efficiency
- Guard ring for overvoltage protection
- High surge current capability
- RoHS Compliant
- Halogen-free according to IEC 61249-2-21
Schottky Barrier Diode MBR15100CT - Topdiode

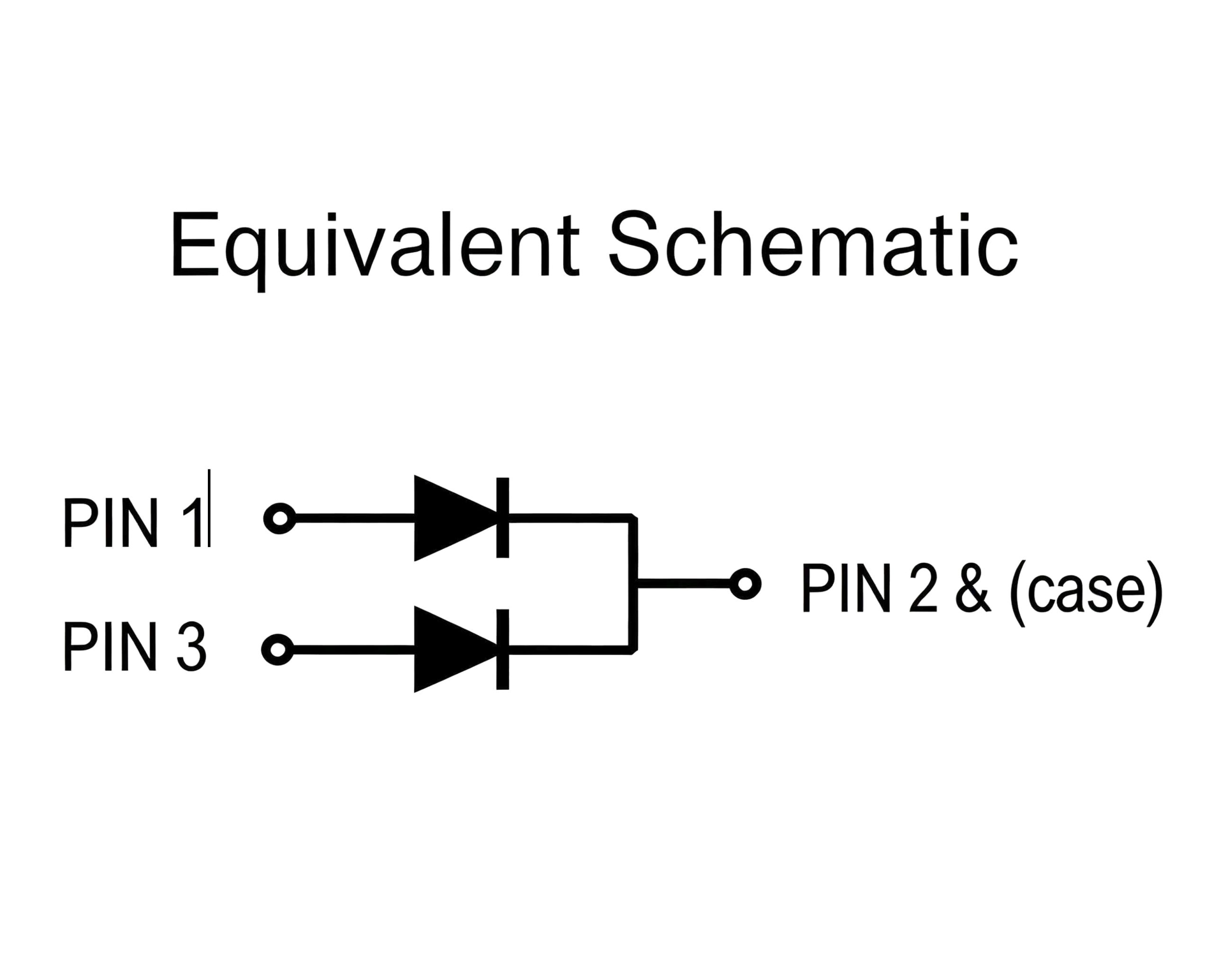

Topdiode MBR15CT Series is a family of high-efficiency dual Schottky barrier rectifiers designed for high-frequency switching applications. The series includes multiple voltage ratings from 40V to 200V, with a common cathode configuration. These devices feature low forward voltage drop, low power loss, and high forward surge capability, making them ideal for use in SMPS, AC/DC and DC/DC converters.
Topdiode MBR15100CT is a great alternative offer for TSC MBR15100CT.
Topdiode Schottky Barrier Diode MBR15100CT DATA
- Tab
| MBR | MBR | MBR | MBR | MBR | MBR | ||||
| 1540CT | 1545CT | 1560CT | 15100CT | 15150CT | 15200CT | ||||
| SYMBOL | 1540FCT 1540WCT |
1545FCT 1545WCT |
|||||||
| 1560FCT 1560WCT |
15100FCT 15100WCT |
15150FCT 15150WCT |
|||||||
| RATINGS | 15200FCT 15200WCT |
UNIT | |||||||
| 1540DCT | 1545DCT | 1560DCT | 15100DCT | 15150DCT | 15200DCT | ||||
| Maximum repetitive reverse voltage | VRRM | 40 | 45 | 60 | 100 | 150 | 200 | V | |
| Maximum RMS voltage | VRMS | 28 | 32 | 42 | 70 | 105 | 140 | V | |
| Maximum DC blocking voltage | VDC | 40 | 45 | 60 | 100 | 150 | 200 | V | |
| Maximum average per device forward current per diode |
IAV | 15 7.5 |
A | ||||||
| Peak forward surge current, 8.3ms single half sine-wave superimposed on rated load | IFSM | 150 | A | ||||||
| TO-220AB Typical thermal resistance ITO-220AB (Note 1) TO-262AB |
Rθ-JC | 2.0 4.5 2.5 |
°C/W | ||||||
| TO-263(D2 PAK) | 2.5 | ||||||||
| Operating junction temperature range | TJ | -55 to +150 | -55 to +175 | °C | |||||
| Storage temperature range | TSTG | -55 to +175 | °C | ||||||
| MBR | MBR | MBR | MBR | MBR | MBR | ||||
| 1540CT | 1545CT | 1560CT | 15100CT | 15150CT | 15200CT | ||||
| SYMBOL | 1540FCT 1540WCT |
1545FCT 1545WCT |
1560FCT 1560WCT |
15100FCT 15100WCT |
|||||
| CHARACTERISTICS | 15150FCT 15150WCT |
15200FCT 15200WCT |
UNIT | ||||||
| 1540DCT | 1545DCT | 1560DCT | 15100DCT | 15150DCT | 15200DCT | ||||
| Maximum forward voltage at IF=7.5A per leg | VF | 0.65 | 0.75 | 0.85 | 0.92 | V | |||
| Maximum average reverse TJ=25°C current at rated DC blocking TJ=125°C voltage | IR | 0.10 15 |
0.01 5 |
mA | |||||
