Schottky Barrier Rectifiers MBR60100PT -Topdiode
- High efficiencty operation and Low power loss
- Low stored charge majority carrier conduction
- High forward surge capability
- Lead free in compliance with EU RoHS
- 2011/65/EU directive
- Green molding compound as per IEC61249 Std..(Halogen Free)
Schottky Barrier Rectifiers MBR60100PT Topdiode

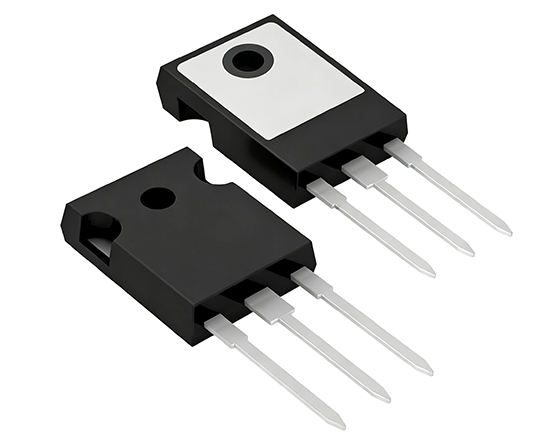

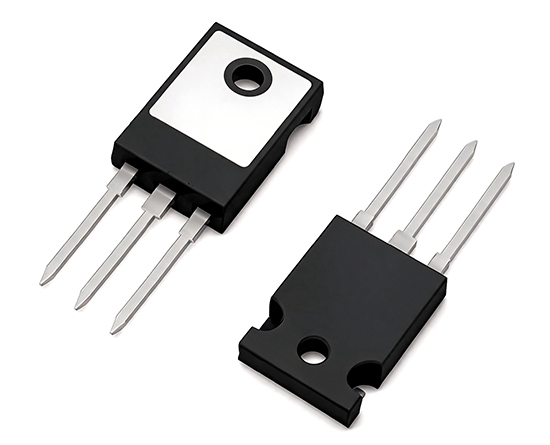

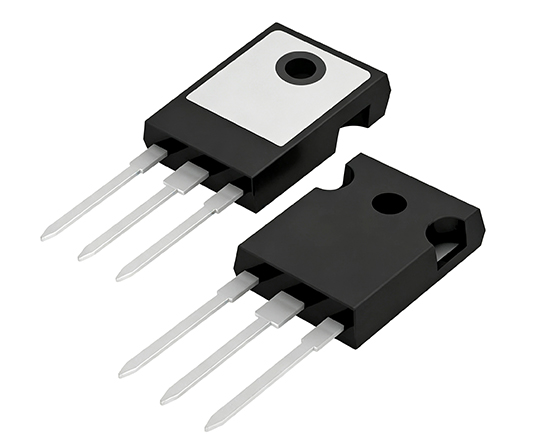

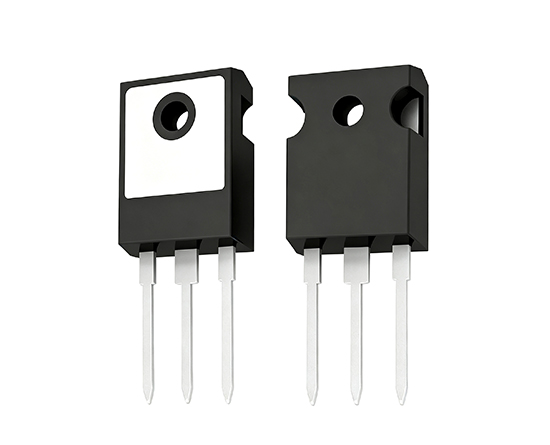

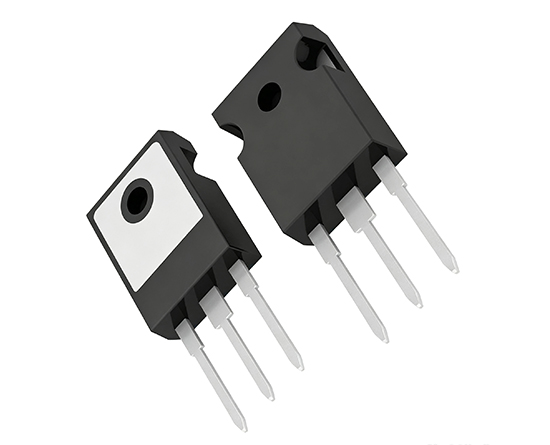

Topdiode MBR60100PT is a 60A (2 x 30A) dual common-cathode Schottky rectifier packaged in a TO-247AD case. It handles a 100V repetitive peak reverse voltage, supports high-frequency operation.
Topdiode MBR60100PT is a nice alternative offer for Vishay 63CPQ100
Topdiode Schottky Barrier Rectifiers MBR60100PT DATA
- Tab
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS (TA=25°C)
| RATINGS | SYMBOL | MBR6040PT | MBR6045PT | MBR6060PT | MBR60100PT | MBR60150PT | MBR60200PT | UNIT |
| Maximum repetitive reverse voltage | VRRM | 40 | 45 | 60 | 100 | 150 | 200 | V |
| Maximum RMS voltage | VRMS | 28 | 32 | 42 | 70 | 105 | 140 | V |
| Maximum DC blocking voltage | VDC | 40 | 45 | 60 | 100 | 150 | 200 | V |
| Maximum average per device
forward current per diode |
IAV | 6030 | A | |||||
| Peak forward surge current, 8 .3ms single half sine-wave superimposed on rated load |
IFSM | 580 | A | |||||
| Typical thermal resistance (Note 1) |
Rθ-JC | 1.5 | °C/W | |||||
| Operating junction temperature range | TJ | -55 to +150 | -55 to +175 | °C/W | ||||
| Storage temperature range | TSTG | -55 to +175 | °C/W | |||||
| CHARACTERISTICS | SYMBOL | MBR6040PT | MBR6045PT | MBR6060PT | MBR60100PT | MBR60150PT | MBR60200PT | UNIT |
| Maximum forward voltage per leg at IF=30A | VF | 0.65 | 0.75 | 0.85 | 0.95 | V | ||
| Maximum average reverse TJ=25°C
current at rated DC blocking voltage TJ=100°C |
IR | 0.1 30 |
0.02 10 |
0.01 5 |
mA | |||
