Schottky Barrier Rectifiers MBR4045PT -Topdiode
- High efficiencty operation and Low power loss
- Low stored charge majority carrier conduction
- High forward surge capability
- Lead free in compliance with EU RoHS
- 2011/65/EU directive
- Green molding compound as per IEC61249 Std..(Halogen Free)
Schottky Barrier Rectifiers MBR4045PT -Topdiode

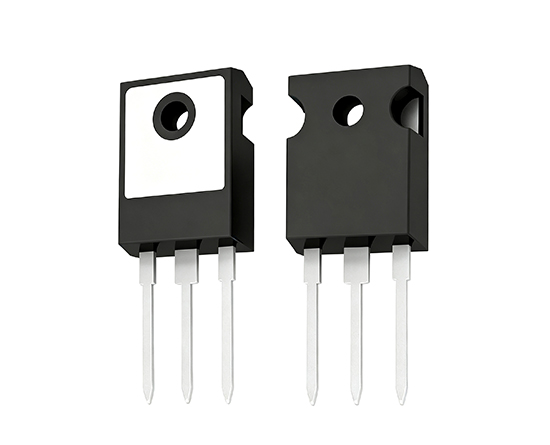

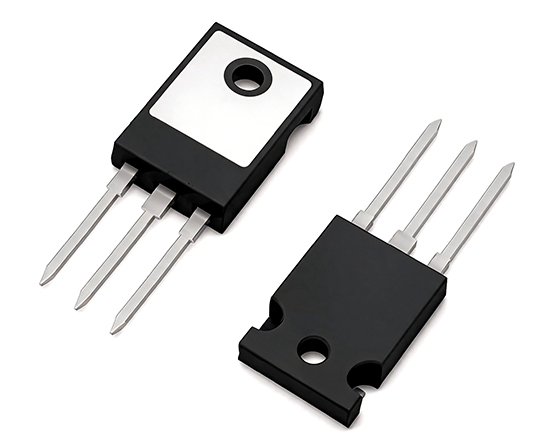

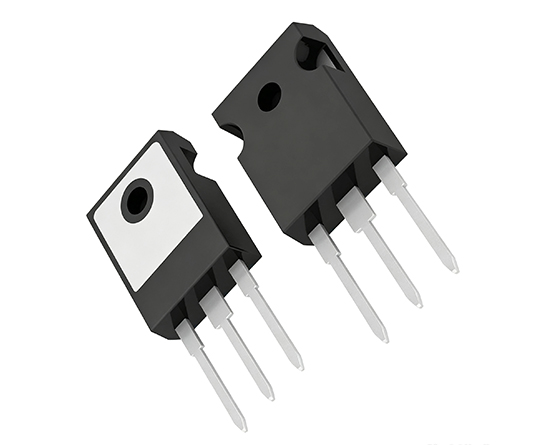

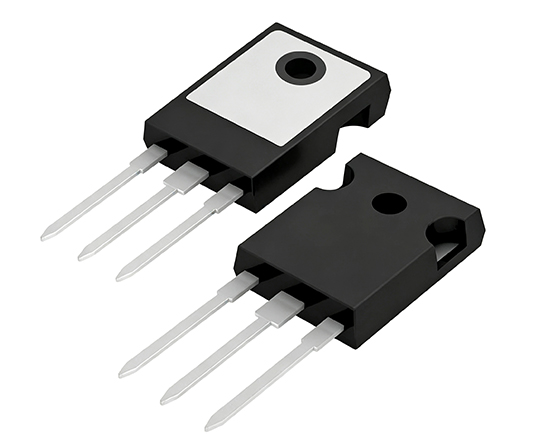

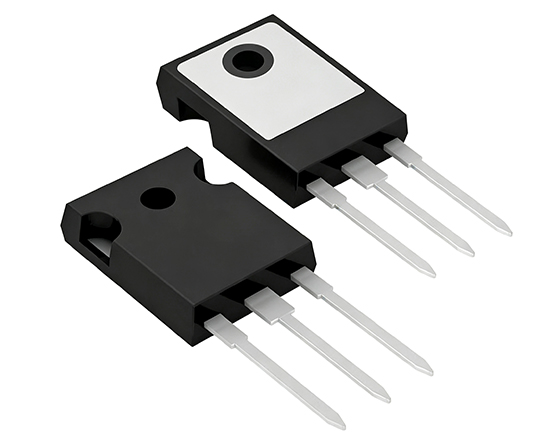

Topdiode MBR4045PT is a is a 45V, 40A high-performance center-tap Schottky rectifier diode packaged in a 3-pin TO-247AD case, featuring dual common-cathode diodes (20A per leg) designed for low forward voltage drop and fast high-frequency switching
Topdiode MBR4045PT is a nice alternative offer for Vishay 40CPQ045
Topdiode Schottky Barrier Rectifiers MBR4045PT DATA
- Tab
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS (TA=25°C)
| RATINGS | SYMBOL | MBR4040PT | MBR4045PT | MBR4060PT | MBR40100PT | MBR40150PT | MBR40200PT | UNIT |
| Maximum repetitive reverse voltage | VRRM | 40 | 45 | 60 | 100 | 150 | 200 | V |
| Maximum RMS voltage | VRMS | 28 | 32 | 42 | 70 | 105 | 140 | V |
| Maximum DC blocking voltage | VDC | 40 | 45 | 60 | 100 | 150 | 200 | V |
| Maximum average per device forward current per diode |
IAV | 40 | A | |||||
| 20 | ||||||||
| Peak forward surge current, 8 .3ms single half sine-wave superimposed on rated load | IFSM | 380 | A | |||||
| Typical thermal resistance (Note 1) | Rθ-JC | 1.5 | °C/W | |||||
| Operating junction temperature range | TJ | -55 to +150 | -55 to +175 | °C | ||||
| Storage temperature range | TSTG | -55 to +175 | °C | |||||
| CHARACTERISTICS | SYMBOL | MBR4040PT | MBR4045PT | MBR4060PT | MBR40100PT | MBR40150PT | MBR40200PT | UNIT |
| Maximum forward voltage per leg IF=20A | VF | 0.65 | 0.75 | 0.85 | 0.95 | V | ||
| Maximum average reverse TJ=25°C current at rated DC blocking voltage TJ=100°C |
IR | 0.1 | 0.02 | 0.01 | mA | |||
| 30 | 10 | 5 | ||||||
