Topdiode DSC1065 is a nice alternative offer for Infineon Technologies IDH10G65C6XKSA1
- Low Forward Voltage
- Fast Swiching Speed
- Negligible Reverse Recovery Current
- 175°Maximum Operating Temperature
- Lead freeincompliance withEURoHS
- 2011/65/EU directive
- GreenmoldingcompoundasperIEC61249
- Std..(HalogenFree)

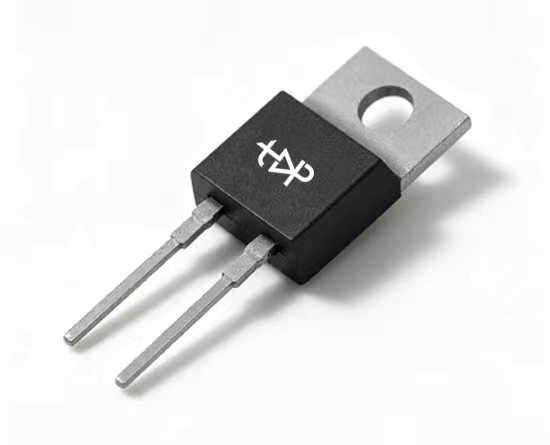

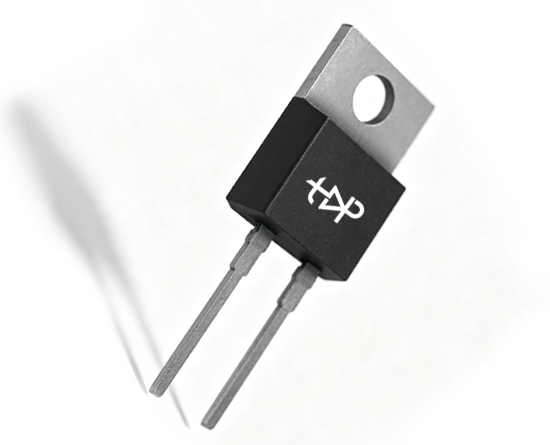

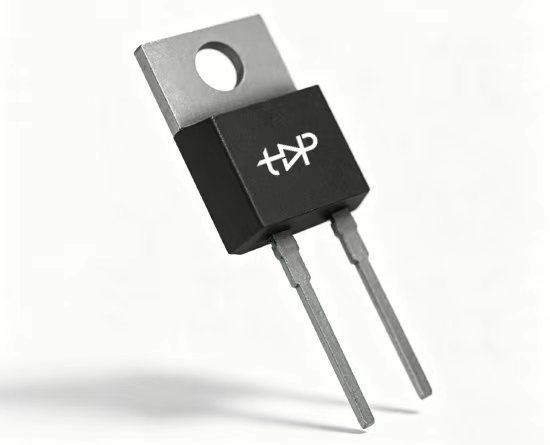

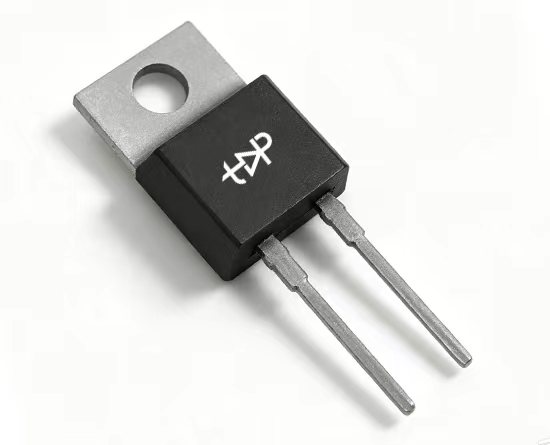

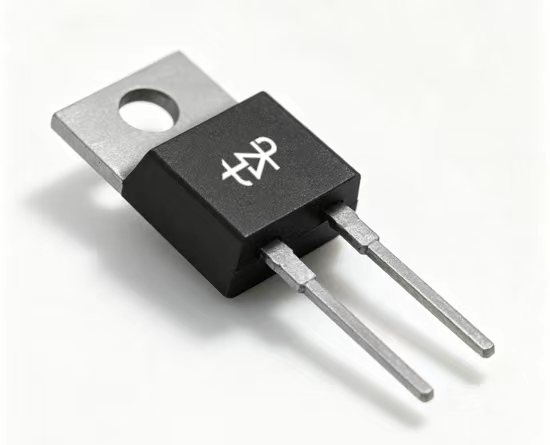

SiC Schottky Barrier Rectifiers DSC1065 Topdiode
Topdiode DSC1065 is a 50 V, 10 A CoolSiC™ Schottky diode in a TO-220 package. Its key advantage is zero reverse-recovery charge, making it suitable for high-frequency, high-efficiency power conversion.
Topdiode DSC1065 is a nice alternative offer for Infineon Technologies IDH10G65C6XKSA1
Topdiode SiC Schottky Barrier Rectifiers DSC1065 DATA
- Tab
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS(TA = 25°C)
| RATINGS | SYMBOL | UNIT | |
| Maximum repetitive reverse voltage | VRRM | 650 | V |
| Maximum RMS voltage | VRMS | 70 | V |
| Maximum DC blocking voltage | VDC | 650 | V |
| Maximum average forward current | IAV | 10 | A |
| Peak forward surge current,8.3ms single half sine-wave superimposed on rated load | IFSM | 50 | A |
| Typical thermal resistance (Note 1) TO-220AC ITO-220AC | Rθ-JC | 2 | °C/W |
| 4.5 | |||
| Operating junction temperature range | TJ | -55 to +175 | °C |
| Storage temperature range | TSTG | -55 to +175 | °C |
| CHARACTERISTICS | SYMBOL | UNIT | |
| Maximum forward voltage at IF=10A TJ=25°C TJ=175°C | VF | 1.5 | 1.7 |
| 2 | – | ||
| Maximum average reverse current at rated DC blocking voltage TJ=25°C TJ=175°C | IR | 50 | uA |
| 500 | |||
| Total capacitive charge VR=400V | Qc | 23 | nC |
| VR=1V f=1MHz | C | 535 | pF |
| Total capacitance VR=520V f=1MHz | 55 |
