Topdiode MBR20100DCT is a nice alternative offer for STMicroelectronics STPS20H100CG-TR
- High efficiencty operation
- Low power loss
- Low stored charge majority carrier conduction
- High forward surge capability
- Lead free in compliance with EU RoHS 2011/65/EU directive
- Green molding compound as per IEC61249 Std..(Halogen Free)

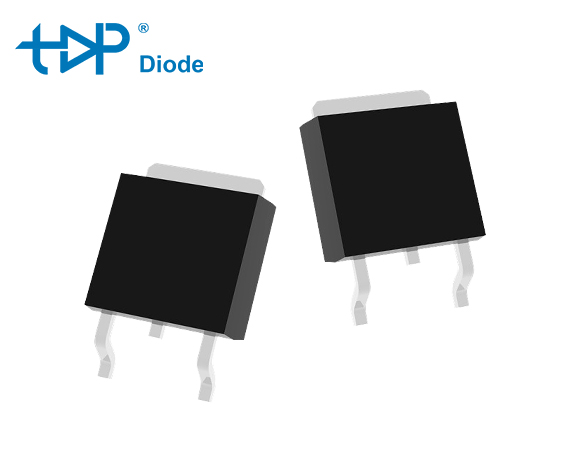

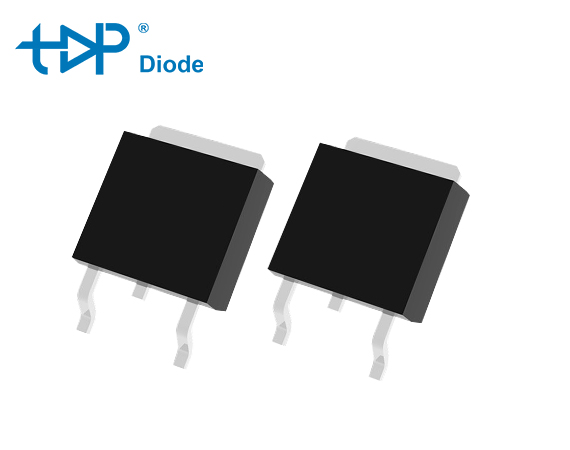

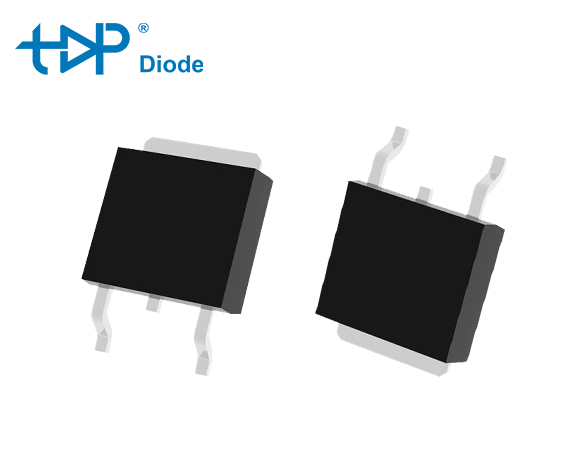

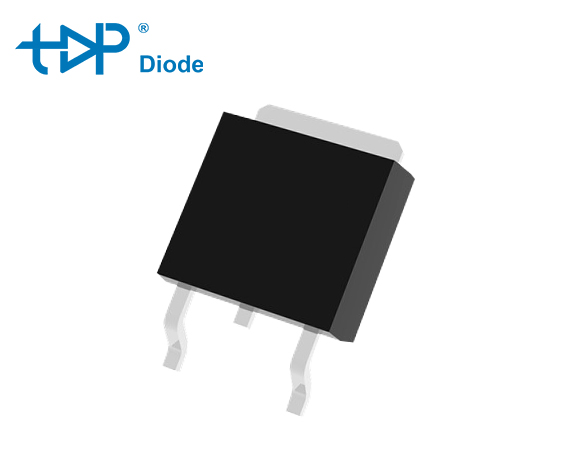

Topdiode Schottky Barrier Rectifiers MBR20100DCT
MBR20100DCT is a 20A, 100V Schottky Barrier Rectifier in a TO-263 package, featuring low forward voltage drop, fast switching speed, and high current capability. It is designed for high-efficiency power conversion applications including SMPS, DC/DC converters, and industrial power systems.
Topdiode MBR20100DCT is a nice alternative offer for STMicroelectronics STPS20H100CG-TR .
Topdiode Schottky Barrier Rectifiers MBR20100DCT
- Tab
| RATINGS | SYMBOL | MBR 2040CT 2040FCT 2040BCT 2040DCT |
MBR 2045CT 2045FCT 2045BCT 2045DCT |
MBR 2060CT 2060FCT 2060BCT 2060DCT |
MBR 20100CT 20100FCT 20100BCT 20100DCT |
MBR 20150CT 20150FCT 20150BCT 20150DCT |
MBR 20200CT 20200FCT 20200BCT 20200DCT |
UNIT | |
| Maximum repetitive reverse voltage | VRRM | 40 | 45 | 60 | 100 | 150 | 200 | V | |
| Maximum RMS voltage | VRMS | 28 | 32 | 42 | 70 | 105 | 140 | V | |
| Maximum DC blocking voltage | VDC | 40 | 45 | 60 | 100 | 150 | 200 | V | |
| Maximum average per device forward current per diode |
IAV | 20 10 |
A | ||||||
| Peak forward surge current, 8.3ms single half sine-wave superimposed on rated load | IFSM | 220 | A | ||||||
| TO-220AB Typical thermal resistance (Note 1) ITO-220AB TO-252 TO-263(D2 PAK) |
Rθ-JC | 2.5 4.5 3.5 2.5 |
°C/W | ||||||
| Operating junction temperature range | TJ | -55 to +150 | -55 to +175 | °C | |||||
| Storage temperature range | TSTG | -55 to +175 | °C | ||||||
| CHARACTERISTICS | SYMBOL | MBR 2040CT 2040FCT 2040BCT 2040DCT |
MBR 2045CT 2045FCT 2045BCT 2045DCT |
MBR 2060CT 2060FCT 2060BCT 2060DCT |
MBR 20100CT 20100FCT 20100BCT 20100DCT |
MBR 20150CT 20150FCT 20150BCT 20150DCT |
MBR 20200CT 20200FCT 20200BCT 20200DCT |
UNIT | |
| Maximum forward voltage per leg at IF=10A |
VF | 0.65 | 0.75 | 0.85 | 0.92 | V | |||
| Maximum average reverse TJ=25°C current at rated DC blocking TJ=125°C voltage | IR | 0.10 15 |
0.01 5 |
mA | |||||
