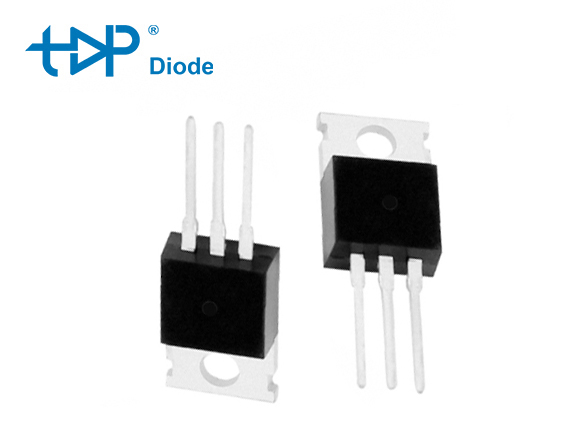

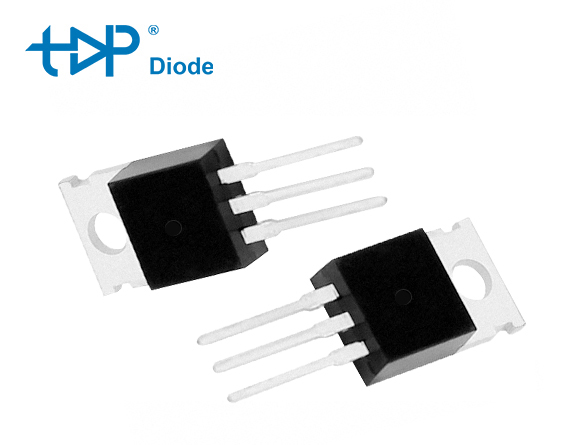

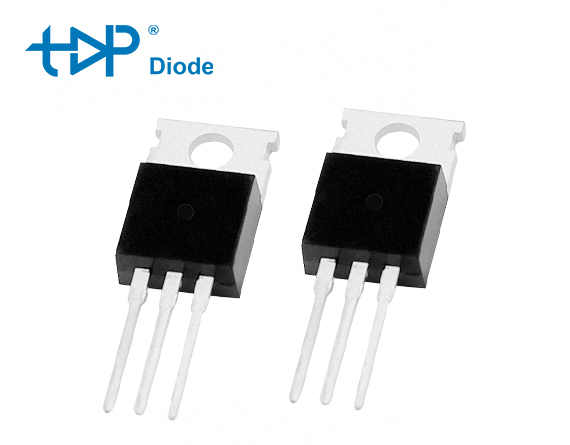

Topdiode T04 4A TRIACs is a great alternative offer for WeEn BTA204
- Glass Passivated Junctions
- High voltage and surge capability
- Low Thermal Resistance and Durability
- Triggering in three quadrants
T04 4A TRIACs Description - Topdiode
Topdiode T04 4A TRIACs balances the requirements of commutation performance and gate sensitivity and is intended for interfacing with low power drivers and logic ICs including microcontrollers. technology for improved noise immunity, direct triggering from low power drivers and logic ICs, high blocking voltage capability, high commutation capability, planar passivated for voltage ruggedness and reliability. Typical applications include AC solenoids, general-purpose motor control, and home appliances.
Topdiode T04 4A TRIACs is a great alternative offer for WeEn BTA204

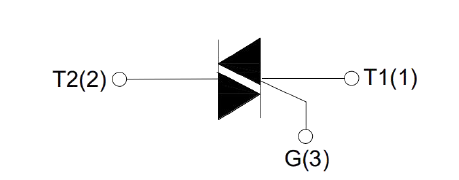

Topdiode T04 4A TRIACs DATA
- Tab
VD/VR:600/800V
IT(RMS):4A
IGT :05 to50mA
ValueUnit
| Parameter | |||||||||||||
| Storage junctiontemperature range | -40~150 | ℃ | |||||||||||
| Operating junction temperature range | -40~150 | ℃ | |||||||||||
| Repetitive peak off-state voltage (T =25℃) | 600/800 | V | |||||||||||
| Repetitive peak reverse voltage (T =25℃) | 600/800 | V | |||||||||||
| RMS on-state current | TO-220B(TC=95℃) | 4 | A | ||||||||||
| TO-220F(TC=80℃) | |||||||||||||
| TO-251/TO-252(TC=86℃) | |||||||||||||
| SOT-223 (TC=70℃) | |||||||||||||
| Non repetitive surge peak on-state current (full cycle, F=50Hz) |
40 | A | |||||||||||
| I2t value for fusing (tp=10ms) | 8 | A2S | |||||||||||
| Critical rate of rise of on-state current(I =2×IGT) | 50 | A/μS | |||||||||||
| Peak gate current | 4 | A | |||||||||||
| Peakgate power dissipation | 5 | W | |||||||||||
| Average gate power dissipation | 1 | W | |||||||||||
