Topdiode T1210-6A TRIACs is a nice alternative offer to Littelfuse Q6012LH2
- Glass Passivated Junctions
- High voltage and surge capability
- Low Thermal Resistance and Durability
- Triggering in three quadrants

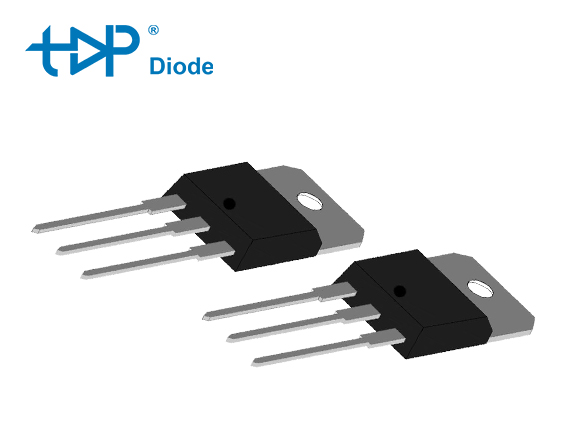

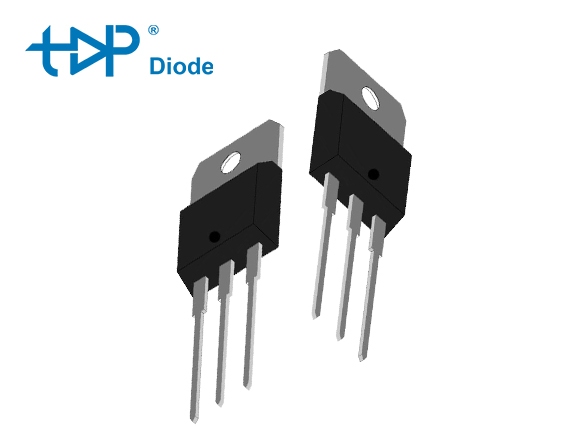

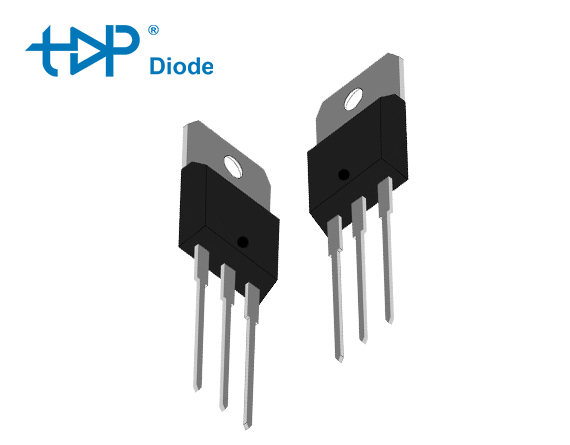

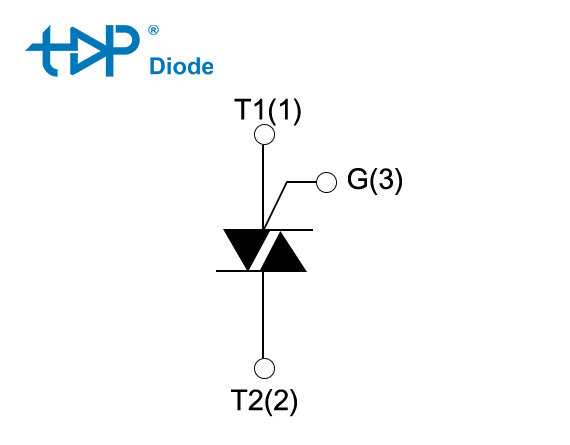

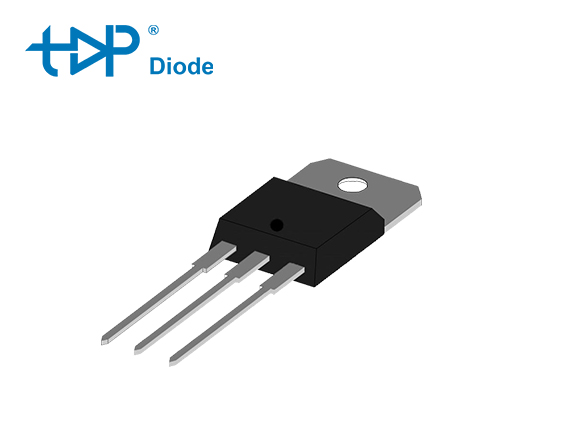

TRIACs 12A 600V T1210-6A - Topdiode
Topdiode T1210-6A TRIACs series is available either in through-hole or surface-mount, T12 12A series is suitable for general purpose AC switching, due to high commutation performances, it’s specially recommended for use on inductive loads
Topdiode T1210-6A TRIACs is a nice alternative offer to Littelfuse Q6012LH2
TRIACs 12A 600V T1210-6A - Topdiode DATA
- Tab
| Parameter | Symbol | Value | Unit | ||
| Storage junction temperature range | Tstg | -40~150 | °C | ||
| Operating junction temperature range | Tj | -40~150 | °C | ||
| Repetitive peak off-state voltage (T=25°C) | VDRM | 600/800/1200 | V | ||
| Repetitive peak reverse voltage (T=25°C) | VRRM | 600/800/1200 | V | ||
| RMS on-state current | TO-220A(TC=90°C) | IT(RMS) | 12 | A | |
| TO-220B/TO-220C(TC=105°C) | |||||
| TO-220F(TC=79°C) | |||||
| TO-263(TC=115°C) | |||||
| Non repetitive surge peak on-state current (full cycle, F=50Hz) |
ITSM | 120 | A | ||
| I2t value for fusing (tp=10ms) | I2t | 72 | A2S | ||
| Critical rate of rise of on-state current(I =2×IGT) | di/dt | 50 | A/μS | ||
| Peak gate current | IGM | 4 | A | ||
| Peakgate power dissipation | PGM | 5 | W | ||
| Average gate power dissipation | PG(AV) | 1 | W | ||
