A Reliable Alternative to ON Semiconductor RURG80100 Ultrafast Rectifier Diode

DSE80H12P Replacement for RURG80100

As supply chain challenges, rising costs, and product lifecycle changes continue to affect the electronics industry, engineers and purchasing managers are increasingly searching for reliable alternatives to well-known semiconductor devices. One common inquiry is whether the Topdiode DSE80H12P can serve as a replacement for the ON Semiconductor RURG80100 ultrafast rectifier diode.

The answer is yes. In many high-power switching applications, the DSE80H12P offers excellent electrical performance, robust reliability, and a cost-effective solution for customers seeking an alternative source.



Overview of DSE80H12P

The Topdiode DSE80H12P is a high-performance ultrafast recovery diode designed for demanding power conversion applications. It utilizes advanced EPI wafer technology to achieve low forward voltage drop and soft recovery characteristics, helping engineers improve efficiency while reducing switching losses.

Key features include:

• Maximum Repetitive Reverse Voltage (VRRM): 1200V
• Average Forward Current (IF(AV)): 80A
• Peak Surge Current (IFSM): 600A
• Ultrafast Recovery Technology
• Soft Recovery Characteristics
• Low Forward Voltage Drop
• Operating Junction Temperature: -55°C to +175°C

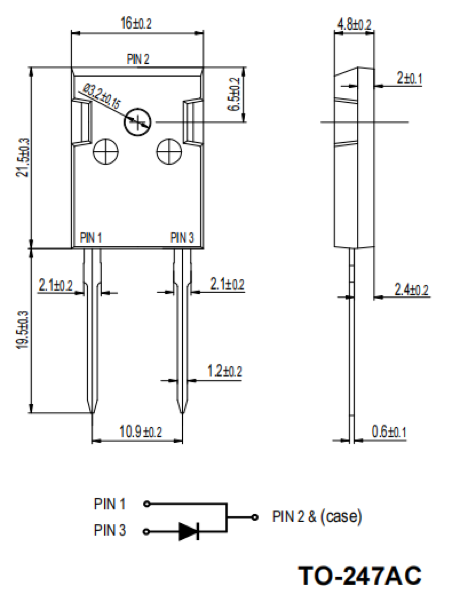

• TO-247AC Package
• RoHS Compliant

These characteristics make the DSE80H12P suitable for high-frequency switching systems, power factor correction (PFC) circuits, industrial power supplies, renewable energy equipment, and welding systems.

Comparison: DSE80H12P vs. ON Semiconductor RURG80100

When evaluating a replacement diode, engineers typically focus on voltage rating, current capability, recovery performance, thermal characteristics, and package compatibility.

Voltage Capability

The DSE80H12P offers a 1200V reverse voltage rating, providing additional design margin in applications exposed to voltage transients and harsh operating environments. This higher voltage capability can improve system robustness compared with lower-voltage alternatives.

Current Handling

With an average forward current rating of 80A, the DSE80H12P is well suited for high-power applications where reliable current conduction is essential.

Ultrafast Recovery Performance

Fast recovery is critical in modern switching power supplies and PFC circuits. The DSE80H12P features ultrafast recovery behavior and soft switching characteristics, helping to:

• Reduce switching losses
• Lower EMI generation
• Improve overall converter efficiency
• Minimize stress on switching devices

Thermal Reliability

Power electronics often operate in elevated temperature environments. The DSE80H12P supports junction temperatures up to 175°C, allowing reliable operation in industrial and automotive-grade applications where thermal performance is critical.

Typical Applications

The DSE80H12P is commonly used in:

Power Factor Correction (PFC)

Both Continuous Conduction Mode (CCM) and Discontinuous Conduction Mode (DCM) PFC circuits benefit from the diode’s low loss and fast recovery characteristics.

Switching Power Supplies

High-frequency SMPS designs require rectifiers capable of minimizing reverse recovery losses while maintaining reliable operation under dynamic load conditions.

Solar Inverters

Renewable energy systems demand efficient power conversion and long-term reliability. The DSE80H12P is suitable for inverter rectification and freewheeling applications.

Industrial Motor Drives

Variable frequency drives and industrial control systems often require robust ultrafast diodes capable of handling high surge currents and elevated operating temperatures.

Welding Equipment

The high current capability and rugged construction of the DSE80H12P make it suitable for industrial welding power supplies.

Benefits of Choosing Topdiode

Stable Supply Chain

Many OEMs and distributors are seeking alternative sources to reduce dependence on a single semiconductor manufacturer. Topdiode provides a reliable supply chain solution for long-term production requirements.

Competitive Pricing

Compared with premium-brand devices, Topdiode products offer attractive cost-performance advantages while maintaining strict quality standards.

Engineering Support

Topdiode provides technical assistance for cross-referencing, qualification testing, and application evaluation, helping customers accelerate their design verification process.

Consistent Quality

All products undergo rigorous electrical testing and quality control procedures to ensure performance consistency and reliability.

Qualification Recommendations

Before replacing any power semiconductor in a production environment, engineers should perform standard qualification testing, including:

• Electrical parameter verification
• Thermal performance evaluation
• Reverse recovery testing
• EMI assessment
• Long-term reliability testing

This ensures compatibility with the specific application and operating conditions.

For engineers and sourcing professionals looking for an alternative to the ON Semiconductor RURG80100, the Topdiode DSE80H12P provides a reliable and cost-effective solution. With its 1200V voltage rating, 80A current capability, ultrafast recovery performance, low forward voltage characteristics, and robust thermal reliability, it is well suited for modern power conversion systems.

Whether used in PFC circuits, switching power supplies, solar inverters, industrial drives, or welding equipment, the DSE80H12P delivers the performance and reliability required by today’s demanding applications.

For datasheets, samples, pricing, or technical support regarding DSE80H12P replacement projects, contact the Topdiode engineering team today.
