Topdiode Fred Rectifiers 30A DSE30U06
What is a Fred Rectifiers
A FRED (Fast Recovery Epitaxial Diode) rectifier is an electronic semiconductor device designed for high-speed switching and power efficiency, specifically used to convert alternating current (AC) to direct current (DC). They are known for rapid reverse recovery time , low forward voltage drop and low power loss
Key Characteristics & Benefits:
Rapid Switching: FREDs, can switch from conducting to non-conducting states extremely fast, reducing power losses in high-frequency circuits.
Low Losses: They combine low with low reverse leakage current to enhance efficiency in high-power applications.
High Power Handling: Often used in high-frequency, high-current environments up to 600V or more.
Structure: They utilize PIN diode structures with thin base regions to achieve high reverse breakdown voltages while maintaining fast recovery
Common Applications
Power Electronics: Used in Switchmode Power Supplies (SMPS), server power, and telecom supplies.
Automotive: AEC-Q101 qualified FRED Pt rectifiers are used in electric vehicle (EV) battery charging stations.
Converters & Inverters: Essential for soft-switched and resonant converters and solar inverters.
Industrial Equipment: Used in motor drives, welding equipment, and induction heating
Package
D2PAK / TO-220: Common power packages.
DFN6546A: Modern, small-footprint surface-mount

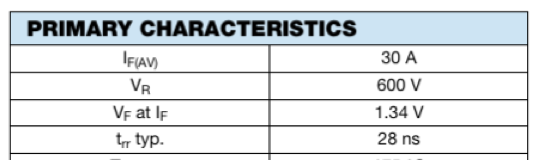

Features of Vishay VS-30ETH06-1-M3 Hyperfast Rectifier, 30 A FRED
Hyperfast recovery time
Low forward voltage drop
Low leakage current
125 °C operating junction temperature

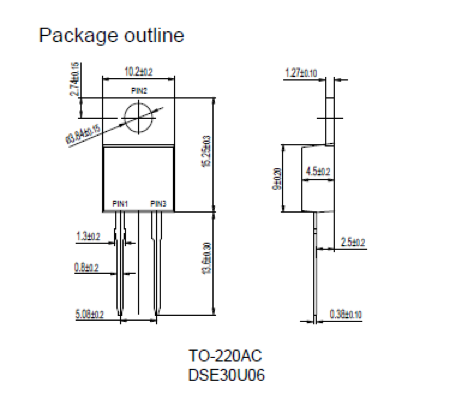

Topdiode DSE30U06 as a perfect replacement for Vishay VS-30ETH06-1-M3 Hyperfast Rectifier, 30 A FRED
* Features
* EPI wafer
* Low VF and soft recovery characteristic
* Low power loss
* Low leakage current
* For PFC(DCM/CCM) operation
* Lead free in compliance with EU RoHS

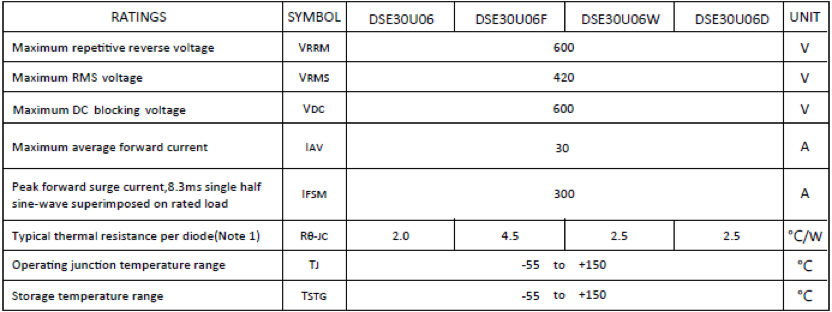

MAXIMUM RATINGS(TA=25℃) for Topdiode DSE30U06

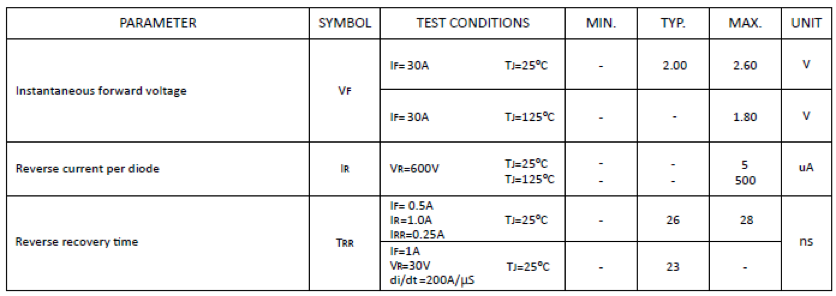

ELECTRICAL CHARACTERISTICS for Topdiode DSE30U06
