Topdiode TP1117MK 1A LOW DROPOUT POSITIVE VOLTAGE REGULATOR
A low drop positive voltage regulator (LDO) is a linear regulator that maintains stable, low-noise output voltage while operating with a minimal input-to-output differential, often below 1V Ideal for battery-powered devices to minimize heat and maximize efficiency
Key Features and Benefits
* Low Dropout Voltage: Operates efficiently even when input voltage is just slightly higher than the output
* Efficiency: Minimizes power dissipation, making it suitable for portable electronics.
* Minimal Components: Usually requires only small input and output capacitors for stability.
* Low Noise: Provides cleaner, lower-noise output compared to switching regulators.
* Types: Available in fixed and adjustable versions
Common Applications
- Battery Management:Extends runtime in portable devices.
- Consumer/Industrial:Used in consumer electronics and handheld equipment.
- Microcontroller Power:Often used with FPGAs, MCUs, and DSPs
These regulators are critical in systems needing efficient power conversion where the input voltage is close to the desired output

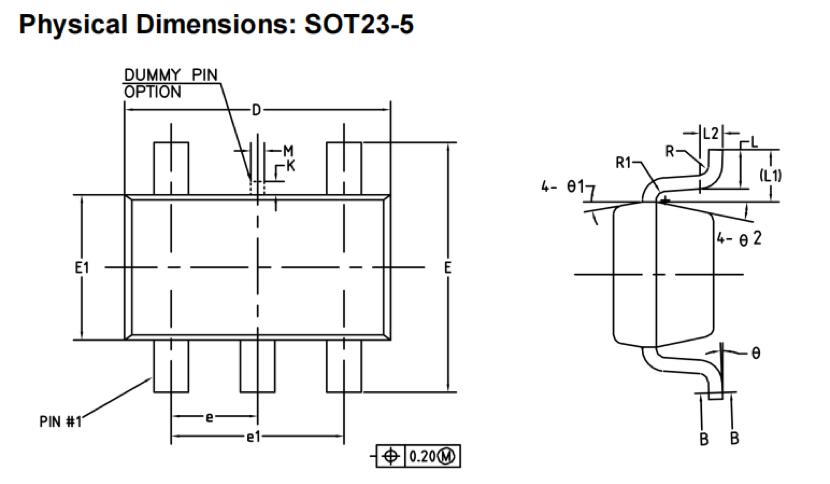

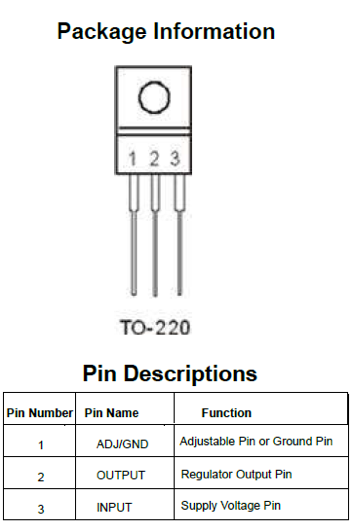

Topdiode TP1117MK series of positive adjustable and fixed regulators is designed to provide 1A with high efficiency.
Descriptions of Topdiode TP1117MK low drop positive voltage regulator
* The TP1117MK series of positive adjustable and fixed regulators is designed to provide 1A with high efficiency.
* All the internal circuitry is designed to operate down to 1.4V input-to-output differential.
* On-chip trimming adjusts the reference voltage to 1%.
* The typical current limit value of 1.5A allows the stress on both the regulator and the power source circuitry to be minimized under overload conditions.
Features of Topdiode TP1117MK low drop positive voltage regulator
- Adjustable or fixed output
- Output current of 1A
- Low dropout – 1.3V typ. at 1A output current
- 0.04% line regulation
- 0.2 % load regulation
- 100% thermal limit burn-in
- Fast transient response
. TP1117MK can operate using MLCCs in the capacitance range of 2UF to 10UF
Typical Applications Circuit of TP1117MK low drop positive voltage regulator
A low-dropout (LDO) positive voltage regulator is a linear DC regulator that maintains a stable output voltage even when the input voltage is very close to the output, offering advantages like low noise, high efficiency in low-voltage differentials, minimal component count, and small, compact footprints, making them ideal for battery-powered, sensitive analog/RF circuits, and space-constrained applications
